Sectional Organic Tempered Frosted Glass Panel Garage Doors

Sectional Organic Tempered Frosted Glass Panel Garage Doors
Sectional Organic Tempered Frosted Glass Panel Garage Doors
video play

Large Image :  Sectional Organic Tempered Frosted Glass Panel Garage Doors

Product Details:
Place of Origin: China
Brand Name: Wuzuan
Model Number: TOSGD-0025
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 300pcs per month
Detailed Product Description
Panel Material: Tempered Glass, Polycarbonate Sheet, Acrylic Panel Frame Material: Aluminium Alloy
Guide Rail Material: Galvanized Steel Special Function: Thermal Insulated
Range Of Use: Factory, Garage, 4S Shop, Car Store Size: Customized
Open Style: With Remote Control , Automatic Frame Color: White, Black, Gray, Brown, Deep Red, Blue Or Customized
Panel Color: Full Clear Surface Finishing: Finished
Panel Length: 2-11.8m Or Customized Panel Width: 420mm - 610mm Or Customized
Thickness Of Garage Door Panel: 0.326mm,0.376mm,0.426mm, 0.476mm Motor: Avanti, Foresee Or Others
Motor Rail: 3.0 - 4.5m Rail Type: Chain / Belt
Standard Equipment: 2 Transmitters, Steel Guide And Mounting Brackets Limit Setting: Electronic
Options: Wall Switch, Photocell, Wireless Pin Code Lock, Thermal Insulation: 1.9W/(Sqm.K)
Transport Package: Plywood Case Or Cardboard Or As Your Request. HS Code: 73083000
High Light:

Tempered Glass Panel Garage Doors


Organic Glass Sectional Garage Door


Frosted Glass Sectional Garage Door

Organic / Tempered / Frosted Glass Aluminum Sectional Glass Panel Garage Door

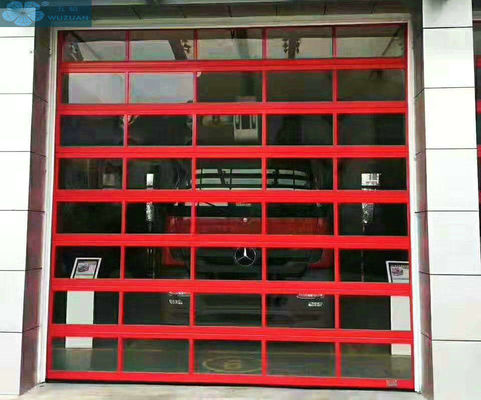

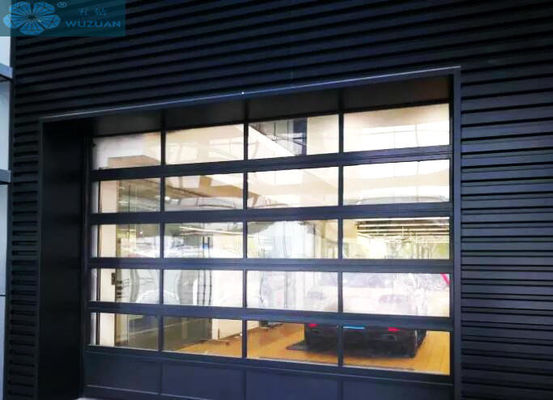

The transparent overhead sliding garage doors are widely used in various modern industrial factory, auto 4S shops and other places, with beautiful appearance, smooth opening, safe and reliable, low noise, high density, good sealing and thermal insulation performance, saving installation space and improve the production efficiency and other notable features, iit give us bright and pleasant environment, the largest viewing area and modern appearance.

It is made of double layer high quality hot dip galvanized steel sheet and imported polyurethane energy saving material,according to the size of the door and the need for flexible choice, the door plate don't have the steel reinforced backplane.Part of the door: combinate a new type of aluminum alloy with the high quality German material polycarbonate PC board .Not only let the industrial buildings and commercial buildings have a beautiful appearance, but also to adapt to various types of high roof lift.




Color The standard color of the electric sliding door is white, and it can be used in many other colors
Balance system External torsion spring system of the electric sliding door can work more than 30000 working cycles.
Sealing of the door The U shaped rubber sealing strip at the bottom is perfect combined with the door panel through the the high quality aluminum material It have the vinyl resin wear-resistant seal on both side and top,ensure the integrity of the seal, dust-proof waterproof infiltration, effective energy consumption.
Channel door (optional) High quality strength alumina, dark type integral hinge ensure the appearance and long Department of the door body deformation, surrounded by imported sealing strips, sealing, anti friction, noise reduction, door width 750mm-900mm,door height 1800mm-2100mm, Can equipped with double handle and door closer.
The observation window (optional) The electric sliding door is equipped with oval or rectangle. The double layer organic glass is combined with the high performance rubber window frame. It is strong and beautiful.Lighting and insulation performance is good.


Technical data
Max dimension W12000mm,H8000mm.
Opening and closing speed 20cm-40cm/s
Power supply 220V±10%V,50/60HZ or 380V±10%V,50/60HZ
Door panel thickness 40mm/50mm/Back rib door
Optional Transparent Material Polaycarbonate glass,Tempered Glass
Wind resistence Beaufort scale11grade, 28m/s
Sound insulation level <=60dB
Insulation level:: 1.5 W/m°C
Water tightness 30 Pa
Thermal Conductivity ≤0.033W/m.k
Main Features: a.UV proof 抗UV
b.Impact-resistance and buglar resistance
Balance System a.Balance the weight of door through the torsion spring
b.Easily manual operation
c.Reduce motor load greatly
d.Prolong the service life of the motor
Safety device: Airbag protection, door anti-fall device, wire rope anti-break protection device


High quality aluminum alloy material
the German raw materials poly-carbonate PC board
PC board Thickness 3mm-5mm
Excellent UV resistance
Impact resistance is 100 times than glass
Motor remote control operation
Multiple safety protection device
Highlight architectural tast



Why Choose Us?

Over the years, our company has been working with the well-known manufacturers work closely with gated, has introduced the latest and most sophisticated production equipment of various volumes gate. The use of superior Quality raw materials and high-quality components, and adhere to the " excellence, precision production" product concept, to ensure the production of a variety of beautiful rolling door products Generous, easy operation, security, security, durability, quality assurance. We spirit of "honesty, quality first, customer first, service leader," the case Purpose, passion for the community to provide the safest customers the best a variety of roll gates, but also provide comprehensive maintenance service.

Customers satisfaction is our eternal goal. We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.


F A Q :

1. Are you trading company or manufacturer ?

A: We are factory.
2. What's the payment details?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
3. What's the delivery time?
For common order, about 15 days only.
4. What about the warranty for the doors?
We provide 12 months warranty for all doors and accessories.
5. Do you provide OEM Service?
Yes. OEM & ODM Service is ok for us.
6. What's the MOQ?
We accept 1 set as sample order.
7. How about the package?
Plywood case, suitable for sea freight or air freight, as your request.
