0.3m/S 1.5kw Automatic Roller Shutter Garage Doors

0.3m/S 1.5kw Automatic Roller Shutter Garage Doors
0.3m/S 1.5kw Automatic Roller Shutter Garage Doors 0.3m/S 1.5kw Automatic Roller Shutter Garage Doors 0.3m/S 1.5kw Automatic Roller Shutter Garage Doors 0.3m/S 1.5kw Automatic Roller Shutter Garage Doors

Large Image :  0.3m/S 1.5kw Automatic Roller Shutter Garage Doors

Product Details:
Place of Origin: China
Brand Name: Wuzuan
Model Number: HSSD-00016
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: wood case or strong paper carton
Delivery Time: 7-15days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 500sets per month
Detailed Product Description
Type: Stacking Open Style: Stacking
Opening Type: With Remote Control Special Function: Insect Prevention+Dust Prevention
Color: Yellow,Orange,Red,Grey,Blue,Green Or Customized Position: Industrial,Warehouse,Garage, Exterior, Interior,Room,
Surface Finishing: Finished Motor: German Sew / China Sej / Or Customized
Control Panel: Can Be Optional Command System: Radar Sensor, Magnetic Loop , Remote Control,
Normal Working: -35 To 65 Celsius Degree Standard Motor Position: Left Or Right
Installation Base: Concrete,Panel, Brick,Steel Structure. Safety Device: Photocell Sensor
Door Frame Structure: 2.0 Mm Galvanized Steel / 304 Stainless Sheet Wind Resistance: Class 12
Transport Package: Plywood Case Or Cardboard, As Your Request. Specification: Effective Max Size: W10m X H10 M
Origin: Dongguan, China HS Code: 73083000
High Light:

1.5kw automatic roller shutter garage doors

,

0.3m/s automatic roller shutter garage doors

,

0.3m/s commercial security shutters

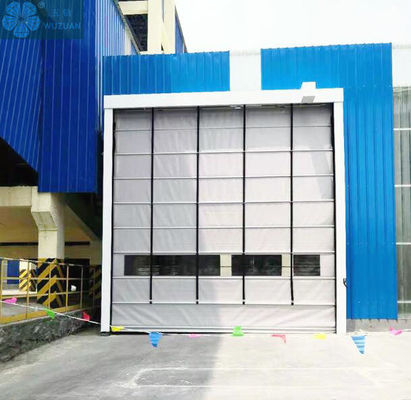

Wind Resistance PVC Fast High Speed Stacking Folding Door With Aluminum Rod



PVC stacked industrial fast door adopts folding lifting method and multiple built-in horizontal anti-wind levers. Its wind pressure can be evenly distributed on the whole curtain. Its anti-wind performance is much higher than that of ordinary drum-type high speed doors, especially suitable for logistics channels and The large area of the hole, plug-in curtains are easier to remove and more convenient to maintain.



Features:
This door is with excellent wind-resistant performance, fit for areas with big wind pressure and door hole sizes. Several
high-strength aluminum rod is used to connect PVC fabric as a whole. When faced with big wind, such rods will offer big
support. Special belt structure is adopted to lift door up and down by revolving roller.
The advantage of Self Reparing High Speed Doors are self-reparing,easy to clean,complete safe,energy saving and so on.
If the door curtain comes out of its guides(for example in the event of impact with a forklift),the system will reset the cutrain back intp the guide during the next opening cycle autimatically

Motor System:
Power Supply: 0.75kw, 1.5kw, 2.2kw
The incremental encoder mounted is attached to the end of the drum shaft.

Self-Repairing Door Curtain:
Made of reinforced PVC, with flexible weighted soft bottom edge.
The edge of curtain has continuous injection molded teeth that then move up and down in a self-lubricating polyethylene track attached to structural galvanized side frames.



Opening Way
Forklift cross --Magnetic loop with push button
People cross --Radar sensor with push button
Photocell sensor/Airbag to avoid hurt people when the door closing and someone cross.



Technical Data:

Door curtain Various cladding material for options:
a.Plastic polyester fiber with PVC/PU/Silicone rubber/PolyYaan ester coating
b.Resistance to low temperature curtain for -45ºC environment
c.Soundproof door curtain for environment that need to be reduced or isolated from noise
d.Heat preservation curtain for environment that prevent thermal radiation or chemical damage
e.Safety curtain is for higher environmental safety requirement
Door Keel Aluminum profile installed in the middle of door curtain to strengthen support
Guide Rail Material: Aluminum
Sealing design of the inner and outer surface of guide rail
Thickness of Door 100-160mm
Thickness of Curtain 0.8+0.8mm
Running Speed 0.2~0.3m/s
Running Temperature -35ºC to +70ºC
Driving System Motor and gearbox,220V/380V 50Hz, power:1.6-3.7kW
Control System Control box with PLC:The running of the door can be achieved by pressing the button on the control box or using the radar or magnet ring control with optional controls
Optional Control Radar,magnet ring,remote control,stretching wire switch,controller button,Interlocking
Hoisting System The lifting belt around the pulley is connected with the safety clamp along the vertical track. The pulley is mounted on the brake reducer.
Waterproof Permeability 3 level, EN12425 (door closed state)
Wind Resistance 3-5 grade,EN 12424 varies according to the size of the door
Air Tightness 2grade,EN12426
Sealing Bottom, side and top seal
Safety Safety Photo Sensor
Proximity Sensor
sound-light alarm system
Accident-fall arrester safety system
