Transparent 220V 40mm Sliding Glass Garage Doors

China Dongguan Hengtaichang Intelligent Door Control Technology Co., Ltd. certification
China Dongguan Hengtaichang Intelligent Door Control Technology Co., Ltd. certification
I'm Online Chat Now

Transparent 220V 40mm Sliding Glass Garage Doors

Transparent 220V 40mm Sliding Glass Garage Doors
Transparent 220V 40mm Sliding Glass Garage Doors
video play

Large Image :  Transparent 220V 40mm Sliding Glass Garage Doors

Product Details:
Place of Origin: China
Brand Name: Wuzuan
Model Number: TOSGD-0016
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 300pcs per month
Detailed Product Description
Panel Material: Tempered Glass, Polycarbonate Sheet, Acrylic Panel Frame Material: Aluminium Alloy
Guide Rail Material: Galvanized Steel Special Function: Thermal Insulated
Range Of Use: Factory, Garage, 4S Shop, Car Store Size: Customized
Open Style: With Remote Control , Automatic Frame Color: White, Black, Gray, Brown, Deep Red, Blue Or Customized
Panel Color: Full Clear Surface Finishing: Finished
Panel Length: 2-11.8m Or Customized Panel Width: 420mm - 610mm Or Customized
Thickness Of Garage Door Panel: 0.326mm,0.376mm,0.426mm, 0.476mm Motor: Avanti, Foresee Or Others
Motor Rail: 3.0 - 4.5m Rail Type: Chain / Belt
Standard Equipment: 2 Transmitters, Steel Guide And Mounting Brackets Limit Setting: Electronic
Options: Wall Switch, Photocell, Wireless Pin Code Lock, Thermal Insulation: 1.9W/(Sqm.K)
Transport Package: Plywood Case Or Cardboard Or As Your Request. HS Code: 73083000
High Light:

220V Sliding Glass Garage Doors

,

40mm Sliding Glass Garage Doors

,

40mm glass front garage doors

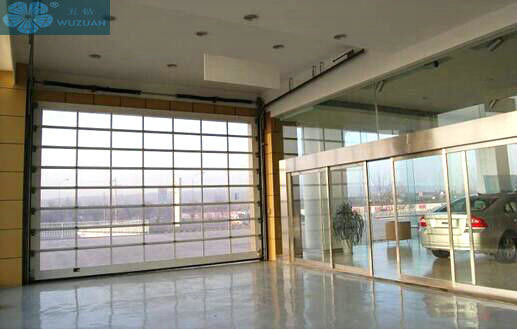

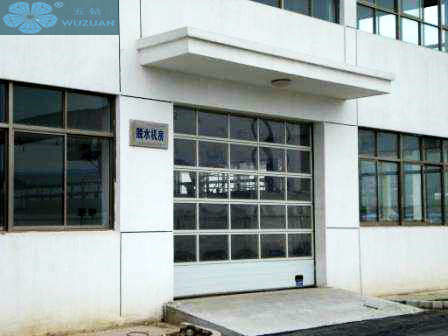

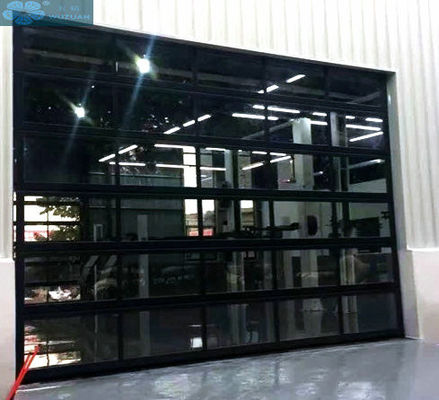

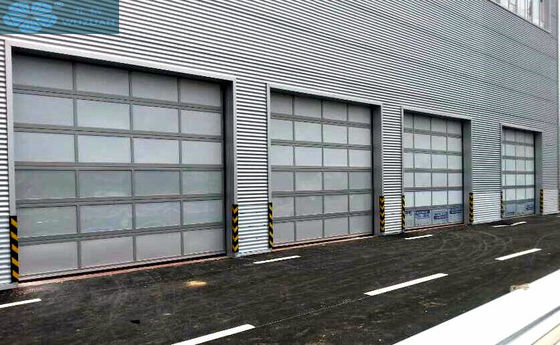

Transparent Polycarbonate PC Or Glass Plate Sectional Overhead Sliding Garage Door



Clear overhead sectional sliding door is Slide-running design. Door panels are connected end to end through C-type rails.
Whole door body can bend flexibly and slide along guide rails with different bending shapes. It can be fit onto various
kinds of door holes. Thus, it is very widely used in all kinds of factories, logistics warehouse, and garages.



Main Features:
Transparent,Automatic,security,heat preservation,torsion spring balance system.

Application Scope:
The industrial sectional door is applied to the outdoor passage,auto 4S shops and other external door of factory.

Door panel:
(1) can also be made into a full-view full door panel
(2) Aluminum frames can be selected according to the building's selection of a variety of standard colors.
(3) Door frame: aluminum profile, profile specification can be selected by the size and wind resistance of the door panel.
Wood and a variety of profiles that are resistant to the grip.
(4) Transparent plate: It adopts German raw material polycarbonate pc board with thickness of 3mm-5mm. It can be selected according to the width of the door and the width of the window. It has excellent UV resistance and its impact resistance is 100 for tempered glass.

Product Information:

PC Garage Door
Glass/Polycarbonate Sectional Garage Door
Operation
Automatic Motor, Manual, or Hand Chain
Construction
Natural Anodized Aluminum Frame with Glass Panel
Material
Anodize Aluminum (UV-Proof), Polycarbonate Panels
Thickness
Section Thickness: 40/50mm, Glass thickness: 5mm~9mm (Clear or Frosted)
Seals
Thermal Break, Header Seal, Section Joint Seal, Bottom Seal
Automatic Openner
110/120V or 220/230V 600N/800N/1000N/1200N
Features
UV-proof, Emergency Lock for Manual Operation when Power Off.



Why Choose Us?


Over the years, our company has been working with the well-known manufacturers work closely with gated, has introduced the latest and most sophisticated production equipment of various volumes gate. The use of superior Quality raw materials and high-quality components, and adhere to the " excellence, precision production" product concept, to ensure the production of a variety of beautiful rolling door products Generous, easy operation, security, security, durability, quality assurance. We spirit of "honesty, quality first, customer first, service leader," the case Purpose, passion for the community to provide the safest customers the best a variety of roll gates, but also provide comprehensive maintenance service.

Customers satisfaction is our eternal goal. We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.





F A Q :


1,Are you trading company or manufacturer ?

A: We are factory.
2. What's the payment details?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
3. What's the delivery time?
For common order, about 15 days only.
4. What about the warranty for the doors?
We provide 12 months warranty for all doors and accessories.
5. Do you provide OEM Service?
Yes. OEM & ODM Service is ok for us.
6. What's the MOQ?
We accept 1 set as sample order.
7. How about the package?
Plywood case, suitable for sea freight or air freight, as your request.
