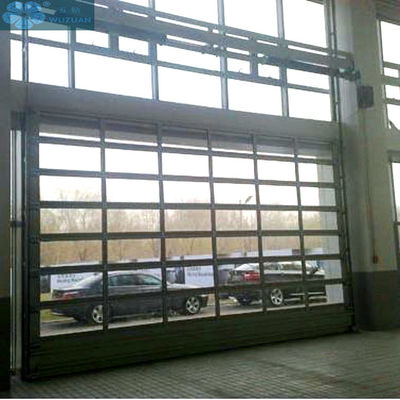

Commercial Sectional Storefront Contemporary Glass Garage Door OEM

Commercial Sectional Storefront Contemporary Glass Garage Door OEM

Commercial Sectional Storefront Contemporary Glass Garage Door OEM
Commercial Sectional Storefront Contemporary Glass Garage Door OEM
video play

Large Image :  Commercial Sectional Storefront Contemporary Glass Garage Door OEM Get Best Price

Product Details:
Place of Origin: China
Brand Name: Wuzuan
Model Number: TOSGD-0024
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 300pcs per month
Detailed Product Description
Panel Material: Tempered Glass, Polycarbonate Sheet, Acrylic Panel Frame Material: Aluminium Alloy
Guide Rail Material: Galvanized Steel Special Function: Thermal Insulated
Range Of Use: Factory, Garage, 4S Shop, Car Store Size: Customized
Open Style: With Remote Control , Automatic Frame Color: White, Black, Gray, Brown, Deep Red, Blue Or Customized
Panel Color: Full Clear Surface Finishing: Finished
Panel Length: 2-11.8m Or Customized Panel Width: 420mm - 610mm Or Customized
Thickness Of Garage Door Panel: 0.326mm,0.376mm,0.426mm, 0.476mm Motor: Avanti, Foresee Or Others
Motor Rail: 3.0 - 4.5m Rail Type: Chain / Belt
Standard Equipment: 2 Transmitters, Steel Guide And Mounting Brackets Limit Setting: Electronic
Options: Wall Switch, Photocell, Wireless Pin Code Lock, Thermal Insulation: 1.9W/(Sqm.K)
Transport Package: Plywood Case Or Cardboard Or As Your Request. HS Code: 73083000
High Light:

Storefront Contemporary Glass Garage Door

,

OEM Contemporary Glass Garage Door

,

Storefront Commercial Sectional Garage Doors

Commercial Glass Panel Garage Door Storefront Door Contemporary Glass Garage Door



Transparent Overhead Sectional Door is one of most widely used industrial doors at present. Every factory can use such doors because its higher running speed, high operation frequency, good thermal insulation, and low maintenance,compared with tradtional roller doors.



Main Features:
Transparent,Automatic,security,heat preservation,torsion spring balance system.

Application Scope:
The industrial sectional door is applied to the outdoor passage,auto 4S shops and other external door of factory.

Technical Data:
Item Description
Mateiral Tempered Glass: Thickness : 5.0`6.0mm,Full view clear or frosted
Polycarbonate Glass: Thickness : 5.0mm~10mm,Full view clear or frosted
Other tempered Glass:Mirror glass,baking glass and so on
Thickness of Panel 40mm / 50mm
Width of Panel 430mm / 550mm
Thermal Insulation 1.5W/M² . K
Wind Resistance Beaufort scale 11, 28m/s
Noise Level: 60db
Lifting way Normal lift, High lift, Vertical lift
Speed 0.2-0.4m/s
Max Dimension 12m * 8m
Output Torque 1000N
Steel cord Flexible ,3.8mm
Power Supply 380V 50Hz / 220V 50Hz
Service Life 10 years
Emergency Operation Manual Hoist Chain
Main Features: a. UV proof
b. Impact-resistance and buglar resistance
c. All sections can be replaced easily
Balance System a. Balance the weight of door through the torsion spring
b. Easily manual operation
c. Reduce motor load greatly
d. Prolong the service life of the motor
Safety Airbag protection, door anti-fall device, wire rope anti-break protection device





Why Choose Us?


Over the years, our company has been working with the well-known manufacturers work closely with gated, has introduced the latest and most sophisticated production equipment of various volumes gate. The use of superior Quality raw materials and high-quality components, and adhere to the " excellence, precision production" product concept, to ensure the production of a variety of beautiful rolling door products Generous, easy operation, security, security, durability, quality assurance. We spirit of "honesty, quality first, customer first, service leader," the case Purpose, passion for the community to provide the safest customers the best a variety of roll gates, but also provide comprehensive maintenance service.

Customers satisfaction is our eternal goal. We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.





F A Q :


1. Are you trading company or manufacturer ?

A: We are factory.
2. What's the payment details?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
3. What's the delivery time?
For common order, about 15 days only.
4. What about the warranty for the doors?
We provide 12 months warranty for all doors and accessories.
5. Do you provide OEM Service?
Yes. OEM & ODM Service is ok for us.
6. What's the MOQ?
We accept 1 set as sample order.
7. How about the package?
Plywood case, suitable for sea freight or air freight, as your request.
