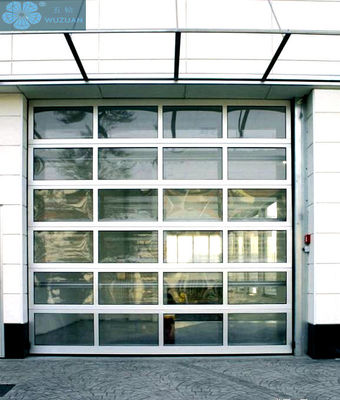

Residential Glass Sectional Garage Door 12000x8000mm

Residential Glass Sectional Garage Door 12000x8000mm

Residential Glass Sectional Garage Door 12000x8000mm
Residential Glass Sectional Garage Door 12000x8000mm
video play

Large Image :  Residential Glass Sectional Garage Door 12000x8000mm Get Best Price

Product Details:
Place of Origin: China
Brand Name: Wuzuan
Model Number: TOSGD-0022
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Packaging Details: polywood case
Delivery Time: 7-15 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 300pcs per month
Detailed Product Description
Panel Material: Tempered Glass, Polycarbonate Sheet, Acrylic Panel Frame Material: Aluminium Alloy
Guide Rail Material: Galvanized Steel Special Function: Thermal Insulated
Range Of Use: Factory, Garage, 4S Shop, Car Store Size: Customized
Open Style: With Remote Control , Automatic Frame Color: White, Black, Gray, Brown, Deep Red, Blue Or Customized
Panel Color: Full Clear Surface Finishing: Finished
Panel Length: 2-11.8m Or Customized Panel Width: 420mm - 610mm Or Customized
Thickness Of Garage Door Panel: 0.326mm,0.376mm,0.426mm, 0.476mm Motor: Avanti, Foresee Or Others
Motor Rail: 3.0 - 4.5m Rail Type: Chain / Belt
Standard Equipment: 2 Transmitters, Steel Guide And Mounting Brackets Limit Setting: Electronic
Options: Wall Switch, Photocell, Wireless Pin Code Lock, Thermal Insulation: 1.9W/(Sqm.K)
Transport Package: Plywood Case Or Cardboard Or As Your Request. HS Code: 73083000
High Light:

Residential Glass Sectional Garage Door

,

Glass Sectional Garage Door 12000x8000mm

,

Glass Residential Sectional Garage Door

Competitive Price Residential Automatic Aluminum Benefit Glass Sectional Garage Door

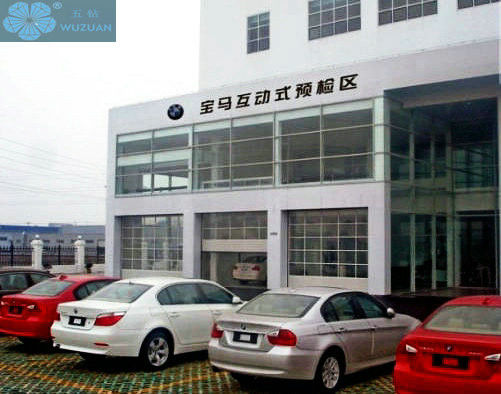

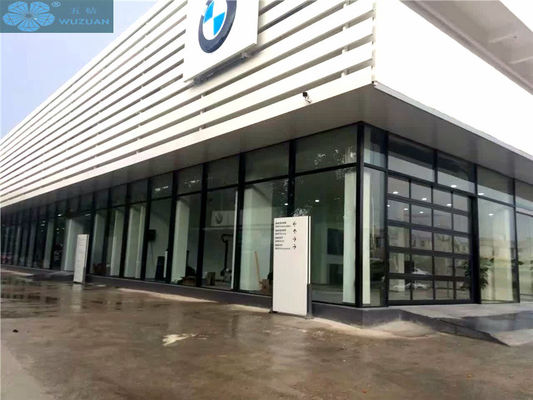

Full vision garage doors are ideal for restaurants, firehouses, service stations, and car dealerships; anywhere that exceptional visibility is desired. Whether you're looking for full or partial visibility, we have the product your business requires. We offer a variety of designs, track options, and finishes to guarantee a match for your business aesthetics.



Features:



1. The roller shutter door slat is super rigid, can withstand strong pressure.
2. Remote control roller shutter door with retractable mullion is mainly made of galvanized steel, motor, guide rail, retractable mullion and other parts
3. Made of single or double hot dip galvanized steel sheet, surface finished with powder coat, with strong anti-corrosion,
4. Strong wear-resisting abilities.
5. Roller shutter doors are Widely used in large workshops, hangar, shipyards, and other special occasions.
6. Colors for the roller shutter doors can be selected by the customer


Door panel:
(1) can also be made into a full-view full door panel
(2) Aluminum frames can be selected according to the building's selection of a variety of standard colors.
(3) Door frame: aluminum profile, profile specification can be selected by the size and wind resistance of the door panel.
Wood and a variety of profiles that are resistant to the grip.
(4) Transparent plate: It adopts German raw material polycarbonate pc board with thickness of 3mm-5mm. It can be selected according to the width of the door and the width of the window. It has excellent UV resistance and its impact resistance is 100 for tempered glass. Times.



The operation mode: According to the construction conditions, there are many options. standard 90 degree up-sliding type.
Powder Coated Guide Rail :The color can be customized as your requirement.
Powder Coated Quality accessories.

Automatic-manual dual operation mode:
When power is off or faulty, it can be turned on or off by manually operating the chain. The balanced torsion spring system counteracts most of the tension at the opening. It can be opened with a little force by hand (in the range of 180N) or easily opened with a hand chain.

Good safety performance (standard):
Bottom airbag: encounter obstacles during the descent, stop immediately and run upwards
Fall protection: In the event of an accident, the wire rope breaks and the bottom anti-drop device will hold the track tightly, preventing the door from falling.

Technical data:
Max dimension W12000mm,H8000mm.
Opening and closing speed 20cm-40cm/s
Power supply 220V±10%V,50/60HZ or 380V±10%V,50/60HZ
Door panel thickness 40mm/50mm/Back rib door
Optional Transparent Material Polaycarbonate glass,Tempered Glass
Wind resistence Beaufort scale11grade, 28m/s
Sound insulation level <=60dB
Insulation level:: 1.5 W/m°C
Water tightness 30 Pa
K valure 1.5w/M2.k
Thermal Conductivity ≤0.033W/m.k
Main Features: a. UV proof
b. Impact-resistance and buglar resistance
c. All sections can be replaced easily
Balance System a. Balance the weight of door through the torsion spring
b. Easily manual operation
c. Reduce motor load greatly
d. Prolong the service life of the motor
Safety device: Airbag protection, door anti-fall device, wire rope anti-break protection device



Why Choose Us?

Over the years, our company has been working with the well-known manufacturers work closely with gated, has introduced the latest and most sophisticated production equipment of various volumes gate. The use of superior Quality raw materials and high-quality components, and adhere to the " excellence, precision production" product concept, to ensure the production of a variety of beautiful rolling door products Generous, easy operation, security, security, durability, quality assurance. We spirit of "honesty, quality first, customer first, service leader," the case Purpose, passion for the community to provide the safest customers the best a variety of roll gates, but also provide comprehensive maintenance service.

Customers satisfaction is our eternal goal. We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.



F A Q :


1. Are you trading company or manufacturer ?

A: We are factory.
2. What's the payment details?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
3. What's the delivery time?
For common order, about 15 days only.
4. What about the warranty for the doors?
We provide 12 months warranty for all doors and accessories.
5. Do you provide OEM Service?
Yes. OEM & ODM Service is ok for us.
6. What's the MOQ?
We accept 1 set as sample order.
7. How about the package?
Plywood case, suitable for sea freight or air freight, as your request.
