Dongguan Hengtaichang Intelligent Door Control Technology Co., Ltd.
Home ProductsSectional Overhead Garage Door

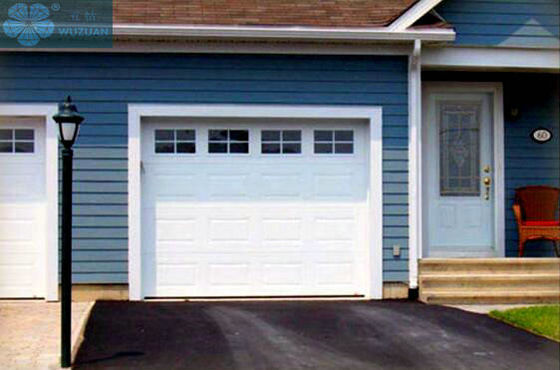

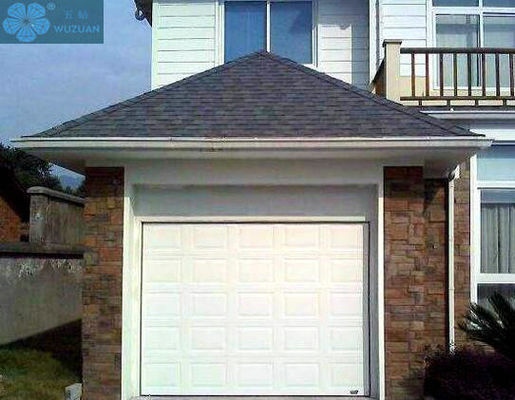

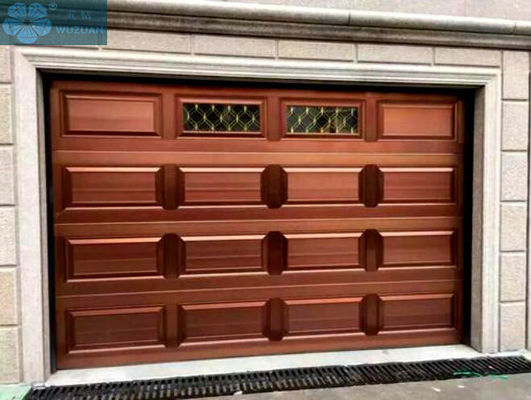

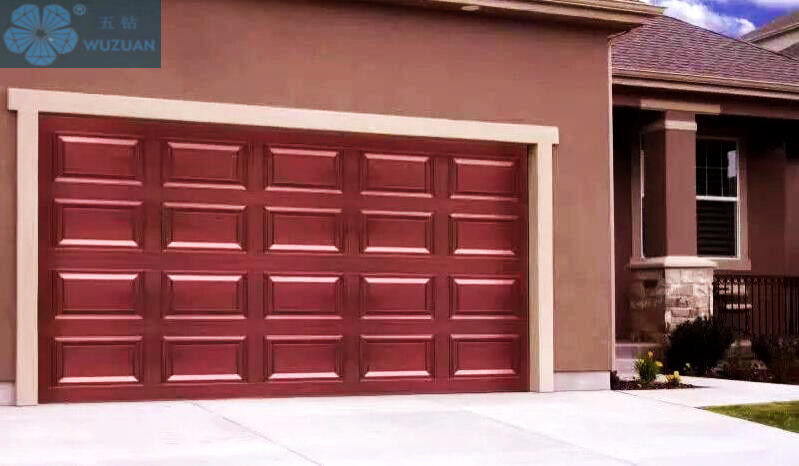

Electric Residential Overhead Sectional Garage Door 550mm

China Dongguan Hengtaichang Intelligent Door Control Technology Co., Ltd. certification
China Dongguan Hengtaichang Intelligent Door Control Technology Co., Ltd. certification
I'm Online Chat Now

Electric Residential Overhead Sectional Garage Door 550mm

Electric Residential Overhead Sectional Garage Door 550mm
Electric Residential Overhead Sectional Garage Door 550mm
video play

Large Image :  Electric Residential Overhead Sectional Garage Door 550mm

Product Details:
Place of Origin: China
Brand Name: Wuzuan
Model Number: SOSGD-00025
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Packaging Details: wood case or strong paper carton
Delivery Time: 7-15days
Payment Terms: T/T, Western Union, MoneyGram
Detailed Product Description
Material: Aluminum Or Galvanized Steel Foaming Material: Polyurethane
Foaming Process: Automatically Color: White,Cream, Wooden Grain,Bronze Or Customized
Opening: Roll Up Opening Way: Electric,Manual,Remote Control
OEM: Acceptable Size: Customized
Thickness Of Aluminum: 40mm/Custom Width Of Panel: 500mm/Custom
Application: Residential/Hotel/Office Building/Shop/Villa/etc Feature: High Durability/Heat Preservation/Thermal Insulation
Position: Garage Protection Class: IP55
Door Panel Pattern: Linear Door Panel Design: Finger-Protection Design
Bracket Thickness: 3.0mm Surface Finishing: Finished
Panel Width: 430-550mm, Adjusted Max Length Of Panel: 12m
Height: 435mm, 485mm, 535mm Or Customized Max Width: Maximum 6500mm
Total Thickness: 38mm Guide Rail Thickness: 2.0mm
Tracks: Single Track Or Double Track Output Torque: 1000N
Export Markets: Global Transport Package: Plywood Case Or Cardboard+pallets, As Your Request.
Handware: With All Handware HS Code: 73083000
High Light:

Residential Overhead Sectional Garage Door

,

Electric Overhead Sectional Garage Door

,

sectional roll up garage door 550mm

Electric Control Residential High Quality Overhead Sectional Garage Door



The density of the sectional overhead garage door panel is 40kg/m3,which could offer high thermal efficiency and sound insulation to your garage The thickness is 40mm,which make the garage door panel has excellent mechanical properties, the size is stable, even under low temperature the panels’ strength will not change; the panels’ long-term heat resistance temperatures are between -50℃-+100℃ .The External skins of our panel are PPGI steel which resist rust, and the stability of their painting colors meeting 25 -30 years using life.There are three kinds of surface texture : Wood grain, orange peel, and smooth.



It's ideal solution for following applications:
commercial shop
factory
warehouse
residential garage
club bars
etc.

Funtion:
safety and security
theftproof
heat insulation
weather resistant
rustproof
sound Insulation



Product Details:

Grain Wooden grain ,Orange peel, Smooth
Lighting windows As your request
Open Way Remote control/ Push Button/ Manual

Material : Sandwich panel, standard thickness for garage door is 40mm thick insulated panels - Other thickness supplying are 43mm, 50mm, and
75mm ; Inside foam has two choices: standard foam is PUR (polyurethane ) foam, at the same time PIR(polyisocyanurate,fire
retardant,oxygen index 26 ) foam is available too , CFC free
Panels' height : 450mm, 500mm, and 550mm
Panels' type : Finger protective design at panels' joints part - both outside and inside are safe
Panel Joint's feature : Rubber seal is placed at the joints - then the thermal efficiency will be perfect.
Our unique advantage : Two extra Reinforcement plates which are along full length of each panel are preburied into panels at the higes' installing
positions. So each screws will be hold tightly .
Panel surface treatment : More than 6 designs are supplying . Three different surface finish for your choice : Woodgrain finish, smooth finish and Suede finish
Long panel: The panels lengthes of each door are exactly the same ; and we can make long panels - 12 meters are no problem to our automatic and smart production line.



Why Choose Us?


Over the years, our company has been working with the well-known manufacturers work closely with gated, has introduced the latest and most sophisticated production equipment of various volumes gate. The use of superior Quality raw materials and high-quality components, and adhere to the " excellence, precision production" product concept, to ensure the production of a variety of beautiful rolling door products Generous, easy operation, security, security, durability, quality assurance. We spirit of "honesty, quality first, customer first, service leader," the case Purpose, passion for the community to provide the safest customers the best a variety of roll gates, but also provide comprehensive maintenance service.


Customers satisfaction is our eternal goal. We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.



F A Q :


1,Are you trading company or manufacturer ?

A: We are factory.
2. What's the payment details?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
3. What's the delivery time?
For common order, about 15 days only.
4. What about the warranty for the doors?
We provide 12 months warranty for all doors and accessories.
5. Do you provide OEM Service?
Yes. OEM & ODM Service is ok for us.
6. What's the MOQ?
We accept 1 set as sample order.
7. How about the package?
Plywood case, suitable for sea freight or air freight, as your request.
