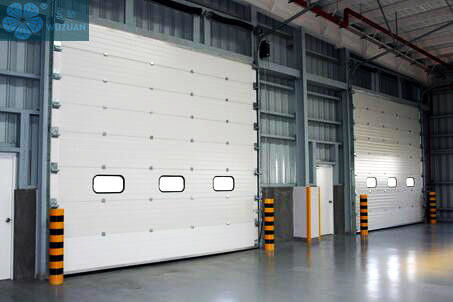

220V 130mm/S Automatic Industrial Overhead Door

220V 130mm/S Automatic Industrial Overhead Door
220V 130mm/S Automatic Industrial Overhead Door
video play

Large Image :  220V 130mm/S Automatic Industrial Overhead Door

Product Details:
Place of Origin: China
Brand Name: Wuzuan
Model Number: IOSD-0006
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Packaging Details: Polywood case or strong paper carton
Delivery Time: 7-15days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 300pcs per month
Detailed Product Description
Material: Galvanized Steel With PU Foaming Inside Color: White, Gray, Red, Blue, Natural Or Customized
Construction: Steel - Foam - Steel Sandwich Construction Galvanized Steel Thickness: 0.35mm / 0.45mm / 0.50mm
Panel Thickness: 40mm / 50mm Panel Height: 440mm - 550mm, Adjustable
Optional Component: Window & Pedestrian Gate Panel Width: 440-550mm, Can Be Adjust
Packing Details: Carton Paper + Pearl Cotton Door Panel Pattern: Woodgrain,Orange Peel,Fold,Flush
Surface Finishing: Finished Open Style: Automatic
Panel Design: Casstte, Stripe Lines, Fold Max Available Panel Length: 11.8m (to Fit The Container)
Wind Resistance: Class 3 Water Tightness: Class 3
Noise Level: 22dB Insulation Density: 43-45kg/M³
Foam Insulation Value: 13.73 Enterprise Nature: Manufacturer And Trader Since 2009
Specification: Customized Size HS Code: 73083
High Light:

130mm/S Industrial Overhead Door


220V Industrial Overhead Door


220V metal roll up doors

Automatic Sectional Industry Sectional Overhead Sliding Door Suppliers


The industrial door, as the best choice of the outdoor of the modern architecture, enjoys the perfect
durability and sealing, the elegant aprrearance, the simple operating system and the spring balanced system, which is used durably and cleaned easily with the special designing door panel.
1, New & Elegant look.
2, Door panel fingr protection patent designed. Saftey use.
3, Design with the Small Window & small door is available.
4, Easy installation. Our doors has pre-installed & tested in our factory.
5, Self-locking while the power off. Saves our worry on the safety even when the power get cut off.
Safety measures:
1.pinch-proof design
2. hanging steel rope on the top to prevent unwanted door dropping
3.safety airbag on the bottom
4.anti-breaking facility for the torsional spring

Product Description:


Door Panel Galvanized Steel Plate
Door Filler Polyurethane foaming
Guide Rail Galvanized Steel,Noise Level <= 60db
Door Panel Thickness 40mm-80mm(optional)
Operation Temperature From -40Degrees to 50 Degrees
Drive Voltage 220V 50HZ
Components Motor,airbag,spring brake device,cable break device,pulleys,control box, brackets
Climbing Mode Standard Lifing, High Lifting, Vertical Lifing
Door Configuration: With Clear window or small sectional door or without window/door
Door Panel Size Max 12000MM
Opening Size Max 8000MM
Heat Transfer K=0.4-0.5W/K
Opening Speed: about 130mm/S
Operation Counts Max 100times /24 hours
Balance System External torsion spring balance system, the working life of the torsion spring reaches 400000-800000s working cycle
Opening Type: Button,rope control,remote control,Geomagnetic Control,Photocell
Control, Radar Control


Why Choose Us?


Customers satisfaction is our eternal goal. We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.

Over the years, our company has been working with the well-known manufacturers work closely with gated, has introduced the latest and most sophisticated production equipment of various volumes gate. The use of superior Quality raw materials and high-quality components, and adhere to the " excellence, precision production" product concept, to ensure the production of a variety of beautiful rolling door products Generous, easy operation, security, security, durability, quality assurance. We spirit of "honesty, quality first, customer first, service leader," the case Purpose, passion for the community to provide the safest customers the best a variety of roll gates, but also provide comprehensive maintenance service.


F A Q :

1,Are you trading company or manufacturer ?

A: We are factory.
2. What's the payment details?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
3. What's the delivery time?
For common order, about 15 days only.
4. What about the warranty for the doors?
We provide 12 months warranty for all doors and accessories.
5. Do you provide OEM Service?
Yes. OEM & ODM Service is ok for us.
6. What's the MOQ?
We accept 1 set as sample order.
7. How about the package?
Plywood case, suitable for sea freight or air freight, as your request.
