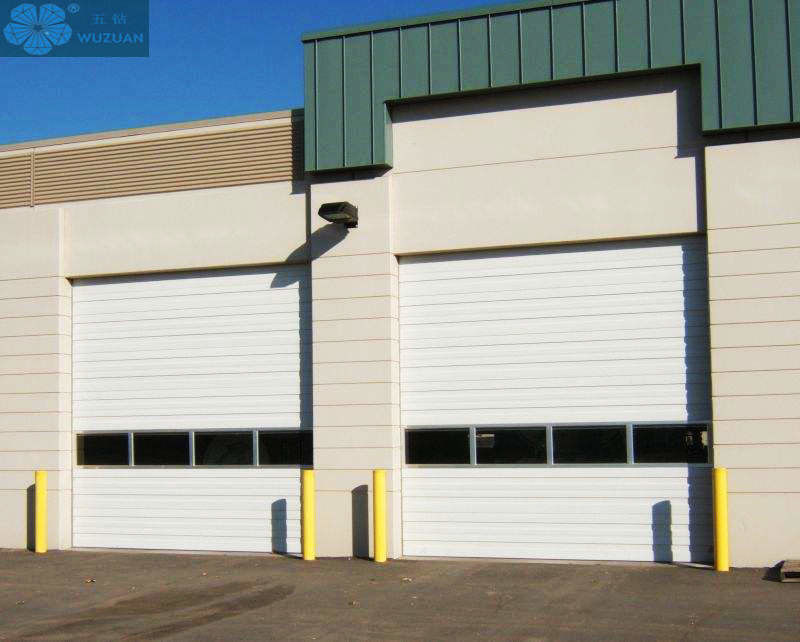

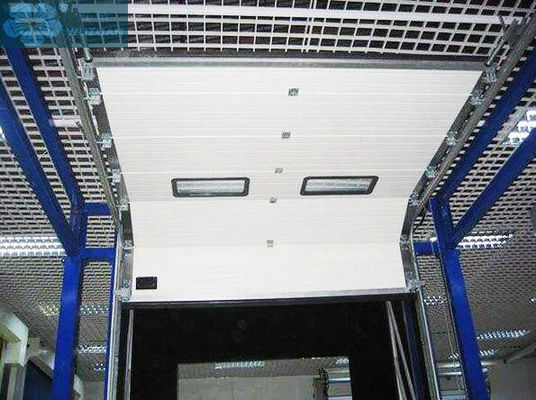

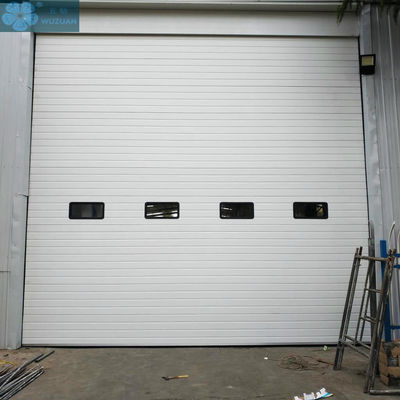

0.35mm Galvanized Steel 440mm Panel Industrial Overhead Door

China Dongguan Hengtaichang Intelligent Door Control Technology Co., Ltd. certification
China Dongguan Hengtaichang Intelligent Door Control Technology Co., Ltd. certification
I'm Online Chat Now

0.35mm Galvanized Steel 440mm Panel Industrial Overhead Door

0.35mm Galvanized Steel 440mm Panel Industrial Overhead Door
0.35mm Galvanized Steel 440mm Panel Industrial Overhead Door
video play

Large Image :  0.35mm Galvanized Steel 440mm Panel Industrial Overhead Door

Product Details:
Place of Origin: China
Brand Name: Wuzuan
Model Number: IOSD-00015
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Packaging Details: Polywood case or strong paper carton
Delivery Time: 7-15days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 300pcs per month
Detailed Product Description
Material: Galvanized Steel With PU Foaming Inside Color: White, Gray, Red, Blue, Natural Or Customized
Construction: Steel - Foam - Steel Sandwich Construction Galvanized Steel Thickness: 0.35mm / 0.45mm / 0.50mm
Panel Thickness: 40mm / 50mm Panel Height: 440mm - 550mm, Adjustable
Optional Component: Window & Pedestrian Gate Panel Width: 440-550mm, Can Be Adjust
Packing Details: Carton Paper + Pearl Cotton Door Panel Pattern: Woodgrain,Orange Peel,Fold,Flush
Surface Finishing: Finished Open Style: Automatic
Panel Design: Casstte, Stripe Lines, Fold Max Available Panel Length: 11.8m (to Fit The Container)
Wind Resistance: Class 3 Water Tightness: Class 3
Noise Level: 22dB Insulation Density: 43-45kg/M³
Foam Insulation Value: 13.73 Enterprise Nature: Manufacturer And Trader Since 2009
Specification: Customized Size HS Code: 73083
High Light:

440mm Panel Industrial Overhead Door

,

0.35mm Galvanized Steel Industrial Overhead Door

,

440mm Panel industrial sectional door

Color Steel Skin Industrial Overhead Sectional Door With PU Infilled



The industrial overhead sectional door consists of a door panel ,balance system, drive and control system, safety device, track and seal, and its optional parts(such as small doors, windows, etc.). It is driven by balance system to realize its balance when it is moving to drive the door by external force (manual or electric) and operate in track system, thus it is easy to operate and with good insulation and sealing performance.It is suitable for all types of factory buildings, Logistics warehouse or special garage with high thermal insulation and aesthetic requirements.

Features:

1,Panel adopts double-layer color coated steel material with PU infilled, high strength and toughness and corrosion-resistant.
2,Appearance: the inner and outer surfaces of the door are specially processed which can meet the requirements of various modern industrial buildings.
3,Windproof: it is strong enough by the door internal strengthening processing with other strengthening accessories.
4,Transmittance of light: rectangular or elliptical design of double-layer insulating glass, or perspective window with rubber surrounding can provide a good day lighting and transparency.
5,Security: specialized door bolt and door lock can be locked from inside with strong door to effectively anti-pry and anti-theft.

Product Description:

Material Double-sided color steel plate or aluminum alloy
Opening speed 200 mm/s
Wind strengh The sliding pressure of industrial sliding doors is not less than 750Pa, and special performance can be strengthened according to requirements.
Door panel The door body is a color steel composite door panel with an overall thickness of 40-50mm, inner and outer steel plate thickness of 0.4mm, filled with high-density polyurethane foam material in the middle, and equipped with a protective film, built-in reinforcing ribs, double-sided beading
Filler The middle is filled with a fluorine-free polyurethane foam material of 48kg/m3, and the inner steel strip is reinforced, and the heat preservation, heat insulation, insulation and sound insulation effects are good.
Track All are made of hot-dip galvanized steel, passivated, high corrosion resistance; beautiful appearance, high strength, not easy to deform; can ensure smooth running of the sliding door along the track fixed
The thickness of the galvanized steel sheettrack 2.0±0.2mm
Fire-proof level The fire rating for the door in the closed state is: Class B (national common level)
Balance system The straight door is balanced by a high-strength spring, and the service life of the spring is 100,000 cycles. All spring surfaces are plated for better corrosion resistance.
Door control system Three-button push button switch control, remote remote control control, hand-off motor chain opening and closing control during power failure.
Function It has the characteristics of stable operation, safe and reliable, low noise, heat preservation, anti-theft, windproof, dustproof and saves space in the factory.
Usage It is widely used in underground garage access, chemical, pharmaceutical, automotive, and food processing industries


Why Choose Us?



Customers satisfaction is our eternal goal. We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.

Over the years, our company has been working with the well-known manufacturers work closely with gated, has introduced the latest and most sophisticated production equipment of various volumes gate. The use of superior Quality raw materials and high-quality components, and adhere to the " excellence, precision production" product concept, to ensure the production of a variety of beautiful rolling door products Generous, easy operation, security, security, durability, quality assurance. We spirit of "honesty, quality first, customer first, service leader," the case Purpose, passion for the community to provide the safest customers the best a variety of roll gates, but also provide comprehensive maintenance service.



F A Q :


1,Are you trading company or manufacturer ?

A: We are factory.
2. What's the payment details?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
3. What's the delivery time?
For common order, about 15 days only.
4. What about the warranty for the doors?
We provide 12 months warranty for all doors and accessories.
5. Do you provide OEM Service?
Yes. OEM & ODM Service is ok for us.
6. What's the MOQ?
We accept 1 set as sample order.
7. How about the package?
Plywood case, suitable for sea freight or air freight, as your request.
