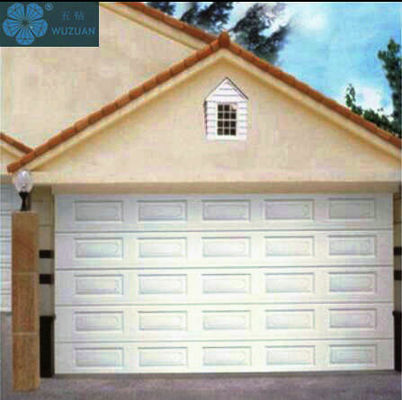

Remote Control Electric Safety and Convenient Aluminum Alloy Insulated Sectional Automatic Sliding Overhead Garage Door
Each sectional door is made up of a number of individual horizontal sections, stacked one on top of the other with galvanized steel hinges holding them together. This is where the name “overhead sectional door” comes from. The number of sections, their height, width and what each section contains is determined by the application as well as by the assembly’s requirements and limitations. Sections can be made of steel, aluminum, wood, vinyl, or composite material. ArmRLite overhead doors, in particular, are manufactured with either steel or aluminum for strength and longevity.
The track and spring system of a sectional door is also unique to this door type. Sectional doors use torsion or extension springs to counter the weight of the door and allow users to open and close them easily. For larger doors, or for applications that need them, motors can also be installed to make operating a sectional door even easier.
The track system of a sectional door is available in a number of lift options depending on the headroom space available. Typically a sectional door will have a track system that will move the door vertically upwards, though a radius and back into the room horizontally overhead. An operable sectional door will always have a track system as part of the assembly.
1. Garage Door 's each section panel joint is adopt "Finger-protection"(Pinch-resistant) safety Design in order to avoid any finger injury when door open and close.
2. Garage Door size and Color can be customized according to customer's requiremtns. Full range of Colors such as Green, Brown, Cream, Red, Grey, Blue, Black, Wood Golden Oak, Mahogany and Cherry colors, etc.
3. Double thickers layer of steel plate with Polyurethane Foam Inside --- Heat Insulation.
4. Garage Door with Double Track system in order to avoid any installation problem caused by lower headroom distance.
5. The garage door can be opened/closed by emergency lock in case of power fault/off.
6. All Garage door hardwares are made of galvanized steel material in order to prevent rust.
7. Garage door's complete set hardware as standard specification which include around(left, top, right, bottom) weather-proof seal, and also even screws package. No need to add any extra accessories when installation..
8. Standard Special thicker carton packing for exporting in order to guarantee safety loading and unloading process in Delivery.
||1. 304 STAINLESS STEEL 0.38mm-0.48mm
|2.Door panel with polyurethane foam filled
|3. Galvanized steel plate, with any ral color. 0.4mm-0.7mm
|Door Panel Height
||450mm & 550mm
||Porcelain white, light gray,coffee color and stainless steel color, or any Ral color.
|Rail & Fitting
||Hot dip galvanized steel rail and galvanized bracket & hinges.
Aluminum powder coated 2.8mm thick rail is also optional.
||With full sealed, weather resistance & well protection & soundproof.
||Automatic & remote controlled.
Power rate: 220V/380V
|Feature for Door Motorized System
||Route memorable, door self locking when power cut off, self-checking up, non hand nipping, safety operation.
||Can be optional
Why Choose Us?
Over the years, our company has been working with the well-known manufacturers work closely with gated, has introduced the latest and most sophisticated production equipment of various volumes gate. The use of superior Quality raw materials and high-quality components, and adhere to the " excellence, precision production" product concept, to ensure the production of a variety of beautiful rolling door products Generous, easy operation, security, security, durability, quality assurance. We spirit of "honesty, quality first, customer first, service leader," the case Purpose, passion for the community to provide the safest customers the best a variety of roll gates, but also provide comprehensive maintenance service.
Customers satisfaction is our eternal goal. We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.
F A Q :
1,Are you trading company or manufacturer ?
A: We are factory.
2. What's the payment details?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
3. What's the delivery time?
For common order, about 15 days only.
4. What about the warranty for the doors?
We provide 12 months warranty for all doors and accessories.
5. Do you provide OEM Service?
Yes. OEM & ODM Service is ok for us.
6. What's the MOQ?
We accept 1 set as sample order.
7. How about the package?
Plywood case, suitable for sea freight or air freight, as your request.
