Buglar Resistance 380V 40cm/S Glass Garage Doors

China Dongguan Hengtaichang Intelligent Door Control Technology Co., Ltd. certification
China Dongguan Hengtaichang Intelligent Door Control Technology Co., Ltd. certification
I'm Online Chat Now

Buglar Resistance 380V 40cm/S Glass Garage Doors

Buglar Resistance 380V 40cm/S Glass Garage Doors
Buglar Resistance 380V 40cm/S Glass Garage Doors
video play

Large Image :  Buglar Resistance 380V 40cm/S Glass Garage Doors

Product Details:
Place of Origin: China
Brand Name: Wuzuan
Model Number: TOSGD-0003
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 300pcs per month
Detailed Product Description
Panel Material: Tempered Glass, Polycarbonate Sheet, Acrylic Panel Frame Material: Aluminium Alloy
Guide Rail Material: Galvanized Steel Special Function: Thermal Insulated
Range Of Use: Factory, Garage, 4S Shop, Car Store Size: Customized
Open Style: With Remote Control , Automatic Frame Color: White, Black, Gray, Brown, Deep Red, Blue Or Customized
Panel Color: Full Clear Surface Finishing: Finished
Panel Length: 2-11.8m Or Customized Panel Width: 420mm - 610mm Or Customized
Thickness Of Garage Door Panel: 0.326mm,0.376mm,0.426mm, 0.476mm Motor: Avanti, Foresee Or Others
Motor Rail: 3.0 - 4.5m Rail Type: Chain / Belt
Standard Equipment: 2 Transmitters, Steel Guide And Mounting Brackets Limit Setting: Electronic
Options: Wall Switch, Photocell, Wireless Pin Code Lock, Thermal Insulation: 1.9W/(Sqm.K)
Transport Package: Plywood Case Or Cardboard Or As Your Request. HS Code: 73083000
High Light:

380V Glass Garage Doors

,

40cm/S Glass Garage Doors

,

40cm/S insulated glass garage doors

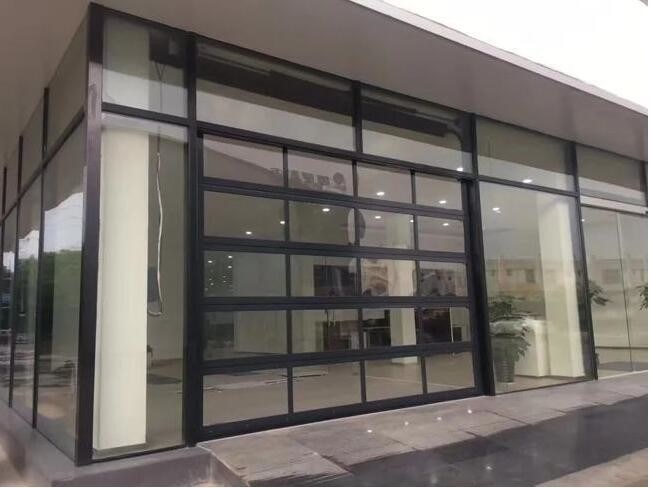

Automatic Security Glass Panel Aluminum Frame Transparent Overhead Sliding Garage Glass Door



Contemporary and clean, glass garage doors are a popular choice for many homes. These beautiful, full view doors have an aluminum frame and your choice of long or short glass panels.

We offer a variety of glasses including transparent, opaque, and tinted. Additionally we have several finishes available such as frosted or clear.



Advantages
1.Satisfactory silent operation: the silent operation of garage door is impressive. Its operation noise is minimized by using the silent operating system in the garage door.
2.Reliable balance system, strong driving device, excellent track and flexible roller make door body operate lightly and flexibly.
3. Personalized design: according to your actual installation wall to wall size,we could accurate to millimeter for production and providing products. And the frame have a variety of color choices available.The most common and popular colors are mainly white, gray,red and ivory white.
4.Applicable installation space: the garage door is suitable for any installation wall. The garage door is rolled up above the installation wall hole, and it only needs to occupy the height space of the upper part of the hole.
5.Garage door is durable and it has beautiful appearance, high strength, high toughness, anti-hit and anti-scratch functions. It can prevent malicious invasion from outside and has more effective security protection. The appearance adopts electrostatic powder spraying technology which makes it weatherproof, anti-aging, anti-rain and anti-corrosion .




Technical data
Max dimension W12000mm,H8000mm.
Opening and closing speed 20cm-40cm/s
Power supply 220V±10%V,50/60HZ or 380V±10%V,50/60HZ
Door panel thickness 40mm/50mm/Back rib door
Optional Transparent Material Polaycarbonate glass,Tempered Glass
Wind resistence Beaufort scale11grade, 28m/s
Sound insulation level <=60dB
Insulation level:: 1.5 W/m°C
Water tightness 30 Pa
Thermal Conductivity ≤0.033W/m.k
Main Features: a.UV proof UV
b.Impact-resistance and buglar resistance
Balance System a.Balance the weight of door through the torsion spring
b.Easily manual operation
c.Reduce motor load greatly
d.Prolong the service life of the motor
Safety device: Airbag protection, door anti-fall device, wire rope anti-break protection device





Why Choose Us?

Over the years, our company has been working with the well-known manufacturers work closely with gated, has introduced the latest and most sophisticated production equipment of various volumes gate. The use of superior Quality raw materials and high-quality components, and adhere to the " excellence, precision production" product concept, to ensure the production of a variety of beautiful rolling door products Generous, easy operation, security, security, durability, quality assurance. We spirit of "honesty, quality first, customer first, service leader," the case Purpose, passion for the community to provide the safest customers the best a variety of roll gates, but also provide comprehensive maintenance service.

Customers satisfaction is our eternal goal. We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.



F A Q :


1,Are you trading company or manufacturer ?

A: We are factory.
2. What's the payment details?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
3. What's the delivery time?
For common order, about 15 days only.
4. What about the warranty for the doors?
We provide 12 months warranty for all doors and accessories.
5. Do you provide OEM Service?
Yes. OEM & ODM Service is ok for us.
6. What's the MOQ?
We accept 1 set as sample order.
7. How about the package?
Plywood case, suitable for sea freight or air freight, as your request.
