Soundproof 2.5m/S 220V Quick Roll Up Doors

China Dongguan Hengtaichang Intelligent Door Control Technology Co., Ltd. certification
China Dongguan Hengtaichang Intelligent Door Control Technology Co., Ltd. certification
I'm Online Chat Now

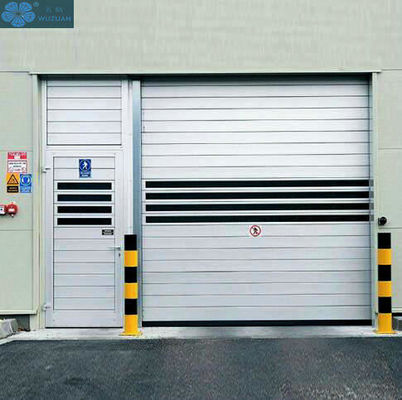

Soundproof 2.5m/S 220V Quick Roll Up Doors

Soundproof 2.5m/S 220V Quick Roll Up Doors
Soundproof 2.5m/S 220V Quick Roll Up Doors
video play

Large Image :  Soundproof 2.5m/S 220V Quick Roll Up Doors

Product Details:
Place of Origin: China
Brand Name: Wuzuan
Model Number: SD00022
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD1950-4850 per set
Packaging Details: wood case or strong paper carton
Delivery Time: 8 -15days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 300pcs per month
Detailed Product Description
Material: Galvanized Steel / Stainless Steel Color: Red, Blue, Green, Yellow, Orange, Gray, Black, White, Natural (customizable)
Opening Speed: 0.6m/s-1.2/s (adjustable) Applications: Garage, Supermarkets, Hypermarkets, Warehouses, Loading Docks, Platforms, Laboratories And Pavilions Etc. And Other Quick Passages.
Guide: Double Spiral Turbo Aluminum Rails, Door Rises When No Contact Between The Door And The Connecting Part. Door Frame: Enviromental Quality CNC Bending Galvanized Sheet Molding Thickness 2mm, External Appearance And Dustproof.
The Ways Of Operation: Radar, Geomagnetic Sensor, Bluetooth, Remote Control,manually Switch, Push Button. Wind Resistance: ≤ Grade 12
Filling Material: Polyurethane Foam Power Supply: 1-Phase 220V, Or 3-Phase 380V
Opening Speed: 2.5m/S Max Applicable Area: Both External And Internal
Surface Finishing: Finished Closing Speedt: 1.2m/S Max
Operation: Control Button, Remote Control Or Sensors HS Code: 853080000
High Light:

220V Quick Roll Up Doors

,

2.5m/S Quick Roll Up Doors

,

2.5m/S speed roll up doors

Rapid Induction Automatic Aluminium Alloy Spiral Quick Sliding Shutter Door



Fast Spiral is the quick winding door in an exclusive spiral. An industrial novelty, the areas of the layer are wound in a spiral without touching one another.
A rapid and modern door, created by HengTaichang to satisfy all requirements of its even its most demanding customers.
An increase in energy costs and the guarantee of a quick but sturdy and safe door, have resulted in the creation of a rapid closure with an improvement in the physical characteristics of the protective layer as well as optimisation of functionality.



Technical Details of the HengTaichang Fast Spiral in brief:


1, Internal / External use
2, Dimensions L. max 6.500mm , Dimensions H. max 6.000mm

3, Speed with FU control and max opening 2.5 m/s closing max 0.5m/s

4, Manual level emergency opening / closing system or with winch chain (optional)
5, Electrical power 380 volts +N+T

6, Resistance to wind load up to class 4 (Proportional to width)
7, Soundproofing R = 22DB



Surface during rolling

Soundproof 2.5m/S 220V Quick Roll Up Doors 0

The areas of the layer are wound in a spiral without touching one another



Applications:

All kinds of Factories, Warehouses, Packaging industry, Chemical industry, Machinery industry,Loading bays.

Technical Specifications

Size range
Max. width 10000mm
Max. height 7500mm
Speed
Max. opening speed 2.5m/sec
Max. closing speed 0.8m/sec
Emergency opening and emergency closing
Hand chain with spring compensation support
Door leaf
Material 0.8mm aluminum alloy with PU-foamed
  galvanized steel frame
Depth 40mm
Section height 220mm
Resistance to wind load Class4~130km/h
Acoustic insulation R=22 dB
Thermal insulation UD=1.95W/(M²K) FOR 25M² door size




Why Choose Us?

Over the years, our company has been working with the well-known manufacturers work closely with gated, has introduced the latest and most sophisticated production equipment of various volumes gate. The use of superior Quality raw materials and high-quality components, and adhere to the " excellence, precision production" product concept, to ensure the production of a variety of beautiful rolling door products Generous, easy operation, security, security, durability, quality assurance. We spirit of "honesty, quality first, customer first, service leader," the case Purpose, passion for the community to provide the safest customers the best a variety of roll gates, but also provide comprehensive maintenance service.

Customers satisfaction is our eternal goal. We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.



Features:
1. High speed opening and closing
The running speed can reach 2m/s, 10 times as traditional roller shutter door. This obviously improves passing efficiency through it and enhances overall output.
2. High-strength

The door slat is very thick double aluminum slat, with good strength. It can protect inside goods or property by preventing theft or robbers. And the door can resist big wind pressure up to 120km/s wind speed, namely Wind Scale 12 class.

3. Good thermal-insulation

Double skin aluminum alloy slats , inside is filled with high-density insulating rock wool . Total Thickness of door panel: 43mm; With excellent thermal insulation performance. It can prevent thermal loss of the cold room and save energy

4. Excellent safety performance
Dual protection design. Every door is equipped with safety photo sensor and proximity sensor, avoiding collision accidents and protecting passing human or vehicles.

5. High frequency operation
The operation frequency can reach more than 1000 times per day without any faults. This meets need of heavy traffic in some areas.

Applications:

All kinds of Factories, Warehouses, Packaging industry, Chemical industry, Machinery industry,Loading bays.





F A Q :


1,Are you trading company or manufacturer ?

A: We are factory.
2. What's the payment details?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

3. What's the delivery time?
For common order, about 15 days only.

4. What about the warranty for the doors?
We provide 12 months warranty for all doors and accessories.

5. Do you provide OEM Service?
Yes. OEM & ODM Service is ok for us.

6. What's the MOQ?
We accept 1 set as sample order.

7. How about the package?
Plywood case, suitable for sea freight or air freight, as your request.

Soundproof 2.5m/S 220V Quick Roll Up Doors 1
