Wind Resistance 1.7KW 220V High Speed Spiral Door

China Dongguan Hengtaichang Intelligent Door Control Technology Co., Ltd. certification
China Dongguan Hengtaichang Intelligent Door Control Technology Co., Ltd. certification
I'm Online Chat Now

Wind Resistance 1.7KW 220V High Speed Spiral Door

Wind Resistance 1.7KW 220V High Speed Spiral Door
Wind Resistance 1.7KW 220V High Speed Spiral Door
video play

Large Image :  Wind Resistance 1.7KW 220V High Speed Spiral Door

Product Details:
Place of Origin: China
Brand Name: Wuzuan
Model Number: SD00021
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD1950-4850 per set
Packaging Details: wood case or strong paper carton
Delivery Time: 8 -15days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 300pcs per month
Detailed Product Description
Material: Galvanized Steel / Stainless Steel Color: Red, Blue, Green, Yellow, Orange, Gray, Black, White, Natural (customizable)
Opening Speed: 0.6m/s-1.2/s (adjustable) Applications: Garage, Supermarkets, Hypermarkets, Warehouses, Loading Docks, Platforms, Laboratories And Pavilions Etc. And Other Quick Passages.
Guide: Double Spiral Turbo Aluminum Rails, Door Rises When No Contact Between The Door And The Connecting Part. Door Frame: Enviromental Quality CNC Bending Galvanized Sheet Molding Thickness 2mm, External Appearance And Dustproof.
The Ways Of Operation: Radar, Geomagnetic Sensor, Bluetooth, Remote Control,manually Switch, Push Button. Wind Resistance: ≤ Grade 12
Filling Material: Polyurethane Foam Power Supply: 1-Phase 220V, Or 3-Phase 380V
Opening Speed: 2.5m/S Max Applicable Area: Both External And Internal
Surface Finishing: Finished Closing Speedt: 1.2m/S Max
Operation: Control Button, Remote Control Or Sensors HS Code: 853080000
High Light:

220V High Speed Spiral Door

,

1.7KW Overhead High Speed Spiral Door

,

1.7KW high speed rolling doors

Overhead Spiral Fast Rolling Shutter High Speed Aluminum Insulated Roller Shutter Door

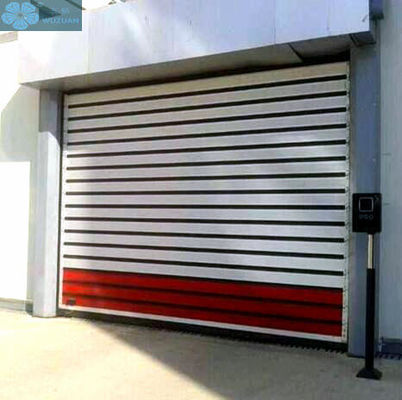

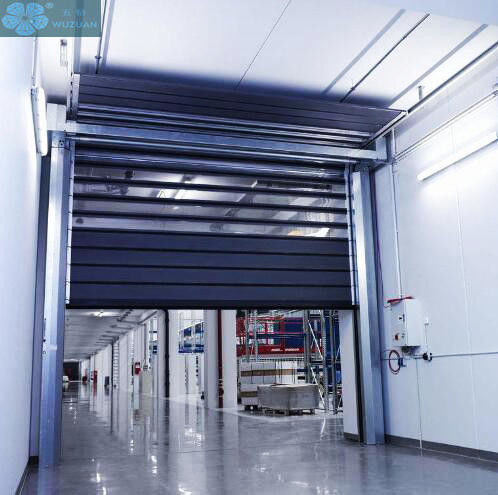

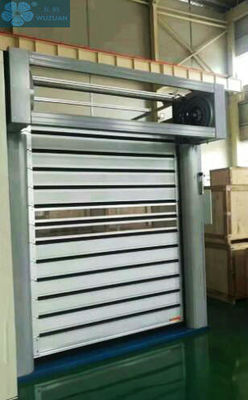

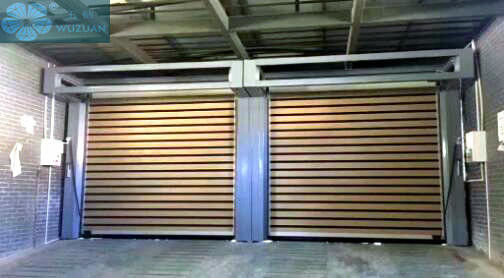

The Spiral overhead security door offers high-speed operation for high-traffic situations and rigid aluminum slat construction that eliminates the need for a second security door. Crisp lines give the Spiral door a stylish look that's great for many types of commercial, automotive retail, government, institutional and industrial applications. When considering overhead coiling doors the Spiral door is known as the most secure option for automotive dealerships, government, parking and security needs.
The Spiral door withstand winds up to 175 miles per hour.



Features:
1. High speed opening and closing
The running speed can reach 2m/s, 10 times as traditional roller shutter door. This obviously improves passing efficiency through it and enhances overall output.
2. High-strength

The door slat is very thick double aluminum slat, with good strength. It can protect inside goods or property by preventing theft or robbers. And the door can resist big wind pressure up to 120km/s wind speed, namely Wind Scale 12 class.

3. Good thermal-insulation

Double skin aluminum alloy slats , inside is filled with high-density insulating rock wool . Total Thickness of door panel: 43mm; With excellent thermal insulation performance. It can prevent thermal loss of the cold room and save energy

4. Excellent safety performance
Dual protection design. Every door is equipped with safety photo sensor and proximity sensor, avoiding collision accidents and protecting passing human or vehicles.

5. High frequency operation
The operation frequency can reach more than 1000 times per day without any faults. This meets need of heavy traffic in some areas.



Applications:

All kinds of Factories, Warehouses, Packaging industry, Chemical industry, Machinery industry,Loading bays.

Technical Specifications

NO. Item Index
1 Size ranges Width 2000mm~6000mm; Height 2000mm~6000mm
2 Open control ways controled by control box--Control Options: radar, geomagnetic sensor, Bluetooth RF sensor, remote sensing, pull rope switches and other control methods
3 Drive system German SEW motor, Holip Inverter, Kewei plc (Mitsubishi technology)
4 Heat preservation performance at least be K ≤ 1.7W/ (m2K)
5 Air tightness 8.68m3 / (m2 h), reached the national standard grade 3
6 Water tightness ≤700Pa, which reached the national standard grade 6
7 Color optional grey, aluminum primary color, white, red, beige, etc.
8 Opening and closing speed Opening speed:0.8 ~ 1.5 m/s (adjustable);
Closing speed: ≥ 0.6m/s, (adjustable)
9 Wind resistance 3.5 k Pa, reached grade 6 of the GB; Wind resistance grade 12 (120km/h)




Why Choose Us?

Over the years, our company has been working with the well-known manufacturers work closely with gated, has introduced the latest and most sophisticated production equipment of various volumes gate. The use of superior Quality raw materials and high-quality components, and adhere to the " excellence, precision production" product concept, to ensure the production of a variety of beautiful rolling door products Generous, easy operation, security, security, durability, quality assurance. We spirit of "honesty, quality first, customer first, service leader," the case Purpose, passion for the community to provide the safest customers the best a variety of roll gates, but also provide comprehensive maintenance service.

Customers satisfaction is our eternal goal. We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.



Features:
1. High speed opening and closing
The running speed can reach 2m/s, 10 times as traditional roller shutter door. This obviously improves passing efficiency through it and enhances overall output.
2. High-strength

The door slat is very thick double aluminum slat, with good strength. It can protect inside goods or property by preventing theft or robbers. And the door can resist big wind pressure up to 120km/s wind speed, namely Wind Scale 12 class.

3. Good thermal-insulation

Double skin aluminum alloy slats , inside is filled with high-density insulating rock wool . Total Thickness of door panel: 43mm; With excellent thermal insulation performance. It can prevent thermal loss of the cold room and save energy

4. Excellent safety performance
Dual protection design. Every door is equipped with safety photo sensor and proximity sensor, avoiding collision accidents and protecting passing human or vehicles.

5. High frequency operation
The operation frequency can reach more than 1000 times per day without any faults. This meets need of heavy traffic in some areas.

Applications:

All kinds of Factories, Warehouses, Packaging industry, Chemical industry, Machinery industry,Loading bays.



Detail Information:



Requirements pecifications
Door size Minimal Size W1250/H2000
Maximal Size W6000/H6000
Door Opening / Closing Speed Minimal Closing Speed 0.6m/s
Maximal Opening Speed 1.5m/s
Panel Material
Perspective panel. piece height: 200mm, thickness:40mm, Aluminum Alloy Frame, Double PU Board
Voltage Single phase 220V,50/60 HZ
Color Options White,Blue,Red,Gray,Champagne or customized
Track Seal Brush Bar
Wind Resistant Aluminium alloy
Motor Cover & Scroll Cover Optional
Installtion Inside & Outsize
Opening Configuration ( Optional ) Remote control,Three key button,Terrestrial magnetism,Radar,Rope-pull Switch
Service Life 1.5 million
Operation Temperature -10 °C to 40 °C







F A Q :


1,Are you trading company or manufacturer ?

A: We are factory.
2. What's the payment details?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

3. What's the delivery time?
For common order, about 15 days only.

4. What about the warranty for the doors?
We provide 12 months warranty for all doors and accessories.

5. Do you provide OEM Service?
Yes. OEM & ODM Service is ok for us.

6. What's the MOQ?
We accept 1 set as sample order.

7. How about the package?
Plywood case, suitable for sea freight or air freight, as your request.
