Home ProductsHigh Speed Spiral Door

3m Height 1.2/S High Speed Spiral Door With Clear Window

China Dongguan Hengtaichang Intelligent Door Control Technology Co., Ltd. certification
China Dongguan Hengtaichang Intelligent Door Control Technology Co., Ltd. certification
I'm Online Chat Now

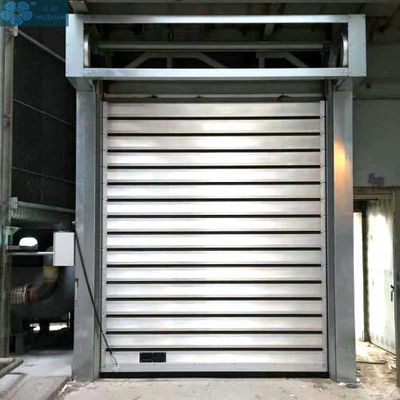

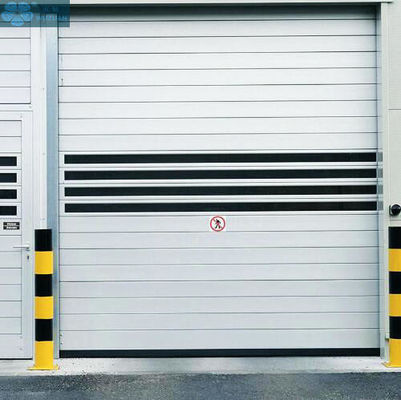

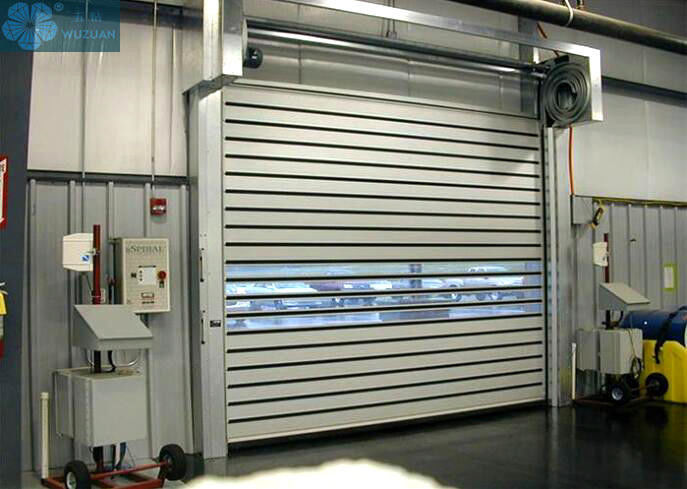

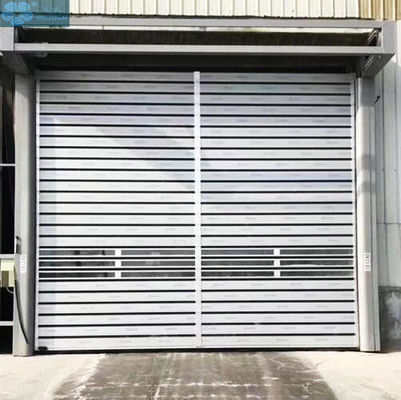

3m Height 1.2/S High Speed Spiral Door With Clear Window

3m Height 1.2/S High Speed Spiral Door With Clear Window
3m Height 1.2/S High Speed Spiral Door With Clear Window
video play

Large Image :  3m Height 1.2/S High Speed Spiral Door With Clear Window

Product Details:
Place of Origin: China
Brand Name: Wuzuan
Model Number: SD00015
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD1950-4850 per set
Packaging Details: wood case or strong paper carton
Delivery Time: 8 -15days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 300pcs per month
Detailed Product Description
Material: Galvanized Steel / Stainless Steel Color: Red, Blue, Green, Yellow, Orange, Gray, Black, White, Natural (customizable)
Opening Speed: 0.6m/s-1.2/s (adjustable) Applications: Garage, Supermarkets, Hypermarkets, Warehouses, Loading Docks, Platforms, Laboratories And Pavilions Etc. And Other Quick Passages.
Guide: Double Spiral Turbo Aluminum Rails, Door Rises When No Contact Between The Door And The Connecting Part. Door Frame: Enviromental Quality CNC Bending Galvanized Sheet Molding Thickness 2mm, External Appearance And Dustproof.
The Ways Of Operation: Radar, Geomagnetic Sensor, Bluetooth, Remote Control,manually Switch, Push Button. Wind Resistance: ≤ Grade 12
Filling Material: Polyurethane Foam Power Supply: 1-Phase 220V, Or 3-Phase 380V
Opening Speed: 2.5m/S Max Applicable Area: Both External And Internal
Surface Finishing: Finished Closing Speedt: 1.2m/S Max
Operation: Control Button, Remote Control Or Sensors HS Code: 853080000
High Light:

1.2/S High Speed Spiral Door

,

3m Height High Speed Spiral Door

,

3m Height quick roll up doors

Rapid Electric Automatic Insulated Spiral Door High Speed Security Door With Clear Window

The spiral door panel adopts the new anti-pinch broken bridge foaming technology, which makes the door body light and easy to install. It has improved in heat preservation and operation.
The running track can be single spiral, double spiral, elliptical, smooth, straight, and special-shaped series. The track can be designed according to the size of your door opening space. The motor can be built-in coaxial and side-mounted.Factory direct steel industrial sliding door manufacturer manual manufacturer
China Suppliers Automatic Insulated Spiral Door High Speed Security Door panel technology is an upgrade of the hard fast door plate. The traditionapiral l door panel encounters debris or hail will be caught in the link gap, resulting in door panel damage, deformation, abnormal sound and so on.
In the environment of high cold or large indoor and outdoor temperature difference, the traditional door panel is caused by the cold bridge leading to ice or frost. The new anti-pinch broken bridge foam door is the best solution, which greatly improves overall life of the door.
The opening mode is divided into Bluetooth, geomagnetic, swipe, radar, fingerprint password, manual button and so on. At the same time, it is equipped with anti-blocking light, infrared photoelectric, airbag, window and other security systems.
The width of the door panel is divided into 200 type and 220 type. The standard thickness is 43mm. It can be made into thickness of 50mm/75mm/100mm according to customer's requirements. The maximum opening width of the door is 12 meters, the maximum opening height is 8 meters, and the maximum opening frequency is 3000 times per day.


Widely used in industrial plants, cold chain, logistics, cold storage, fast track, automotive assembly, food processing, precision machinery, automotive 4s shop, underground parking lot, etc.



Door features:



Practical and durable
The operation of hard fast door equipment is very efficient, and the whole process flow does not occur. In addition, the probability of equipment failure in long-term use is very small and more durable, thereby increasing the utilization of the door.
Reliable collision
The door device has a unique anti-collision design, which ensures that the door device does not directly collide with other objects during operation, avoiding damage to the door device or damage to other objects, and is more worry-free to use.
High speed stability
As the name suggests, the door device has a very fast running speed. The fast door manufacturer adopts the variable frequency motor technology, and the running speed can also be adjusted. The running speed is high and stable, and it is trustworthy!
Energy saving and environmental protectioThe advanced AC variable frequency motor drive technology adopted by the fast door manufacturer can realize the function of energy saving and environmental protection while ensuring the operation of the door equipment, and can reduce the loss of equipment operation as much as possible.
Strong and sturdy
The quick door manufacturer has optimized the structure of the door body to ensure the longevity of the equipment and ensure that the equipment is durable and free from other factors during a long period of use.
Windproof seal
Fast door manufacturers' products have very good wind resistance, can provide users with a very good sealing environment, and at the same time have very good sound insulation, insect proof, dustproof and other functions.
Easy to maintain
The product has a simple structural design and fewer internal movable parts. This design can improve the stability of the equipment, reduce the cycle of parts replacement and maintenance, and facilitate post-maintenance and maintenance



Technical overview



External door/Internal door
Size range
Max. width 10000mm
Max. height 7500mm
Speed
Max. opening speed 2.5m/sec
Max. closing speed 0.8m/sec
Emergency opening and emergency closing
Hand chain with spring compensation support
Door leaf
Material 0.8mm aluminum alloy with PU-foamed
  galvanized steel frame
Depth 40mm
Section height 220mm
Resistance to wind load Class4~130km/h
Acoustic insulation R=22 dB
Thermal insulation UD=1.95W/(M²K) FOR 25M² door size



About Us



Established in 2006, HengTaichang Intelligent gate control technology co., LTD is a leading manufacturer of automatic doors. We are located in Dongguan as known as " factory of the world" , . It is very convenient to all over the world by air or sea.

HengTaichang Is a high-tech company that integrates development, design, production, installation, sales,service and after-sales as one of the professional manufacturers, Over the years, we have designed, developed and manufactured a wide range of automatic doors, such as high speed rolling curtain doors, Industrial sliding door, Rapid metal shutter door, rapid accumulation of doors, silent roller shutter door, commerce crystal folding door, Fire Proof & Blast Proof Door, Hard Rapid Turbo Roller Door, remote control sectional garage door, remote roller shutter window and so on.



F A Q :


1,Are you trading company or manufacturer ?

A: We are factory.
2. What's the payment details?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

3. What's the delivery time?
For common order, about 15 days only.

4. What about the warranty for the doors?
We provide 12 months warranty for all doors and accessories.

5. Do you provide OEM Service?
Yes. OEM & ODM Service is ok for us.

6. What's the MOQ?
We accept 1 set as sample order.

7. How about the package?
Plywood case, suitable for sea freight or air freight, as your request.
