Thermal Insulated 2.5m/S 1.2mm High Speed Spiral Door

Thermal Insulated 2.5m/S 1.2mm High Speed Spiral Door
Thermal Insulated 2.5m/S 1.2mm High Speed Spiral Door
video play

Large Image :  Thermal Insulated 2.5m/S 1.2mm High Speed Spiral Door

Product Details:
Place of Origin: China
Brand Name: Wuzuan
Model Number: SD00013
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD1950-4850 per set
Packaging Details: wood case or strong paper carton
Delivery Time: 8 -15days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 300pcs per month
Detailed Product Description
Material: Galvanized Steel / Stainless Steel Color: Red, Blue, Green, Yellow, Orange, Gray, Black, White, Natural (customizable)
Opening Speed: 0.6m/s-1.2/s (adjustable) Applications: Garage, Supermarkets, Hypermarkets, Warehouses, Loading Docks, Platforms, Laboratories And Pavilions Etc. And Other Quick Passages.
Guide: Double Spiral Turbo Aluminum Rails, Door Rises When No Contact Between The Door And The Connecting Part. Door Frame: Enviromental Quality CNC Bending Galvanized Sheet Molding Thickness 2mm, External Appearance And Dustproof.
The Ways Of Operation: Radar, Geomagnetic Sensor, Bluetooth, Remote Control,manually Switch, Push Button. Wind Resistance: ≤ Grade 12
Filling Material: Polyurethane Foam Power Supply: 1-Phase 220V, Or 3-Phase 380V
Opening Speed: 2.5m/S Max Applicable Area: Both External And Internal
Surface Finishing: Finished Closing Speedt: 1.2m/S Max
Operation: Control Button, Remote Control Or Sensors HS Code: 853080000
High Light:

1.2mm High Speed Spiral Door


2.5m/s High Speed Spiral Door


2.5m/s speed roll up doors

Rapid Automatic Thermal Insulated Metal Spiral High Speed Coiling Shutter Steel Garage Doors

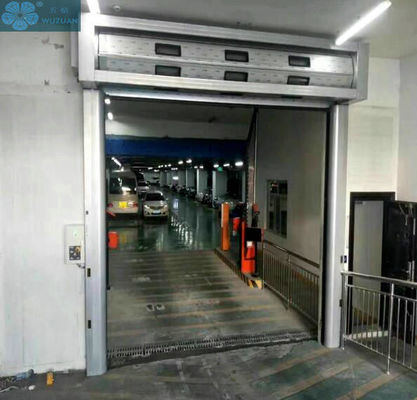

Hard material spiral quick doors with different opening methods to suit your garage entrances of different sizes, thus ensuring the maximum space for cars to enter. When the car passes through the sensing area of the fast rolling door, the door body will have a fast automatic function. After the car passes the door body for five seconds, the door body will automatically fall quickly to ensure that the cold air is blocked outside the door, thereby ensuring the temperature of the basement
The hard material shutter adopts airoags, infrared photoelectricity and grating protection system in the anti-smashing system, so it is more safe.

The underground parking lot is a centralized entrance with many opening hours, strong winds and harsh environment. Ordinary garage doors cannot meet these requirements. A good hard material fast door can be opened up to 1800 times, withstand the wind Yibofu 12 levels, with good insulation performance and fast Ascending and descending speed, this is the product of choice every day. Entrance to underground parking.




1, High Quality Materia

Carefully select material,using 1.2mm / 1.5mm / 2.0mm aluminum alloy plate which ensure this door meet customer's request.


2,Aperture Diaphragm Design
This kind of safety device is built into frame, it will feel object within it area.It will stop instantly when someone go through the door


3,Hot insulation Material Stuffing
The door panel is filled up with hot insulation material PU


4,Fast and Noiseless
With spiral round non-contact track,this sectional curtain will connect each other when door roll up,the curtain material won't wear out and distort,it runfast without noise


5,Isolating Function
The panel is built into sealing which don't allow the air water,dust pest or other contaminants go into space after the door is shutter


Max size

Max Width 10000mm

Max Height 7500mm

Max opening speed 1.2m to 2.5m/s adjust
Door panel

Material: Aluminum alloy with PU foam

Thickness: 43mm

Color: silver grey color , white color and red color, other special color

Drive system servo high speed door motor
windproof 120km/h
Safety Protection

1, With airbag at door bottom

2, Photoelectric Sensor

Open way

1, control box button

2, hand rope

3, remote control

4, radar sensor

5, detected loop

6, Photoelectric Sensor

Application Food, Chemical, Textile, Electronics, Supermarkets,
Refrigeration, Logistics, Warehousing and other places .
Packing Plywood Case



Why Choose Us?

Over the years, our company has been working with the well-known manufacturers work closely with gated, has introduced the latest and most sophisticated production equipment of various volumes gate. The use of superior Quality raw materials and high-quality components, and adhere to the " excellence, precision production" product concept, to ensure the production of a variety of beautiful rolling door products Generous, easy operation, security, security, durability, quality assurance. We spirit of "honesty, quality first, customer first, service leader," the case Purpose, passion for the community to provide the safest customers the best a variety of roll gates, but also provide comprehensive maintenance service.

Customers satisfaction is our eternal goal. We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.


F A Q :

1,Are you trading company or manufacturer ?

A: We are factory.
2. What's the payment details?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
3. What's the delivery time?
For common order, about 15 days only.
4. What about the warranty for the doors?
We provide 12 months warranty for all doors and accessories.
5. Do you provide OEM Service?
Yes. OEM & ODM Service is ok for us.
6. What's the MOQ?
We accept 1 set as sample order.
7. How about the package?
Plywood case, suitable for sea freight or air freight, as your request.
