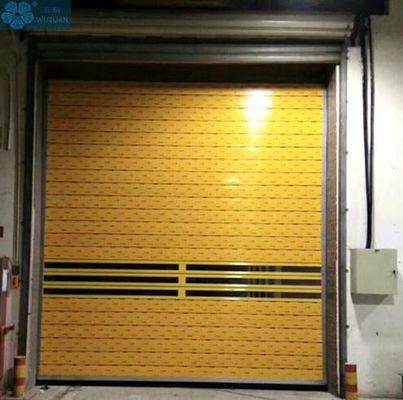

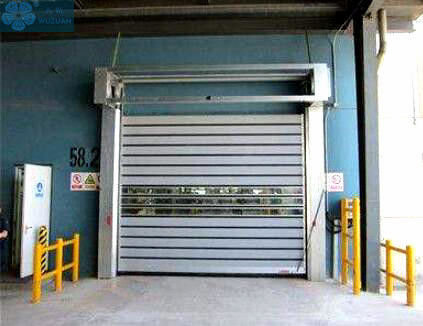

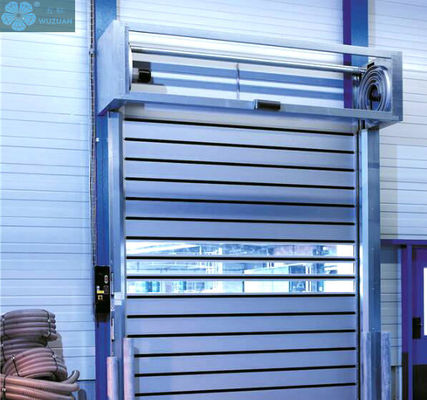

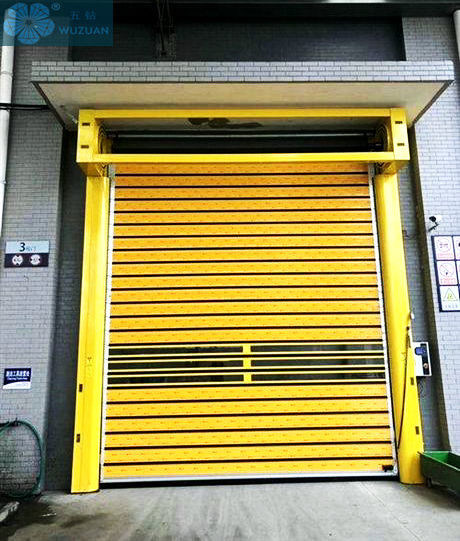

Burglarproof 220V 1.2m/S High Speed Spiral Door

Burglarproof 220V 1.2m/S High Speed Spiral Door
Burglarproof 220V 1.2m/S High Speed Spiral Door
video play

Large Image :  Burglarproof 220V 1.2m/S High Speed Spiral Door

Product Details:
Place of Origin: China
Brand Name: Wuzuan
Model Number: SD00010
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD1950-4850 per set
Packaging Details: wood case or strong paper carton
Delivery Time: 8 -15days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 300pcs per month
Detailed Product Description
Material: Galvanized Steel / Stainless Steel Color: Red, Blue, Green, Yellow, Orange, Gray, Black, White, Natural (customizable)
Opening Speed: 0.6m/s-1.2/s (adjustable) Applications: Garage, Supermarkets, Hypermarkets, Warehouses, Loading Docks, Platforms, Laboratories And Pavilions Etc. And Other Quick Passages.
Guide: Double Spiral Turbo Aluminum Rails, Door Rises When No Contact Between The Door And The Connecting Part. Door Frame: Enviromental Quality CNC Bending Galvanized Sheet Molding Thickness 2mm, External Appearance And Dustproof.
The Ways Of Operation: Radar, Geomagnetic Sensor, Bluetooth, Remote Control,manually Switch, Push Button. Wind Resistance: ≤ Grade 12
Filling Material: Polyurethane Foam Power Supply: 1-Phase 220V, Or 3-Phase 380V
Opening Speed: 2.5m/S Max Applicable Area: Both External And Internal
Surface Finishing: Finished Closing Speedt: 1.2m/S Max
Operation: Control Button, Remote Control Or Sensors HS Code: 853080000
High Light:

220V High Speed Spiral Door


1.2m/S High Speed Spiral Door


1.2m/S high speed door

Rapid Exterior Aluminum Security Energy Saving Rolling up Door Coiling Spiral Track High Speed Door


HengTaichang high speed spiral door has the great performance in reliability,durability.It is easy to be operated,low maintenance,PLC system we applied most advanced DSP Clip as the core part,in that case our spiral door can be safely operating up to 150,000 times every year under industrial application.Door panel is filled with high density PU foam and with 0.8mm thickness aluminum sheet.It is side connected with hard hinges and middle combined with rubber seals,panel would never be deformed and worn out.

Our hard high speed door adopts the airbags,infrared photoelectricity,and grating protection system in the antismashing system,which is therefore more secure.





1.Burglarproof and excellent thermal insalation:
The aluminum alloy rapid door panel is made of a double-layered aluminum plate at a time, and the surface is fine pressed stripe, which is anodized and organic colored, and filled with intermediate polyurethane foam. The middle internal broken bridge design can increase the heat preservation effect, prevent the indoor and outdoor temperature loss, and save energy. The surface of the door panel is subjected to 5 layers of organic coloring treatment, which greatly improves the corrosion resistance.
2.Torsion spring balance system:
inbuilt into the side guide rails. It counteracts the door weight and prolongs working life of motor by reducing its load.
3.Special spiral Design.
Realize high speed door openig and clsoing with no freication ,thus have long work life .
4.Emergency release device.
It can be easily opened by hand with this device, under emergency situations like power failure or electrical faults.
5.Great lighting performance.




1. Opening speed up to 2.5m/s, Closing speed up to 0.6~0.8m/s, Allow for improved traffic flow and enhanced customer perception.
2. Counterbalance system, spiral design reduce wear and increase door longevity, with minimal preventative maintenance.

3. No metal to metal contact reduces wear on the door panel and offers fast, quiet operation..


Technical Data:


Product name Aluminum alloy Coiling Spiral High Speed Door
Applications Garage, Supermarkets, hypermarkets, warehouses, loading docks, platforms, laboratories and pavilions etc. and other quick passages.
Materials Polyurethane foam filling, aluminum alloy, galvanized steel / stainless steel
Opening speed 0.6m/s-1.2m/s (adjustable)
Wind resistance ≤ grade 12
Security System Photocell ; Bottom security edge; security light curtain, multi-position, more secure (optional)
features & advantages Fast, insulated, energy saving, sealing, anti-theft, able to work 24 hours a day, can be used frequently; reliable. Strong and sturdy
Visible window can be added
Guide double spiral turbo aluminum rails, door rises when no contact between the door and the connecting part.
Door frame enviromental quality CNC bending galvanized sheet molding thickness 3mm, external appearance and dustproof.
The ways of operation Radar, geomagnetic sensor, Bluetooth, remote control,manually switch, push button.


Why Choose Us?

Over the years, our company has been working with the well-known manufacturers work closely with gated, has introduced the latest and most sophisticated production equipment of various volumes gate. The use of superior Quality raw materials and high-quality components, and adhere to the " excellence, precision production" product concept, to ensure the production of a variety of beautiful rolling door products Generous, easy operation, security, security, durability, quality assurance. We spirit of "honesty, quality first, customer first, service leader," the case Purpose, passion for the community to provide the safest customers the best a variety of roll gates, but also provide comprehensive maintenance service.

Customers satisfaction is our eternal goal. We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.


F A Q :

1,Are you trading company or manufacturer ?

A: We are factory.
2. What's the payment details?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
3. What's the delivery time?
For common order, about 15 days only.
4. What about the warranty for the doors?
We provide 12 months warranty for all doors and accessories.
5. Do you provide OEM Service?
Yes. OEM & ODM Service is ok for us.
6. What's the MOQ?
We accept 1 set as sample order.
7. How about the package?
Plywood case, suitable for sea freight or air freight, as your request.
