Dongguan Hengtaichang Intelligent Door Control Technology Co., Ltd.
Home ProductsHigh Speed Spiral Door

2m/S 220V High Speed Spiral Door For Warehouse

China Dongguan Hengtaichang Intelligent Door Control Technology Co., Ltd. certification
China Dongguan Hengtaichang Intelligent Door Control Technology Co., Ltd. certification
I'm Online Chat Now

2m/S 220V High Speed Spiral Door For Warehouse

2m/S 220V High Speed Spiral Door For Warehouse
2m/S 220V High Speed Spiral Door For Warehouse
video play

Large Image :  2m/S 220V High Speed Spiral Door For Warehouse

Product Details:
Place of Origin: China
Brand Name: Wuzuan
Model Number: SD0008
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD1950-4850 per set
Packaging Details: wood case or strong paper carton
Delivery Time: 8 -15days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 300pcs per month
Detailed Product Description
Material: Galvanized Steel / Stainless Steel Color: Red, Blue, Green, Yellow, Orange, Gray, Black, White, Natural (customizable)
Opening Speed: 0.6m/s-1.2/s (adjustable) Applications: Garage, Supermarkets, Hypermarkets, Warehouses, Loading Docks, Platforms, Laboratories And Pavilions Etc. And Other Quick Passages.
Guide: Double Spiral Turbo Aluminum Rails, Door Rises When No Contact Between The Door And The Connecting Part. Door Frame: Enviromental Quality CNC Bending Galvanized Sheet Molding Thickness 2mm, External Appearance And Dustproof.
The Ways Of Operation: Radar, Geomagnetic Sensor, Bluetooth, Remote Control,manually Switch, Push Button. Wind Resistance: ≤ Grade 12
Filling Material: Polyurethane Foam Power Supply: 1-Phase 220V, Or 3-Phase 380V
Opening Speed: 2.5m/S Max Applicable Area: Both External And Internal
Surface Finishing: Finished Closing Speedt: 1.2m/S Max
Operation: Control Button, Remote Control Or Sensors HS Code: 853080000
High Light:

220V High Speed Spiral Door


2m/S High Speed Spiral Door


2m/S high speed industrial doors

High Quantity Industrial Automatic Spiral High Speed Door Sandwich Panel Aluminum Warehouse Door


The high speed doors offers high-speed operation for high - traffic situations and rigid aluminum slat construction that eliminates the need for a second security door. Among high-speed doors, The hard high speed doors is revolutionary: Two door systems have been combined in a single design. It is a burglar-proof, weather-proof, high- speed exterior door to meet different demands. The hard high speed doors is an extremely fast, safe and reliable exterior doors. The door panel consists of double wall aluminum laths, thermally separated profiles provide for the best in heat insulation. Any require light entry will be constructed as necessary from multi-clearview laths of Acryglas. The widest range of equipment and extensive accessories distinguish the high-speed sprial doors as the model for the today's door technology.


Safety SystemPhotoelectric sensor:


installed on the side tracks, with emergency stopping reaction,when sensing obstaclesSafe edge bottom: when the people or vehicle touch the bottom edge of falling door,it bound up automaticallyEmergency stop protection: with emergency stop button on control panel.


1. High speed opening and closing
The running speed can reach 2m/s, 10 times as traditional roller shutter door. This obviously improves passing efficiency through it and enhances overall output.
2. High-strength

The door slat is very thick double aluminum slat, with good strength. It can protect inside goods or property by preventing theft or robbers. And the door can resist big wind pressure up to 120km/s wind speed, namely Wind Scale 12 class.

3. Good thermal-insulation

Double skin aluminum alloy slats , inside is filled with high-density insulating rock wool . Total Thickness of door panel: 43mm; With excellent thermal insulation performance. It can prevent thermal loss of the cold room and save energy

4. Excellent safety performance
Dual protection design. Every door is equipped with safety photo sensor and proximity sensor, avoiding collision accidents and protecting passing human or vehicles.

5. High frequency operation
The operation frequency can reach more than 1000 times per day without any faults. This meets need of heavy traffic in some areas.



All kinds of Factories, Warehouses, Packaging industry, Chemical industry, Machinery industry,Loading bays.


Product name Aluminum alloy Coiling Spiral High Speed Door
Applications Garage, Supermarkets, hypermarkets, warehouses, loading docks, platforms, laboratories and pavilions etc. and other quick passages.
Materials Polyurethane foam filling, aluminum alloy, galvanized steel / stainless steel
Opening speed 0.6m/s-1.2m/s (adjustable)
Wind resistance ≤ grade 12
Security System Photocell ; Bottom security edge; security light curtain, multi-position, more secure (optional)
features & advantages Fast, insulated, energy saving, sealing, anti-theft, able to work 24 hours a day, can be used frequently; reliable. Strong and sturdy
Visible window can be added

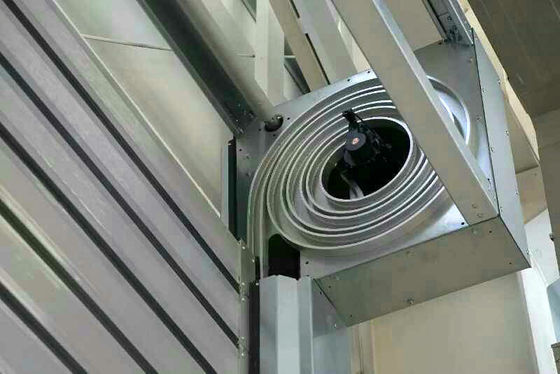

Guide double spiral turbo aluminum rails, door rises when no contact between the door and the connecting part.
Door frame enviromental quality CNC bending galvanized sheet molding thickness 3mm, external appearance and dustproof.
The ways of operation Radar, geomagnetic sensor, Bluetooth, remote control,manually switch, push button.


About Us


Established in 2006, HengTaichang Intelligent gate control technology co., LTD is a leading manufacturer of automatic doors. We are located in Dongguan as known as " factory of the world" , . It is very convenient to all over the world by air or sea.
HengTaichang Is a high-tech company that integrates development, design, production, installation, sales,service and after-sales as one of the professional manufacturers, Over the years, we have designed, developed and manufactured a wide range of automatic doors, such as high speed rolling curtain doors, Industrial sliding door, Rapid metal shutter door, rapid accumulation of doors, silent roller shutter door, commerce crystal folding door, Fire Proof & Blast Proof Door, Hard Rapid Turbo Roller Door, remote control sectional garage door, remote roller shutter window and so on.


F A Q :

1,Are you trading company or manufacturer ?

A: We are factory.
2. What's the payment details?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
3. What's the delivery time?
For common order, about 15 days only.
4. What about the warranty for the doors?
We provide 12 months warranty for all doors and accessories.
5. Do you provide OEM Service?
Yes. OEM & ODM Service is ok for us.
6. What's the MOQ?
We accept 1 set as sample order.
7. How about the package?
Plywood case, suitable for sea freight or air freight, as your request.
