Dongguan Hengtaichang Intelligent Door Control Technology Co., Ltd.
Home ProductsHigh Speed Spiral Door

2mm Aluminum 1.2 M/S High Speed Door For Store

China Dongguan Hengtaichang Intelligent Door Control Technology Co., Ltd. certification
China Dongguan Hengtaichang Intelligent Door Control Technology Co., Ltd. certification
I'm Online Chat Now

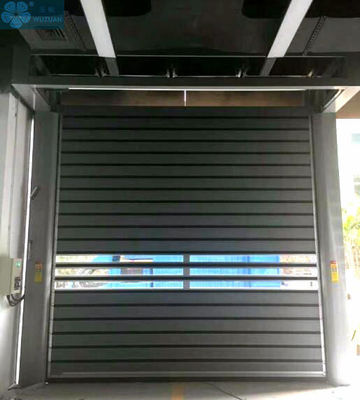

2mm Aluminum 1.2 M/S High Speed Door For Store

2mm Aluminum 1.2 M/S High Speed Door For Store
2mm Aluminum 1.2 M/S High Speed Door For Store
video play

Large Image :  2mm Aluminum 1.2 M/S High Speed Door For Store

Product Details:
Place of Origin: China
Brand Name: Wuzuan
Model Number: SD0006
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD1950-4850 per set
Packaging Details: wood case or strong paper carton
Delivery Time: 7-15days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000 sets per month
Detailed Product Description
Material: Galvanized Steel / Stainless Steel Color: Red, Blue, Green, Yellow, Orange, Gray, Black, White, Natural (customizable)
Opening Speed: 0.6m/s-1.2/s (adjustable) Applications: Garage, Supermarkets, Hypermarkets, Warehouses, Loading Docks, Platforms, Laboratories And Pavilions Etc. And Other Quick Passages.
Guide: Double Spiral Turbo Aluminum Rails, Door Rises When No Contact Between The Door And The Connecting Part. Door Frame: Enviromental Quality CNC Bending Galvanized Sheet Molding Thickness 2mm, External Appearance And Dustproof.
The Ways Of Operation: Radar, Geomagnetic Sensor, Bluetooth, Remote Control,manually Switch, Push Button. Wind Resistance: ≤ Grade 12
Filling Material: Polyurethane Foam Power Supply: 1-Phase 220V, Or 3-Phase 380V
Opening Speed: 2.5m/S Max Applicable Area: Both External And Internal
Surface Finishing: Finished Closing Speedt: 1.2m/S Max
Operation: Control Button, Remote Control Or Sensors Frame Material: Powder Coated Galvanized Steel Or Stainless Steel
Work Life: 1.5 Million Cycles HS Code: 853080000
Function: High Cycle Using And Lower Production Cost Door Type: High Speed Spiral Door
High Light:

2mm aluminum High Speed Door


1.2 m/s High Speed Door


2mm aluminum speed roll up doors

High Speed Exterior Rolling Door Fast Aluminum Roller up Door Rapid Spiral Door


high speed spiral door has the great performance in reliability,durability.It is easy to be operated,low maintenance,PLC system we applied most advanced DSP Clip as the core part,in that case our spiral door can be safely operating up to 150,000 times every year under industrial application.Door panel is filled with high density PU foam and with 0.8mm thickness aluminum sheet.It is side connected with hard hinges and middle combined with rubber seals,panel would never be deformed and worn out.

Our hard high speed door adopts the airbags,infrared photoelectricity,and grating protection system in the antismashing system,which is therefore more secure.



1.The Spiral door is made of aluminum alloy with thickness of 2 MM. The width of curtain is 100 MM, and the total thickness of door panel is 15.5 MM. The surface is sprayed or oxidized, and the colors are diverse and can be customized according to the needs of customers.
2.Biggest Advantage: Strong adaptability.
3.Small Shutter Box: The height of the box is only 400 MM-500 MM, so that the product can be installed in reserved space that is smaller than the space required for common doors.
4.Unique Conveyor Belt Track: The soft rubber wheel conveyor belt replaces the sliding friction with rolling friction and reduces the resistance. This makes the hard fast door can still be opened smoothly and easily in the event of strong wind.
5.Brush: On the basis of conveyor belt, brushes are added to obtain better sealing and dustproof effect.
6.Switch Tolerance Times: The product can withstand up to 100,000 opening and closing in a maintenance cycle. It can be seen that its performance is very excellent. Therefore, this product is also suitable to be an outer door.
Technical Parameters
Opening Speed 1.2 m/s ~ 2.5 m/s, adjustable
Closing Speed 0.6 m/s, adjustable
Width of Panel 220 mm
Thickness of Panel 40 mm
Door Panel Thickness of Aluminum is 1.5 mm
Anodized surface Organic coloring treatment
Polyurethane (without CFC), Retardants Color: Gray, aluminum color, white, red, beige
Vertical track Aluminum, Thickness:10mm
Vertical cover box Baosteel galvanized sheet, thickness :2.0mm, 3.0mm
Spiral cover box Baosteel galvanized sheet, thickness : 3.0mm-5.0mm
Gas tightness 8.68 m ³ / (m ² • h),national standard level 3
Heat preservation K≤1.5W/(m ² • h)

Why Choose Us?

Over the years, our company has been working with the well-known manufacturers work closely with gated, has introduced the latest and most sophisticated production equipment of various volumes gate. The use of superior Quality raw materials and high-quality components, and adhere to the " excellence, precision production" product concept, to ensure the production of a variety of beautiful rolling door products Generous, easy operation, security, security, durability, quality assurance. We spirit of "honesty, quality first, customer first, service leader," the case Purpose, passion for the community to provide the safest customers the best a variety of roll gates, but also provide comprehensive maintenance service.

Customers satisfaction is our eternal goal. We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.

F A Q :

1,Are you trading company or manufacturer ?
A: We are factory.

2. What's the payment details?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

3. What's the delivery time?
For common order, about 15 days only.

4. What about the warranty for the doors?
We provide 12 months warranty for all doors and accessories.

5. Do you provide OEM Service?
Yes. OEM & ODM Service is ok for us.

6. What's the MOQ?
We accept 1 set as sample order.

7. How about the package?
Plywood case, suitable for sea freight or air freight, as your request.
