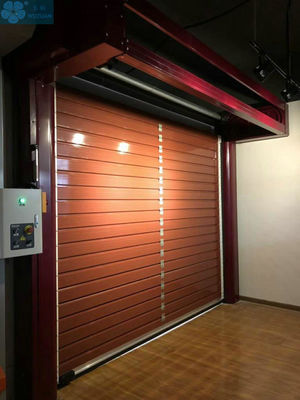

Aluminum Alloy 2m/S DC24V High Speed Spiral Door

China Dongguan Hengtaichang Intelligent Door Control Technology Co., Ltd. certification
China Dongguan Hengtaichang Intelligent Door Control Technology Co., Ltd. certification
I'm Online Chat Now

Aluminum Alloy 2m/S DC24V High Speed Spiral Door

Aluminum Alloy 2m/S DC24V High Speed Spiral Door
Aluminum Alloy 2m/S DC24V High Speed Spiral Door
video play

Large Image :  Aluminum Alloy 2m/S DC24V High Speed Spiral Door

Product Details:
Place of Origin: China
Brand Name: Wuzuan
Model Number: SD0003
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD1950-4850 per set
Packaging Details: wood case or strong paper carton
Delivery Time: 8 -15days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 300pcs per month
Detailed Product Description
Material: Galvanized Steel / Stainless Steel Color: Red, Blue, Green, Yellow, Orange, Gray, Black, White, Natural (customizable)
Opening Speed: 0.6m/s-1.2/s (adjustable) Applications: Garage, Supermarkets, Hypermarkets, Warehouses, Loading Docks, Platforms, Laboratories And Pavilions Etc. And Other Quick Passages.
Guide: Double Spiral Turbo Aluminum Rails, Door Rises When No Contact Between The Door And The Connecting Part. Door Frame: Enviromental Quality CNC Bending Galvanized Sheet Molding Thickness 2mm, External Appearance And Dustproof.
The Ways Of Operation: Radar, Geomagnetic Sensor, Bluetooth, Remote Control,manually Switch, Push Button. Wind Resistance: ≤ Grade 12
Filling Material: Polyurethane Foam Power Supply: 1-Phase 220V, Or 3-Phase 380V
Opening Speed: 2.5m/S Max Applicable Area: Both External And Internal
Surface Finishing: Finished Closing Speedt: 1.2m/S Max
Operation: Control Button, Remote Control Or Sensors HS Code: 853080000
High Light:

2m/S High Speed Spiral Door

,

DC24V High Speed Spiral Door

,

DC24V high speed rolling doors

High Quality Aluminum Alloy Pu Insulated Spiral High Speed Door Rapid Hard Material Spiral Door



high speed spiral door is a new brand metal rapid industrial door with anti-theft,save energy,good sealing,high efficiency,anti-wind.It is used to logictics channel for Fast and frequent use,the maximum opening speed of the door is 2.35m/s.those door is able to save more cost and reduce energy loss for many enterprises.it can save about 50% energy loss than common sectional garage door,metal roller shutter door and others door.


Aluminum Spiral High Speed Rolling Door panel Spiral Steel Rolling Shutter Door features



Practical and durable
The operation of hard fast door equipment is very efficient, and the whole process flow does not occur. In addition, the probability of equipment failure in long-term use is very small and more durable, thereby increasing the utilization of the door.
Reliable collision
The door device has a unique anti-collision design, which ensures that the door device does not directly collide with other objects during operation, avoiding damage to the door device or damage to other objects, and is more worry-free to use.
High speed stability
As the name suggests, the door device has a very fast running speed. The fast door manufacturer adopts the variable frequency motor technology, and the running speed can also be adjusted. The running speed is high and stable, and it is trustworthy!
Energy saving and environmental protectioThe advanced AC variable frequency motor drive technology adopted by the fast door manufacturer can realize the function of energy saving and environmental protection while ensuring the operation of the door equipment, and can reduce the loss of equipment operation as much as possible.
Strong and sturdy
The quick door manufacturer has optimized the structure of the door body to ensure the longevity of the equipment and ensure that the equipment is durable and free from other factors during a long period of use.
Windproof seal
Fast door manufacturers' products have very good wind resistance, can provide users with a very good sealing environment, and at the same time have very good sound insulation, insect proof, dustproof and other functions.
Easy to maintain
The product has a simple structural design and fewer internal movable parts. This design can improve the stability of the equipment, reduce the cycle of parts replacement and maintenance, and facilitate post-maintenance and maintenance

Motor
Aluminum Spiral High Speed Rolling Door panel Spiral Steel Rolling Shutter Door with foam insulation can be equipped with servo motor and three-phase asynchronous motor, and canprovide domestic or imported motor according to customer requirements.

The advantage of servo motors
1.Accuracy: realizes closed-loop control of position, speed and torque; overcomes the problem of stepping motor out of step
2.The speed: high-speed performance is good, the general rated speed can reach 2000 ~ 3000 rpm
3. Adaptability: It has strong anti-overload capability and can withstand three times the rated torque. It is especially suitable for occasions with transient load fluctuations and quick start.
4. Stable: It runs smoothly at low speed, and does not produce stepping operation similar to stepper motor when running at low speed. Suitable for occasions with high speed response requirement.
5. Timeliness: The dynamics of motor acceleration and deceleration are short, generally within tens of milliseconds.
6.Comfort: heat and noise are significantly reduced.



Packaging
Polywood box packaging for each completely set will loading full container or LCL order .



Specification:



Detail Information:
Opening Speed 0.7 ~ 2m/s
Interior / Exterior Door Suitable
Material Aluminum Slat, Double Layer with PU Foaming Core
Max Width 7000mm
Min/Max H 1200mm / 7000mm
Door Curtain Thickness 40mm Total thickness
Drive Unit Electric / IP55
Safety Sensor Electric safety edge
Safety photovell
Control voltage 24V DC
Motor Brand SEW German
Servo System China
Control Brand Mitsubishi Japan
Servo China

Command System Remote control, Radar sensor, Floor sensor, Rope switch, Key cards etc




Aluminum Alloy 2m/S DC24V High Speed Spiral Door 0



About Us



Established in 2006, HengTaichang Intelligent gate control technology co., LTD is a leading manufacturer of automatic doors. We are located in Dongguan as known as " factory of the world" , . It is very convenient to all over the world by air or sea.

HengTaichang Is a high-tech company that integrates development, design, production, installation, sales,service and after-sales as one of the professional manufacturers, Over the years, we have designed, developed and manufactured a wide range of automatic doors, such as high speed rolling curtain doors, Industrial sliding door, Rapid metal shutter door, rapid accumulation of doors, silent roller shutter door, commerce crystal folding door, Fire Proof & Blast Proof Door, Hard Rapid Turbo Roller Door, remote control sectional garage door, remote roller shutter window and so on.

F A Q :

1,Are you trading company or manufacturer ?
A: We are factory.

2. What's the payment details?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

3. What's the delivery time?
For common order, about 15 days only.

4. What about the warranty for the doors?
We provide 12 months warranty for all doors and accessories.

5. Do you provide OEM Service?
Yes. OEM & ODM Service is ok for us.

6. What's the MOQ?
We accept 1 set as sample order.

7. How about the package?
Plywood case, suitable for sea freight or air freight, as your request.
