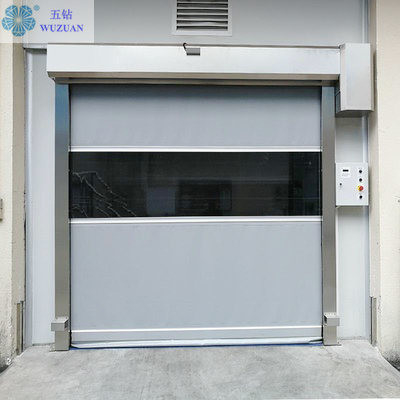

High Grade China Rapid Roller Shutter Door Fast Rolling High Speed Roll up Door

Detailed Product Description
Surface Finishing: Finished Size: Customized Size, According To Clients′ Specificati
Standard Motor Position: Left Or Right Opening Speed: 0.7~1.2m/S
Curtain Thickness: 0.8mm/1.5mm Frame Material: Aluminum/Stainless Steel
Control System: Dfl PLC / Holip PLC Or Other Components. Motor Brand: Sew / Powever / Damar Or Customized
Motor Power: 550W / 750W / 1500W / 2200W / 4000W/5500W Power: 0.75kw ~ 3.0kw(According To The Size Of Door)
Opening & Colsing Speed: 0.7~1.5m/S Operation Frequency: 1000~1500 Cycles/Day
Wind Load: 15m/S Transport Package: Wood Case Or Strong Paper Carton
Origin: China HS Code: 73083000
Supply Ability: 8000 Sets / Year Warranty: 2 Years
Material: PVC Fabric Type: Rolling
Opening Type: With Remote Control Certification: ISO9001
Position: Industrial Customization: Available | Customized Request

Product Description

Company Info.

Customer Question & Answer
Ask something for more details

Basic Info.

Surface Finishing
Customized Size, According to Clients′ Specificati
Standard Motor Position
Left or Right
Opening Speed
Curtain Thickness
Frame Material
Aluminum/Stainless Steel
Control System
Dfl PLC / Holip PLC or Other Components.
Motor Brand
Sew / Powever / Damar or Customized
Motor Power
550W / 750W / 1500W / 2200W / 4000W/5500W
0.75kw ~ 3.0kw(According to The Size of Door)
Opening & Colsing Speed
Operation Frequency
1000~1500 Cycles/Day
Wind Load
Transport Package
Wood Case or Strong Paper Carton
HS Code
Production Capacity
8000 Sets / Year

Product Description

High Grade China Rapid Roller Shutter Door Fast Rolling High Speed Roll Up Door

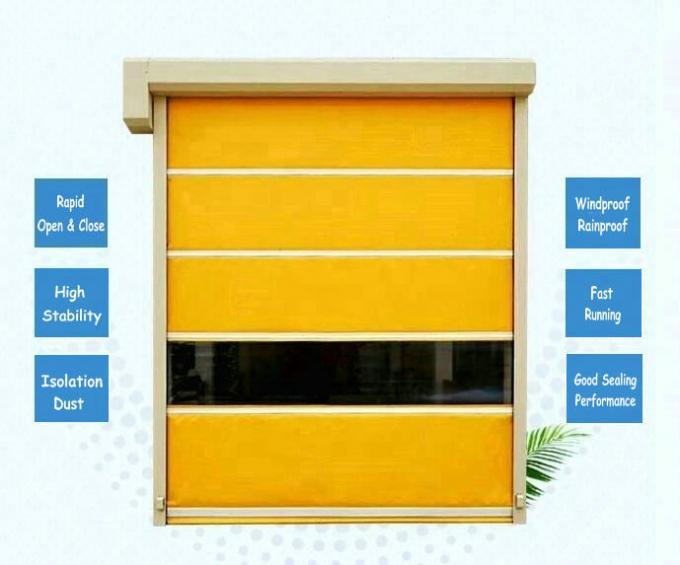

Hengtaichang high speed rolling shutter doors are designed for fast open and close, allowing people and/or equipment to move quickly through the opening. This type of doors is ideal for large size opening and designed for high performance daily use both internally and externally with minimal maintenance. The door operated as speed > 1m/s, this model doors offers beneficial energy saving in both commercial and industrial application. In additional it reduces noise and dust from nearby working areas. It was ideally choice for many commercial and industrial application

High Grade China Rapid Roller Shutter Door Fast Rolling High Speed Roll up Door

Fiber: industrial environmental protection high strength polyester fiber, double PVC coating, a variety of color selection (Yellow, red, blue, silver, ect.) Anti-corrosive, prevent ultraviolet ray, prevent salt, thickness of 0.9mm. Origin: Belgium.


Window Part: Transparent window part material is not easy aging, not variant, antifreeze performance is good, not sun crack in the winter


Aluminum Bar: Professional enhanced industrial aluminum alloy wind resistance reinforcement, thickness:3.0-5.0mm, low maintenance cost.


Sealing brush: Built-in brush seal,is better than traditoinal lateral seal brush seal, The bottom is equipped with increasing gas insulation cloth, can be closely integrated with ground.


Control system: Traditional mechanical limit switch combined with electronic limit switch, dual protection, the use of advanced science and technology, adopt high quality frequency converter and PLC control circuit,motor soft start,slow stop,

prolong the service life of the motor,Running speed is 0.6 ~ 1.5 M/S, can be adjusted according to customer needs, more humane; Rotary encoder limit, more stable,simple to set up.Door operation management, the data parameters,according to the actual need to adjust.


Overhead Shell: High quality steel plate welding, surface anti-corrosion treatment, is not easy to rust,beautiful and strong.


Motor shell with guide rail way:Motor shell made by China brand production manufacture,high quality of galvanized sheet fluor-carbon painting process, the rails thickness is 3.5mm aluminum alloy which is used in industry,surface oxidation treatment. Rail surface with bright decoration article,so the whole boday more coordinate and beautiful.

Power system: high-speed door power 220v/380v special brake motor,power 0.75KW/1.5KW/1500s/roll. bearing heavy load type S4.Can be manual when power off.


Infrared Security system: effectively prevent hit people.


Door and switch operation: Magnetism switch,control button,rocker,the external switch box,infrared security system.


Open ways when power off: Rocker,the reserve power supply.

High Grade China Rapid Roller Shutter Door Fast Rolling High Speed Roll up Door

High Grade China Rapid Roller Shutter Door Fast Rolling High Speed Roll up Door


High Grade China Rapid Roller Shutter Door Fast Rolling High Speed Roll up Door

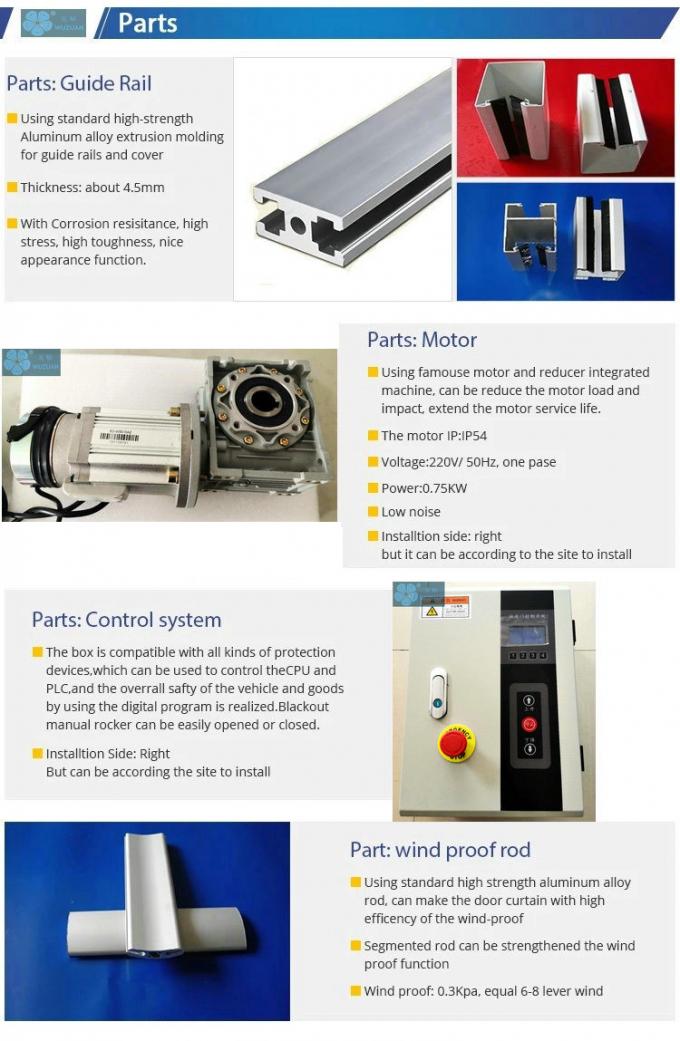

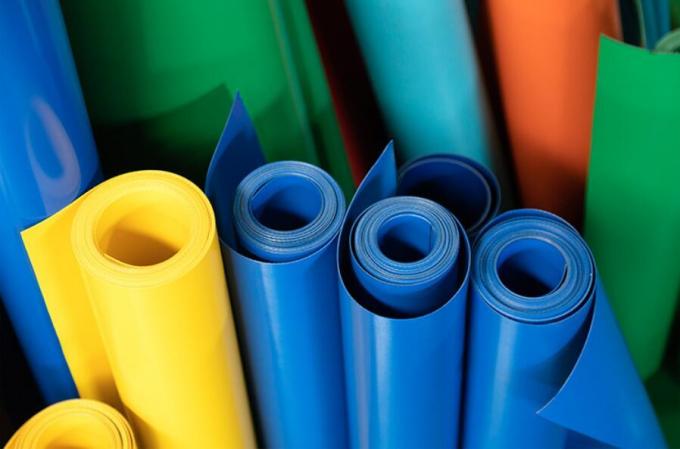

Raw Material Show:High Grade China Rapid Roller Shutter Door Fast Rolling High Speed Roll up Door

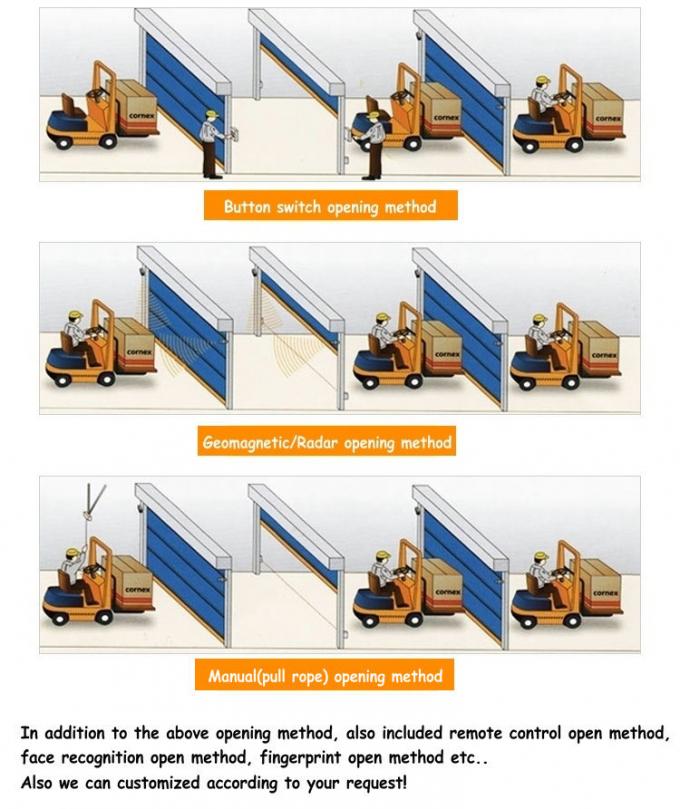

Open Ways:

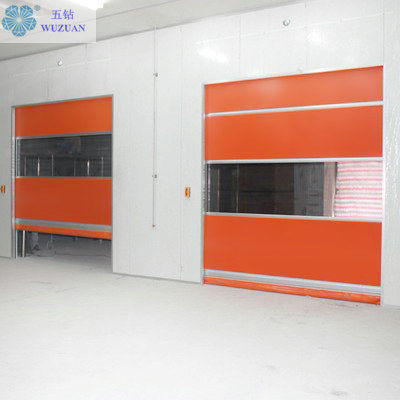

High Grade China Rapid Roller Shutter Door Fast Rolling High Speed Roll up Door


High Grade China Rapid Roller Shutter Door Fast Rolling High Speed Roll up Door



1. Door curtain: High strength polyster textile fiber
2. Curtain thickness: 0.8 - 1.2 mm
3. Opening speed: 0.8 - 1.5 M/S
4. Closing speed: 0.6 - 1.0 M/S
5. Side Rail options: 2.0mm thick cold-roll steel sheet (Bao Steel) / 2.0mm thick stainless steel
6. Tube shaft: 114mm diameter / 2.5mm thickness round tube
7. Cover box options: 1.0mm thick cold-roll steel shett (Bao Steel ) / 1.0mm thick stainless steel
8. Motor brand: SEW / Powever / Damar
9. Motor power: 550W / 750W / 1500W / 2200W / 4000W / 5500W
10. Control box: HOLIP / DFL
11. Safety performance: Airbag / Photo cell

12. Optional control mode:Loop Sensor, Radar, Remote control, Linkage interlock, Pull rope, etc..


Control SystemDFL PLC / Holip PLCand other components.
Dynamical SystemsMotor: SEW / Powever / Damar or Nord from Germany Factory.(China unit: Powever/SERVO system)
Most stable brake system or Advanced Servo System, 220V~380V/50 -60HZ
Power: 0.75kw ~ 3.0kw(According to the size of door)

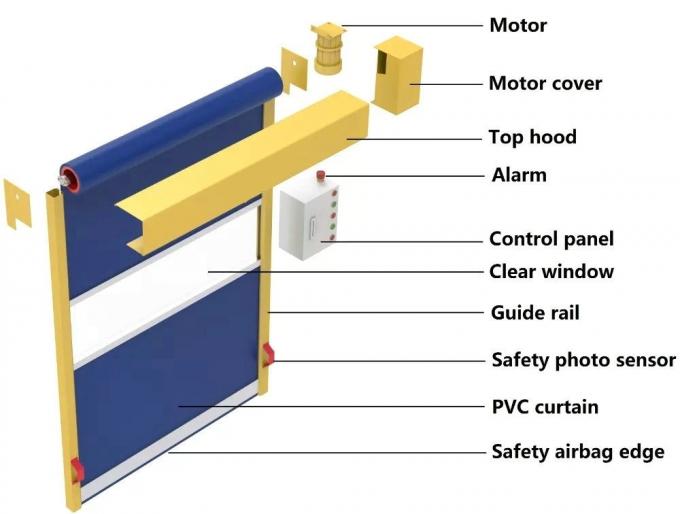

Fast Speed Gate Construction
FrameworkIn 2mm thickness cold-roll steel sheet or on request in Stainless steel INOX201/304, Plaint color accordingly to your order
Rolling Drum2mm thickness steel/Galvanized rube with machined blacks at each side and incorporating high-speed bearing.
Cross BarNormal in aluminum rod for small doors. Additional with Steel pipe for large opening and high-wind application.
ColorRed/Yellow/Blue/Sky blue/Orange/Mesh white and yellow/White/Green/Black/Grey.
Transparent WindowTransparent pvc sheet 1.5mm thickness. Window sizes and loaction accordingly to your requirement.

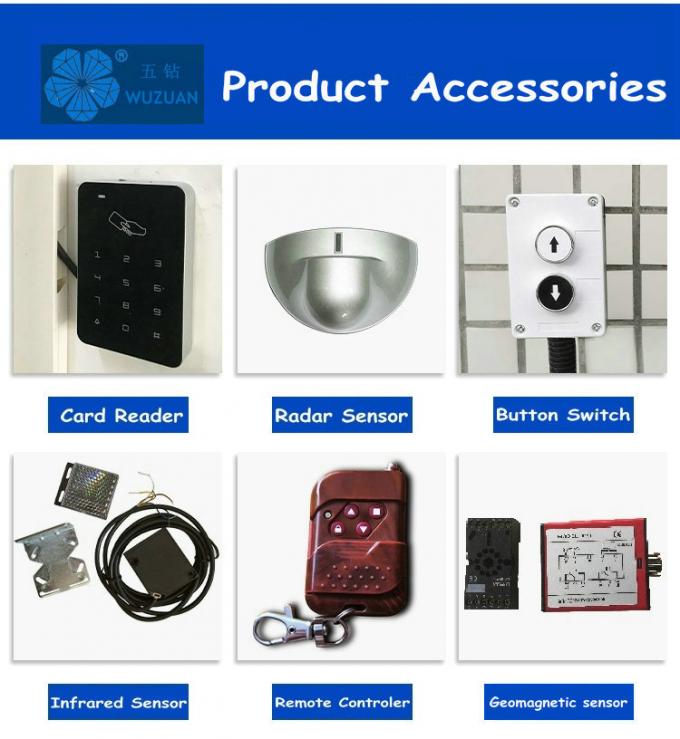

Command SystemMagnetic Loop/Radar Sensor/Rope switch/Remote Control/Finger printer/Bluetooth/Key card etc.
Safety System & Seal
Photocell SensorInstalled ont he side track with emergency rebound opening when sensing obstacles.
Safety edge bottomWhen the people or vehicle touch the bottom edge of closing doors, It bound up automaticlly.
Emergency stop protectionWith emergency stop button on the main control board.
SealSeal brush are installed inside of guider rail. Besides there is trap heavier fabric on the bottom, Close to any uneven ground.
Technical ParameterPower Supply: Single or Three phase 220V~260V.. Three phase 380V~460V. 50/60HZ.
Max Size: 10m width * 15m height
Opening & Colsing speed: 0.7~1.5m/S
Operation Frequency: 1000~1500 Cycles/Day
Wind load: 15m/S
