Dongguan Hengtaichang Intelligent Door Control Technology Co., Ltd.
Home ProductsPVC Roller Shutter Doors

Supplier Roller Fast Rolling Automatic Aluminium Door Shutter Operated High Speed PVC Door

China Dongguan Hengtaichang Intelligent Door Control Technology Co., Ltd. certification
China Dongguan Hengtaichang Intelligent Door Control Technology Co., Ltd. certification
I'm Online Chat Now

Supplier Roller Fast Rolling Automatic Aluminium Door Shutter Operated High Speed PVC Door

Detailed Product Description
Size: Customized Size, According To Clients′ Specificati Standard Motor Position: Left Or Right
Opening Speed: 0.7~1.2m/S Curtain Thickness: 0.8mm/1.5mm
Frame Material: Aluminum/Stainless Steel Control System: Dfl PLC / Holip PLC Or Other Components.
Motor Brand: Sew / Powever / Damar Or Customized Motor Power: 550W / 750W / 1500W / 2200W / 4000W/5500W
Power: 0.75kw ~ 3.0kw(According To The Size Of Door) Opening & Colsing Speed: 0.7~1.5m/S
Operation Frequency: 1000~1500 Cycles/Day Wind Load: 15m/S
Transport Package: Wood Case Or Strong Paper Carton Origin: China
HS Code: 73083000 Supply Ability: 8000 Sets / Year
Warranty: 2 Years Material: PVC Fabric
Type: Rolling Opening Type: With Remote Control
Certification: ISO9001 Surface Finishing: Finished
Customization: Available | Customized Request

Product Description

Company Info.

Customer Question & Answer
Ask something for more details

Basic Info.

Size
Customized Size, According to Clients′ Specificati
Standard Motor Position
Left or Right
Opening Speed
0.7~1.2m/S
Curtain Thickness
0.8mm/1.5mm
Frame Material
Aluminum/Stainless Steel
Control System
Dfl PLC / Holip PLC or Other Components.
Motor Brand
Sew / Powever / Damar or Customized
Motor Power
550W / 750W / 1500W / 2200W / 4000W/5500W
Power
0.75kw ~ 3.0kw(According to The Size of Door)
Opening & Colsing Speed
0.7~1.5m/S
Operation Frequency
1000~1500 Cycles/Day
Wind Load
15m/S
Transport Package
Wood Case or Strong Paper Carton
Origin
China
HS Code
73083000
Production Capacity
8000 Sets / Year

Product Description

Supplier Roller Fast Rolling Automatic aluminium door Shutter Operated High Speed PVC Door

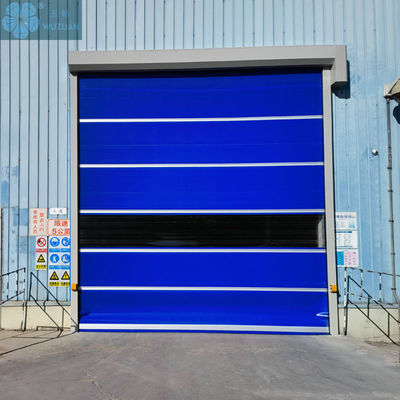

Hengtaichang high speed rolling shutter doors are designed for fast open and close, allowing people and/or equipment to move quickly through the opening. This type of doors is ideal for large size opening and designed for high performance daily use both internally and externally with minimal maintenance. The door operated as speed > 1m/s, this model doors offers beneficial energy saving in both commercial and industrial application. In additional it reduces noise and dust from nearby working areas. It was ideally choice for many commercial and industrial application

Supplier Roller Fast Rolling Automatic Aluminium Door Shutter Operated High Speed PVC Door

Fiber: industrial environmental protection high strength polyester fiber, double PVC coating, a variety of color selection (Yellow, red, blue, silver, ect.) Anti-corrosive, prevent ultraviolet ray, prevent salt, thickness of 0.9mm. Origin: Belgium.



Window Part: Transparent window part material is not easy aging, not variant, antifreeze performance is good, not sun crack in the winter



Aluminum Bar: Professional enhanced industrial aluminum alloy wind resistance reinforcement, thickness:3.0-5.0mm, low maintenance cost.



Sealing brush: Built-in brush seal,is better than traditoinal lateral seal brush seal, The bottom is equipped with increasing gas insulation cloth, can be closely integrated with ground.



Control system: Traditional mechanical limit switch combined with electronic limit switch, dual protection, the use of advanced science and technology, adopt high quality frequency converter and PLC control circuit,motor soft start,slow stop,

prolong the service life of the motor,Running speed is 0.6 ~ 1.5 M/S, can be adjusted according to customer needs, more humane; Rotary encoder limit, more stable,simple to set up.Door operation management, the data parameters,according to the actual need to adjust.



Overhead Shell: High quality steel plate welding, surface anti-corrosion treatment, is not easy to rust,beautiful and strong.



Motor shell with guide rail way:Motor shell made by China brand production manufacture,high quality of galvanized sheet fluor-carbon painting process, the rails thickness is 3.5mm aluminum alloy which is used in industry,surface oxidation treatment. Rail surface with bright decoration article,so the whole boday more coordinate and beautiful.

Power system: high-speed door power 220v/380v special brake motor,power 0.75KW/1.5KW/1500s/roll. bearing heavy load type S4.Can be manual when power off.



Infrared Security system: effectively prevent hit people.



Door and switch operation: Magnetism switch,control button,rocker,the external switch box,infrared security system.



Open ways when power off: Rocker,the reserve power supply.


Supplier Roller Fast Rolling Automatic Aluminium Door Shutter Operated High Speed PVC Door

Supplier Roller Fast Rolling Automatic Aluminium Door Shutter Operated High Speed PVC Door

Brush:


Supplier Roller Fast Rolling Automatic Aluminium Door Shutter Operated High Speed PVC Door


Raw Material Show:Supplier Roller Fast Rolling Automatic Aluminium Door Shutter Operated High Speed PVC Door


Open Ways:


Supplier Roller Fast Rolling Automatic Aluminium Door Shutter Operated High Speed PVC Door


Structures:


Supplier Roller Fast Rolling Automatic Aluminium Door Shutter Operated High Speed PVC Door



Specification.

1. Door curtain: High strength polyster textile fiber
2. Curtain thickness: 0.8 - 1.2 mm
3. Opening speed: 0.8 - 1.5 M/S
4. Closing speed: 0.6 - 1.0 M/S
5. Side Rail options: 2.0mm thick cold-roll steel sheet (Bao Steel) / 2.0mm thick stainless steel
6. Tube shaft: 114mm diameter / 2.5mm thickness round tube
7. Cover box options: 1.0mm thick cold-roll steel shett (Bao Steel ) / 1.0mm thick stainless steel
8. Motor brand: SEW / Powever / Damar
9. Motor power: 550W / 750W / 1500W / 2200W / 4000W / 5500W
10. Control box: HOLIP / DFL
11. Safety performance: Airbag / Photo cell

12. Optional control mode:Loop Sensor, Radar, Remote control, Linkage interlock, Pull rope, etc..



Control SystemDFL PLC / Holip PLCand other components.
Dynamical SystemsMotor: SEW / Powever / Damar or Nord from Germany Factory.(China unit: Powever/SERVO system)
Most stable brake system or Advanced Servo System, 220V~380V/50 -60HZ
Power: 0.75kw ~ 3.0kw(According to the size of door)
Fast Speed Gate Construction
FrameworkIn 2mm thickness cold-roll steel sheet or on request in Stainless steel INOX201/304, Plaint color accordingly to your order
Rolling Drum2mm thickness steel/Galvanized rube with machined blacks at each side and incorporating high-speed bearing.
Cross BarNormal in aluminum rod for small doors. Additional with Steel pipe for large opening and high-wind application.
ColorRed/Yellow/Blue/Sky blue/Orange/Mesh white and yellow/White/Green/Black/Grey.
Transparent WindowTransparent pvc sheet 1.5mm thickness. Window sizes and loaction accordingly to your requirement.
Command SystemMagnetic Loop/Radar Sensor/Rope switch/Remote Control/Finger printer/Bluetooth/Key card etc.
Safety System & Seal
Photocell SensorInstalled ont he side track with emergency rebound opening when sensing obstacles.
Safety edge bottomWhen the people or vehicle touch the bottom edge of closing doors, It bound up automaticlly.
Emergency stop protectionWith emergency stop button on the main control board.
SealSeal brush are installed inside of guider rail. Besides there is trap heavier fabric on the bottom, Close to any uneven ground.
Technical ParameterPower Supply: Single or Three phase 220V~260V.. Three phase 380V~460V. 50/60HZ.
Max Size: 10m width * 15m height
Opening & Colsing speed: 0.7~1.5m/S
Operation Frequency: 1000~1500 Cycles/Day
Wind load: 15m/S

Why Choose Us?


Customers satisfaction is our eternal goal. We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.


Over the years, our company has been working with the well-known manufacturers work closely with gated, has introduced the latest and most sophisticated production equipment of various volumes gate. The use of superior Quality raw materials and high-quality components, and adhere to the " excellence, precision production" product concept, to ensure the production of a variety of beautiful rolling door products Generous, easy operation, security, security, durability, quality assurance. We spirit of "honesty, quality first, customer first, service leader," the case Purpose, passion for the community to provide the safest customers the best a variety of roll gates, but also provide comprehensive maintenance service.



F A Q :


1,Are you trading company or manufacturer ?

A: We are factory.
2. What's the payment details?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
3. What's the delivery time?
For common order, about 15 days only.
4. What about the warranty for the doors?
We provide 12 months warranty for all doors and accessories.
5. Do you provide OEM Service?
Yes. OEM & ODM Service is ok for us.
6. What's the MOQ?
We accept 1 set as sample order.
7. How about the package?
Plywood case, suitable for sea freight or air freight, as your request.
