Product Details:
|
Size: | Customized Size, According To Clients′ Specificati | Standard Motor Position: | Left Or Right |
---|---|---|---|
Opening Speed: | 0.7~1.2m/S | Curtain Thickness: | 0.8mm/1.5mm |
Frame Material: | Aluminum/Stainless Steel | Control System: | Dfl PLC / Holip PLC Or Other Components. |
Motor Brand: | Sew / Powever / Damar Or Customized | Motor Power: | 550W / 750W / 1500W / 2200W / 4000W/5500W |
Power: | 0.75kw ~ 3.0kw(According To The Size Of Door) | Opening & Colsing Speed: | 0.7~1.5m/S |
Operation Frequency: | 1000~1500 Cycles/Day | Wind Load: | 15m/S |
Transport Package: | Wood Case Or Strong Paper Carton | Origin: | China |
HS Code: | 73083000 | Supply Ability: | 8000 Sets / Year |
Warranty: | 2 Years | Material: | PVC Fabric |
Type: | Rolling | Opening Type: | With Remote Control |
Certification: | ISO9001 | Surface Finishing: | Finished |
Customization: | Available | Customized Request |

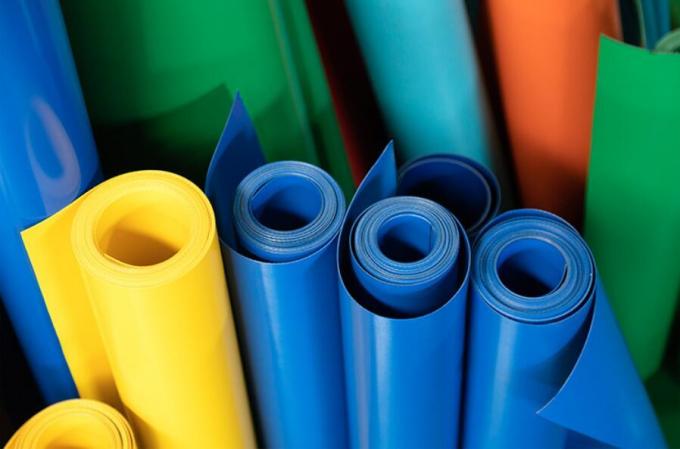

Fiber: industrial environmental protection high strength polyester fiber, double PVC coating, a variety of color selection (Yellow, red, blue, silver, ect.) Anti-corrosive, prevent ultraviolet ray, prevent salt, thickness of 0.9mm. Origin: Belgium.

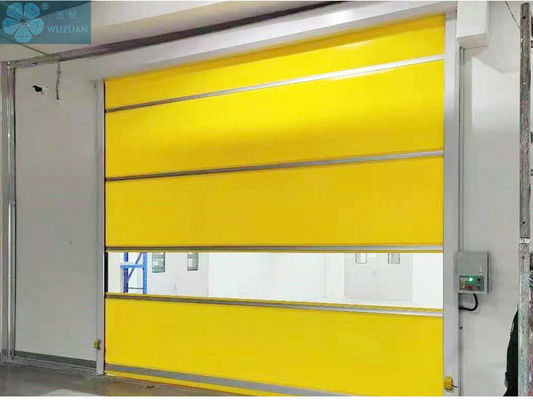

Window Part: Transparent window part material is not easy aging, not variant, antifreeze performance is good, not sun crack in the winter
Aluminum Bar: Professional enhanced industrial aluminum alloy wind resistance reinforcement, thickness:3.0-5.0mm, low maintenance cost.

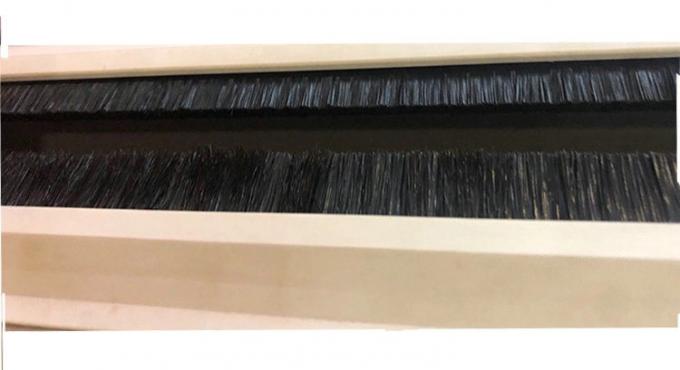

Sealing brush: Built-in brush seal,is better than traditoinal lateral seal brush seal, The bottom is equipped with increasing gas insulation cloth, can be closely integrated with ground.
Control system: Traditional mechanical limit switch combined with electronic limit switch, dual protection, the use of advanced science and technology, adopt high quality frequency converter and PLC control circuit,motor soft start,slow stop,
prolong the service life of the motor,Running speed is 0.6 ~ 1.5 M/S, can be adjusted according to customer needs, more humane; Rotary encoder limit, more stable,simple to set up.Door operation management, the data parameters,according to the actual need to adjust.
Overhead Shell: High quality steel plate welding, surface anti-corrosion treatment, is not easy to rust,beautiful and strong.

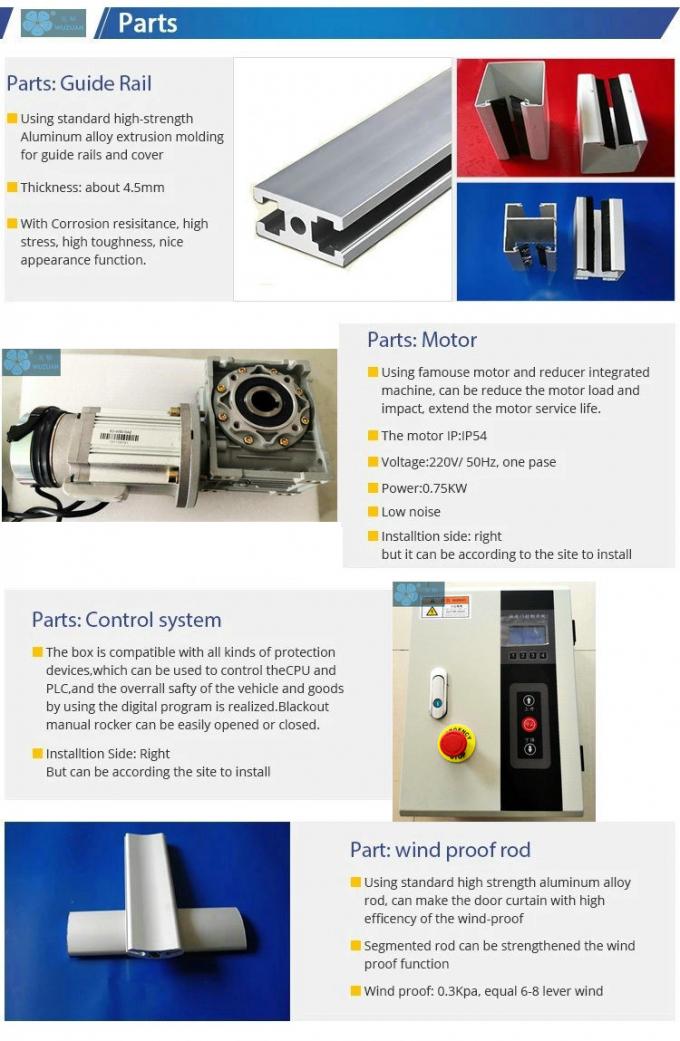

Motor shell with guide rail way:Motor shell made by China brand production manufacture,high quality of galvanized sheet fluor-carbon painting process, the rails thickness is 3.5mm aluminum alloy which is used in industry,surface oxidation treatment. Rail surface with bright decoration article,so the whole boday more coordinate and beautiful.
Power system: high-speed door power 220v/380v special brake motor,power 0.75KW/1.5KW/1500s/roll. bearing heavy load type S4.Can be manual when power off.
Infrared Security system: effectively prevent hit people.
Door and switch operation: Magnetism switch,control button,rocker,the external switch box,infrared security system.
Open ways when power off: Rocker,the reserve power supply.

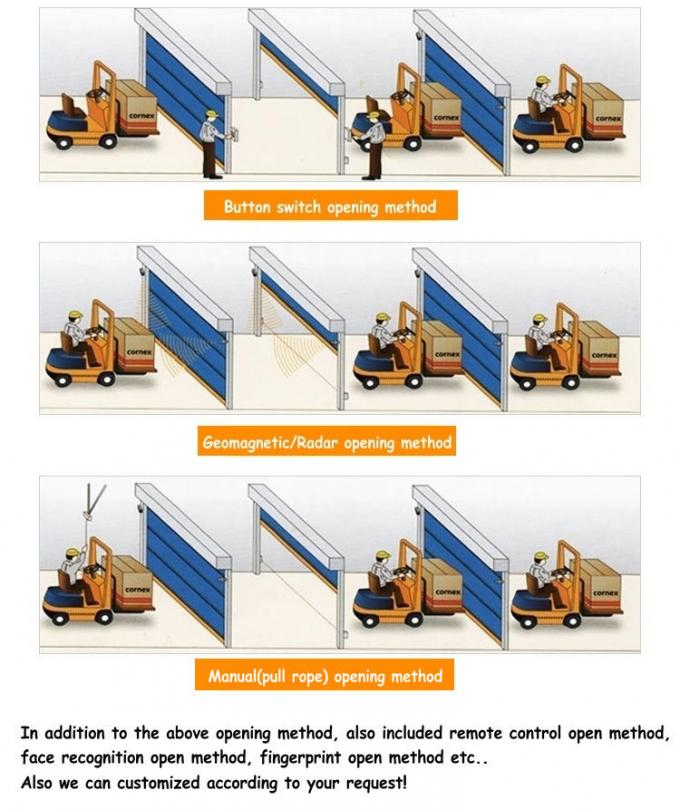

Open Ways:
12. Optional control mode:Loop Sensor, Radar, Remote control, Linkage interlock, Pull rope, etc..
Control System | DFL PLC / Holip PLCand other components. | ||
Dynamical Systems | Motor: SEW / Powever / Damar or Nord from Germany Factory.(China unit: Powever/SERVO system) | ||
Most stable brake system or Advanced Servo System, 220V~380V/50 -60HZ | |||
Power: 0.75kw ~ 3.0kw(According to the size of door) | |||

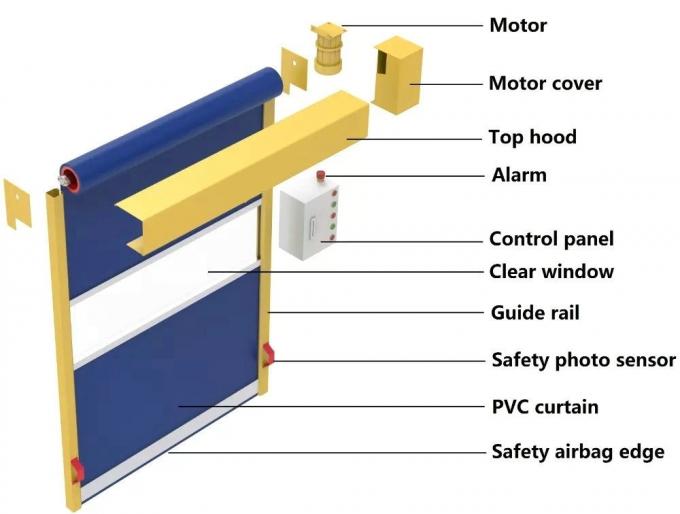

Fast Speed Gate Construction | |||
Framework | In 2mm thickness cold-roll steel sheet or on request in Stainless steel INOX201/304, Plaint color accordingly to your order | ||
Rolling Drum | 2mm thickness steel/Galvanized rube with machined blacks at each side and incorporating high-speed bearing. | ||
Cross Bar | Normal in aluminum rod for small doors. Additional with Steel pipe for large opening and high-wind application. | ||
Color | Red/Yellow/Blue/Sky blue/Orange/Mesh white and yellow/White/Green/Black/Grey. | ||
Transparent Window | Transparent pvc sheet 1.5mm thickness. Window sizes and loaction accordingly to your requirement. | ||

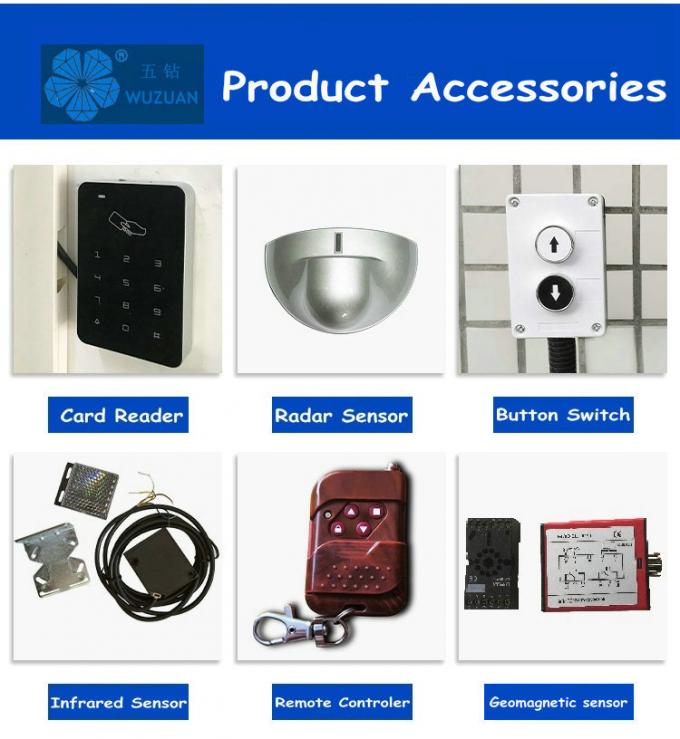

Command System | Magnetic Loop/Radar Sensor/Rope switch/Remote Control/Finger printer/Bluetooth/Key card etc. | ||
Safety System & Seal | |||
Photocell Sensor | Installed ont he side track with emergency rebound opening when sensing obstacles. | ||
Safety edge bottom | When the people or vehicle touch the bottom edge of closing doors, It bound up automaticlly. | ||
Emergency stop protection | With emergency stop button on the main control board. | ||
Seal | Seal brush are installed inside of guider rail. Besides there is trap heavier fabric on the bottom, Close to any uneven ground. | ||
Technical Parameter | Power Supply: Single or Three phase 220V~260V.. Three phase 380V~460V. 50/60HZ. | ||
Max Size: 10m width * 15m height | |||
Opening & Colsing speed: 0.7~1.5m/S | |||
Operation Frequency: 1000~1500 Cycles/Day | |||
Wind load: 15m/S |
