Automatic Flexible Plastic High Speed PVC Roll up Door for Warehouse

China Dongguan Hengtaichang Intelligent Door Control Technology Co., Ltd. certification
China Dongguan Hengtaichang Intelligent Door Control Technology Co., Ltd. certification
I'm Online Chat Now

Automatic Flexible Plastic High Speed PVC Roll up Door for Warehouse

Detailed Product Description
Color: Blue, White, Red, Yellow, Orange, Or Customized Position: Industrial, Garage, House, Exterior/Interior
Surface Finishing: Finished Size: Customized Size, According To Clients′ Specificati
Standard Motor Position: Left Or Right Opening Speed: 0.7~1.2m/S
Curtain Thickness: 0.8mm/1.5mm Frame Material: Aluminum/Stainless Steel
Control System: Dfl PLC / Holip PLC Or Other Components. Motor Brand: Sew / Powever / Damar Or Customized
Motor Power: 550W / 750W / 1500W / 2200W / 4000W/5500W Power: 0.75kw ~ 3.0kw(According To The Size Of Door)
Opening & Colsing Speed: 0.7~1.5m/S Operation Frequency: 1000~1500 Cycles/Day
Wind Load: 15m/S Transport Package: Wood Case Or Strong Paper Carton
Origin: China HS Code: 73083000
Supply Ability: 8000 Sets / Year Warranty: 2 Years
Material: PVC Fabric Type: Rolling
Open Style: Automatic & Manual Opening Type: With Remote Control
Special Function: Dust Proof, Sound Proof Customization: Available | Customized Request

Product Description

Company Info.

Customer Question & Answer
Ask something for more details

Basic Info.

Color
Blue, White, Red, Yellow, Orange, or Customized
Certification
ISO9001
Position
Industrial, Garage, House, Exterior/Interior
Surface Finishing
Finished
Size
Customized Size, According to Clients′ Specificati
Standard Motor Position
Left or Right
Opening Speed
0.7~1.2m/S
Curtain Thickness
0.8mm/1.5mm
Frame Material
Aluminum/Stainless Steel
Control System
Dfl PLC / Holip PLC or Other Components.
Motor Brand
Sew / Powever / Damar or Customized
Motor Power
550W / 750W / 1500W / 2200W / 4000W/5500W
Power
0.75kw ~ 3.0kw(According to The Size of Door)
Opening & Colsing Speed
0.7~1.5m/S
Operation Frequency
1000~1500 Cycles/Day
Wind Load
15m/S
Transport Package
Wood Case or Strong Paper Carton
Origin
China
HS Code
73083000
Production Capacity
8000 Sets / Year

Product Description

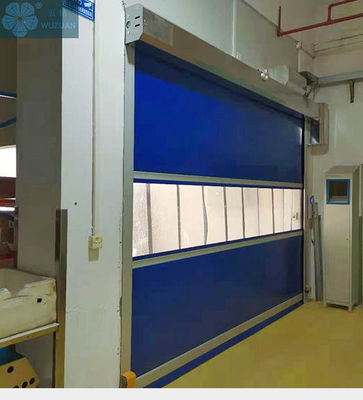

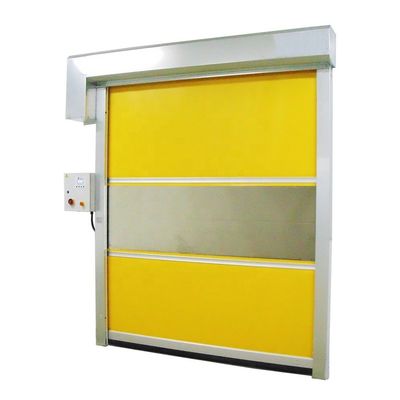

Automatic Flexible Plastic High Speed PVC Roll Up Door for Warehouse

High speed shutter door, also called fast soft door,which is a barrier door with rapid rise and fall.And its main function is quickly isolation, thus to ensure the air quality of the workshop without dust. High speed shutter door has the functions of heat preservation, cold preservation, insect-proof, windproof, dust proof, sound insulation, fire proof, anti odour, day lighting and so on. It is widely used in food, chemistry, textile, electronics, supermarket, freezing, logistics, storage and other places. It can meet the need of high performance logistics and clean place, saving energy for shutting down automatically. What's more, it can improve working efficiency, create better working environment and so on.

Automatic Flexible Plastic High Speed PVC Roll up Door for Warehouse


Raw Material Show:Automatic Flexible Plastic High Speed PVC Roll up Door for Warehouse



Automatic Flexible Plastic High Speed PVC Roll up Door for Warehouse




Structures:

Automatic Flexible Plastic High Speed PVC Roll up Door for Warehouse

Specification.

1. Door curtain: High strength polyster textile fiber
2. Curtain thickness: 0.8 - 1.2 mm
3. Opening speed: 0.8 - 1.5 M/S
4. Closing speed: 0.6 - 1.0 M/S
5. Side Rail options: 2.0mm thick cold-roll steel sheet (Bao Steel) / 2.0mm thick stainless steel
6. Tube shaft: 114mm diameter / 2.5mm thickness round tube
7. Cover box options: 1.0mm thick cold-roll steel shett (Bao Steel ) / 1.0mm thick stainless steel
8. Motor brand: SEW / Powever / Damar
9. Motor power: 550W / 750W / 1500W / 2200W / 4000W / 5500W
10. Control box: HOLIP / DFL
11. Safety performance: Airbag / Photo cell

12. Optional control mode:Loop Sensor, Radar, Remote control, Linkage interlock, Pull rope, etc..



Control SystemDFL PLC / Holip PLCand other components.
Dynamical SystemsMotor: SEW / Powever / Damar or Nord from Germany Factory.(China unit: Powever/SERVO system)
Most stable brake system or Advanced Servo System, 220V~380V/50 -60HZ
Power: 0.75kw ~ 3.0kw(According to the size of door)
Fast Speed Gate Construction
FrameworkIn 2mm thickness cold-roll steel sheet or on request in Stainless steel INOX201/304, Plaint color accordingly to your order
Rolling Drum2mm thickness steel/Galvanized rube with machined blacks at each side and incorporating high-speed bearing.
Cross BarNormal in aluminum rod for small doors. Additional with Steel pipe for large opening and high-wind application.
ColorRed/Yellow/Blue/Sky blue/Orange/Mesh white and yellow/White/Green/Black/Grey.
Transparent WindowTransparent pvc sheet 1.5mm thickness. Window sizes and loaction accordingly to your requirement.
Command SystemMagnetic Loop/Radar Sensor/Rope switch/Remote Control/Finger printer/Bluetooth/Key card etc.
Safety System & Seal
Photocell SensorInstalled ont he side track with emergency rebound opening when sensing obstacles.
Safety edge bottomWhen the people or vehicle touch the bottom edge of closing doors, It bound up automaticlly.
Emergency stop protectionWith emergency stop button on the main control board.
SealSeal brush are installed inside of guider rail. Besides there is trap heavier fabric on the bottom, Close to any uneven ground.
Technical ParameterPower Supply: Single or Three phase 220V~260V.. Three phase 380V~460V. 50/60HZ.
Max Size: 10m width * 15m height
Opening & Colsing speed: 0.7~1.5m/S
Operation Frequency: 1000~1500 Cycles/Day
Wind load: 15m/S

Why Choose Us?


Customers satisfaction is our eternal goal. We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.


Over the years, our company has been working with the well-known manufacturers work closely with gated, has introduced the latest and most sophisticated production equipment of various volumes gate. The use of superior Quality raw materials and high-quality components, and adhere to the " excellence, precision production" product concept, to ensure the production of a variety of beautiful rolling door products Generous, easy operation, security, security, durability, quality assurance. We spirit of "honesty, quality first, customer first, service leader," the case Purpose, passion for the community to provide the safest customers the best a variety of roll gates, but also provide comprehensive maintenance service.



F A Q :


1,Are you trading company or manufacturer ?

A: We are factory.
2. What's the payment details?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
3. What's the delivery time?
For common order, about 15 days only.
4. What about the warranty for the doors?
We provide 12 months warranty for all doors and accessories.
5. Do you provide OEM Service?
Yes. OEM & ODM Service is ok for us.
6. What's the MOQ?
We accept 1 set as sample order.
7. How about the package?
Plywood case, suitable for sea freight or air freight, as your request.
