2m/s opening Overhead Rapid Action PVC Roll Up Shutter Door 6000x6000mm

China Dongguan Hengtaichang Intelligent Door Control Technology Co., Ltd. certification
China Dongguan Hengtaichang Intelligent Door Control Technology Co., Ltd. certification
I'm Online Chat Now

2m/s opening Overhead Rapid Action PVC Roll Up Shutter Door 6000x6000mm

2m/s opening Overhead Rapid Action PVC Roll Up Shutter Door 6000x6000mm
2m/s opening Overhead Rapid Action PVC Roll Up Shutter Door 6000x6000mm
video play

Large Image :  2m/s opening Overhead Rapid Action PVC Roll Up Shutter Door 6000x6000mm

Product Details:
Place of Origin: China
Brand Name: Wuzuan
Model Number: PHSD-00049
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Packaging Details: wood case or strong paper carton
Delivery Time: 7-15days
Payment Terms: L/C, Western Union, MoneyGram
Supply Ability: 300pcs per month
Detailed Product Description
Material: PVC Fabric Door Frame Material: Stainless Steel / Aluminum Alloy / Power Coated Steel
Color: Blue, Black, WHITE, RED, Yellow, Orange, SKY BLUE, Light Grey Or Customized Pecial Door Type: Automatic Door
Open Style: Rolling Opening Speed: 0.7~1.2m/S
Curtain Thickness: 0.8mm/1.5mm Opening Style: Automatic & Manual
Operation Way: Push Button / Sensor / Radar / Pull Switch Opening Frequency: 1000-1500times/Day
Opening Type: Power Driven Special Function: Dust Proof, Security
Motor: 1.German Sew 2.China Sej / Snma Or Customized Motor Power: 0.75-5.5kw
Standard Motor Position: Left Or Right Application: Mall, Supermarket, Warehouse, Workshop
Type: Entry Doors,Garage Doors,Security Doors,Sliding Doors,industrial Door Size: Customized Size, According To Clients' Specification
Wind Resistence: 25m/S Specification: Maximun Size 6m*6m
Working Temperature: -35 To 65 Celsius Degree Installation Area: Exterior Or Interior
Safety Class: IP55 Emergency Operation: Available With Manual Crank
Operating Life: 50,000 Cycles Operation Switch: Button Switch, Radar Sensor, Magnetic Loop
High Light:

2m/s Opening Roll Up Shutter Door

,

Roll Up Shutter Door 6000x6000mm

,

Rapid Action Door 6000x6000mm

Plastic Roll up Shutter Industrial Automatic Overhead Fast Rapid Action High Speed PVC Door

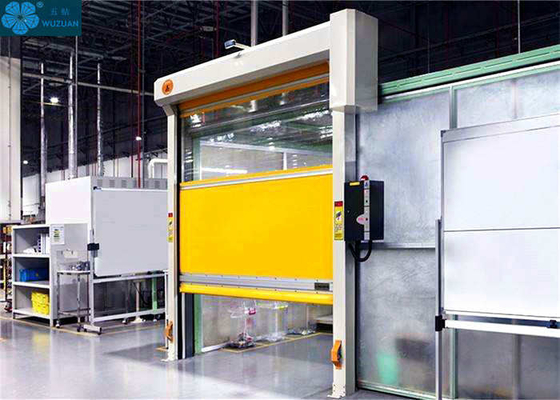

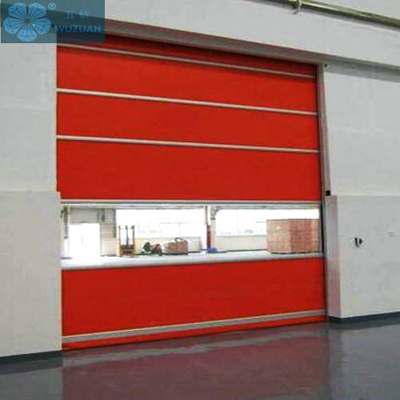

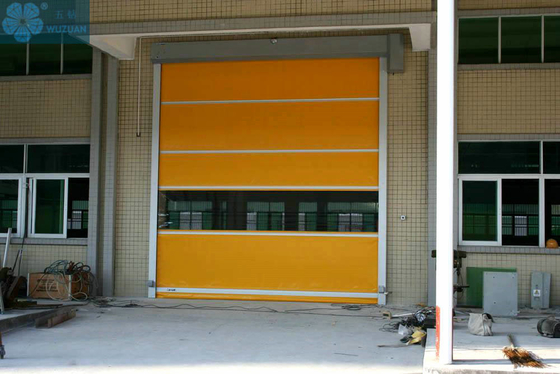

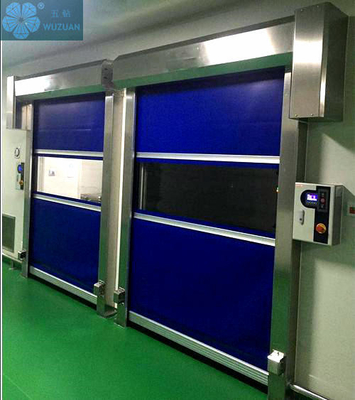

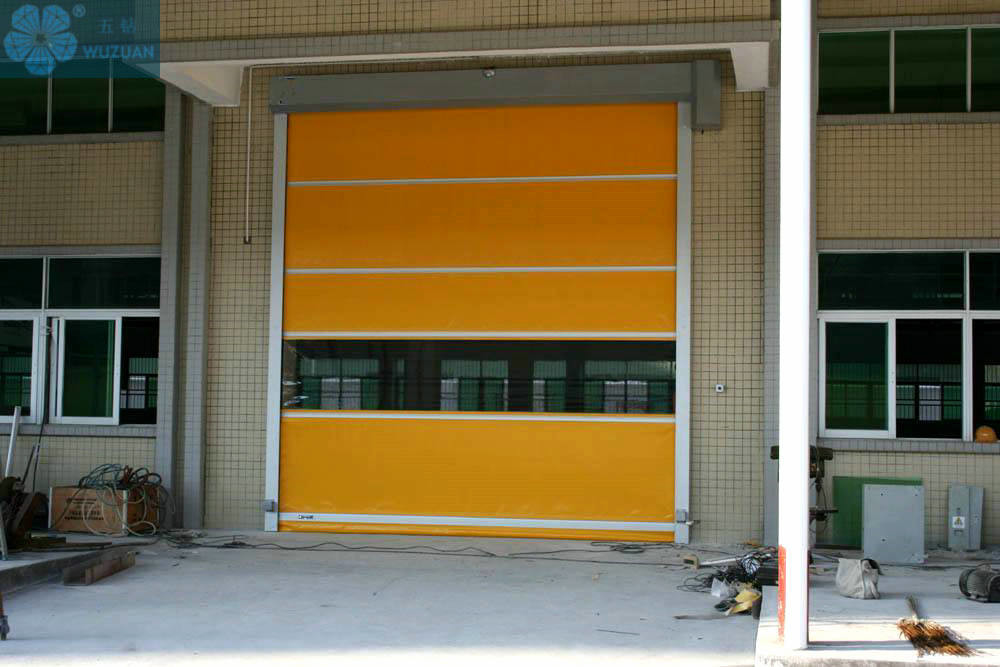

High Speed Door is widely used in modern factories and warehouses. It can run in very high speed (up to 2.5m/s)and frequency (up to 2000 times/day), very fit for areas with heavy traffic. Air flow through the door is reduced obviously, to protect indoor environment. Automatic running is realized with programmed control system and sensors.



Features:
1, Driving system features:
Stable and easy to do the wire connection.
The motor and control box are perfectly compatible, its a complete whole set with the advanced Italian servo technology.
This new integrated design, Improve the electromagnetic interference existing in the complex wiring of the original PLC+ inverter + encoder, avoiding the fault caused by the wiring and plug.
Soft open and close, make the door have great work life.
2, Easy to operate
The interface control panel will make the door more easy to adjust ,it can realize all kinds of function by adjust it.
3. Door curtain.
Variety Color option ,special customize for you.
4. Steel Structure.
Variety material fit for all kinds of Application !
a. Powder coated galvanized steel ,RAL Color customized for you !
b. 304 stainless steel. 2.0mm. Stainles steel color .
c. Aluminum Alloy Guide Rail . Aluminum Alloy white .
5. safety device.
Bottom soft edge airbag sensor
Photo sensor
Alarm light.

Applications:
Food factory, Pharmaceutical factory, Warehouses, Packaging industry, Chemical industry, Machinery industry,Loadi-
ng bays, Robot welding rooms, Clean rooms, Laboratory, Conveyor.



Product information for door

The thickness of PVC sheet 0.8-1.2mm
Max size 6000*6000mm
Max opening 2 m/s
Max closing 1.2 m/s
PVC color Blue,yellow,red,green,white,grey,etc
Motor SEJ,SEW,etc
Control box Danfoss



Why Choose Us?

Over the years, our company has been working with the well-known manufacturers work closely with gated, has introduced the latest and most sophisticated production equipment of various volumes gate. The use of superior Quality raw materials and high-quality components, and adhere to the " excellence, precision production" product concept, to ensure the production of a variety of beautiful rolling door products Generous, easy operation, security, security, durability, quality assurance. We spirit of "honesty, quality first, customer first, service leader," the case Purpose, passion for the community to provide the safest customers the best a variety of roll gates, but also provide comprehensive maintenance service.

Customers satisfaction is our eternal goal. We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.





F A Q :


1, Are you trading company or manufacturer ?

A: We are factory.
2. What's the payment details?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
3. What's the delivery time?
For common order, about 15 days only.
4. What about the warranty for the doors?
We provide 12 months warranty for all doors and accessories.
5. Do you provide OEM Service?
Yes. OEM & ODM Service is ok for us.
6. What's the MOQ?
We accept 1 set as sample order.
7. How about the package?
Plywood case, suitable for sea freight or air freight, as your request.
