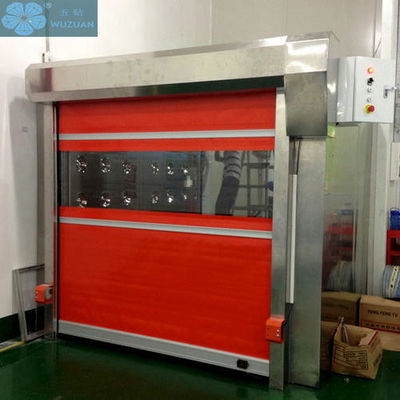

Fast Rolling Automatic aluminium door Shutter Operated High Speed PVC Door
High speed shutter door, also called fast soft door,which is a barrier door with rapid rise and fall.And its main function is quickly isolation, thus to ensure the air quality of the workshop without dust. High speed shutter door has the functions of heat preservation, cold preservation, insect-proof, windproof, dust proof, sound insulation, fire proof, anti odour, day lighting and so on. It is widely used in food, chemistry, textile, electronics, supermarket, freezing, logistics, storage and other places. It can meet the need of high performance logistics and clean place, saving energy for shutting down automatically. What’s more, it can improve working efficiency, create better working environment and so on.
Appearance: standard stainless steel sealing box and aluminum alloy track, laser cutting processing without welding sealing box, no rust, beautiful and strong.
Dynamic performance: 0.75kw fast door special motor and silent brake motor, power 0.75-1.5kw, power 110V/220V/380V, Voltage 110V/220V/380V is optional, power 0.75/1.5/2.2kw is optional.
Control system: 1.5kw man-machine switching control box control circuit, to achieve soft start and soft shut down motor function,
effectively extend the motor life and reduce noise.Equipped with the limit device of full-range absolute value encoder, the travel position is more accurate, and the manual travel is not offset when power is off.
Control voltage: safe low voltage 24VDC.
Opening speed: open 0.8-1.5m/ s and close 0.6-1.2m/ s (frequency conversion can be adjusted).
Door curtain material: industrial high strength 0.9 thick PVC mesh cloth, double-sided polyvinyl chloride coating, a variety of colors, with cold resistance, self-cleaning, anti-aging function.
Tensile strength: 5700/5100n /5cm, tear strength: 900/80n.
Fire rating: German standard MZD/NBL flame resistant.
Temperature: - 10 ℃ to + 70 ℃ / super cold area - 40 ℃.
Transparent window: imported PVC transparent crystal soft board, 1.5mm thick, rectangular or oval.
Wind resistant material: aluminum alloy wind resistant rib, section connection, easy to replace.
Wind resistance: 9m/s (50Pa standard 3 x 3).
Sealing performance: U type air bag cloth bag at the bottom of the door curtain can be closely fitted with uneven ground, and the door frame can be sealed with wool strips on both sides to prevent dust and insects.
Safety configuration: standard infrared photoelectric protection, pressure air bag, warning light, anti-collision column, power failure manual rocker.
Detail information:
|
Item
|
Details
|
|
Curtain:
|
0.8mm / 1.2mm high density Franch brand SIOEN fabric.
2.0mm thickness clear PVC for visual window.
|
|
Cover box/ Track:
|
Stainless steel/ Aluminum alloy/ Galvanzied Steel
|
|
Max. area:
|
48 m², 6000 mm / 8000 mm (DW max/ DH max.)
|
|
Wind resistance:
|
12~19KM/H
|
|
Temperature range
|
'-35℃ to 60℃
|
|
Motor power
|
0.75KW~2.2KW, 110V/ 220V/ 380V/ 480V. 50HZ/60HZ
|
|
Standard Accessories:
|
Radar, push button, infrared light,
|
|
Optional Accessories:
|
Remote control,bottom safety air bag, Motor Manual Rocker.
Crash Column, Pedestrian and vehicle split radar, and so on.
|
About Us
Established in 2006, HengTaichang Intelligent gate control technology co., LTD is a leading manufacturer of automatic doors. We are located in Dongguan as known as " factory of the world" , . It is very convenient to all over the world by air or sea.
HengTaichang Is a high-tech company that integrates development, design, production, installation, sales,service and after-sales as one of the professional manufacturers, Over the years, we have designed, developed and manufactured a wide range of automatic doors, such as high speed rolling curtain doors, Industrial sliding door, Rapid metal shutter door, rapid accumulation of doors, silent roller shutter door, commerce crystal folding door, Fire Proof & Blast Proof Door, Hard Rapid Turbo Roller Door, remote control sectional garage door, remote roller shutter window and so on.
F A Q :
1, Are you trading company or manufacturer ?
A: We are factory.
2. What's the payment details?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
3. What's the delivery time?
For common order, about 15 days only.
4. What about the warranty for the doors?
We provide 12 months warranty for all doors and accessories.
5. Do you provide OEM Service?
Yes. OEM & ODM Service is ok for us.
6. What's the MOQ?
We accept 1 set as sample order.
7. How about the package?
Plywood case, suitable for sea freight or air freight, as your request.
