Folding Double Track Double Curtain Fireproof Inorganic Fabric Fire Rated Roller Shutter Door
The inorganic Fabric foldable fireproofing shutter refers to the use of inorganic fireproof and heat insulation cloth as door surface,rolling shutter with steel rope and pulley as transmission,and the folding way to lift the door surface,and the span can be extended infinitely in the middle without a column,and it is good to keep the interior full space of building in the irregular interval of fire prevention.
1. Soft texture,good curling performance,high tensile strength,corrosion resistance and moisture resistance.
2. The rolling shutter has the advantages of small volume,small space occupation and light weight(3.5kg),which can reduce the load bearing capacity of the building,especially for the manufacture and installation of large-span shutter doors.
3. No need for water spray protection,reducing the investment and occupying space of the water spray system.
4.Flexible start,low noise and reasonable structure.The appearance of shutter surface can be decorated.
5.The opening and closing of rolling door can be linked with fire control center,and it can also be self-contained and it can be opened and closed by smoke and temperature sensor.It has both automatic and manual opening and closing functions.
1. Fire resistance: more than 3 hours.
2.The average temperature rise of the back of the firing surface: 36 C ~50 C
3.Weight (motion) descent speed: less than 9.5m/min
4.Smoke leakage of the shutter surface: less than 0.10m /min
5.Shutter surface weight: 7.5kg/
6.Motor power: 0.25KW`0.75KW
7.Power supply: DC24V AC380V, 50HZ

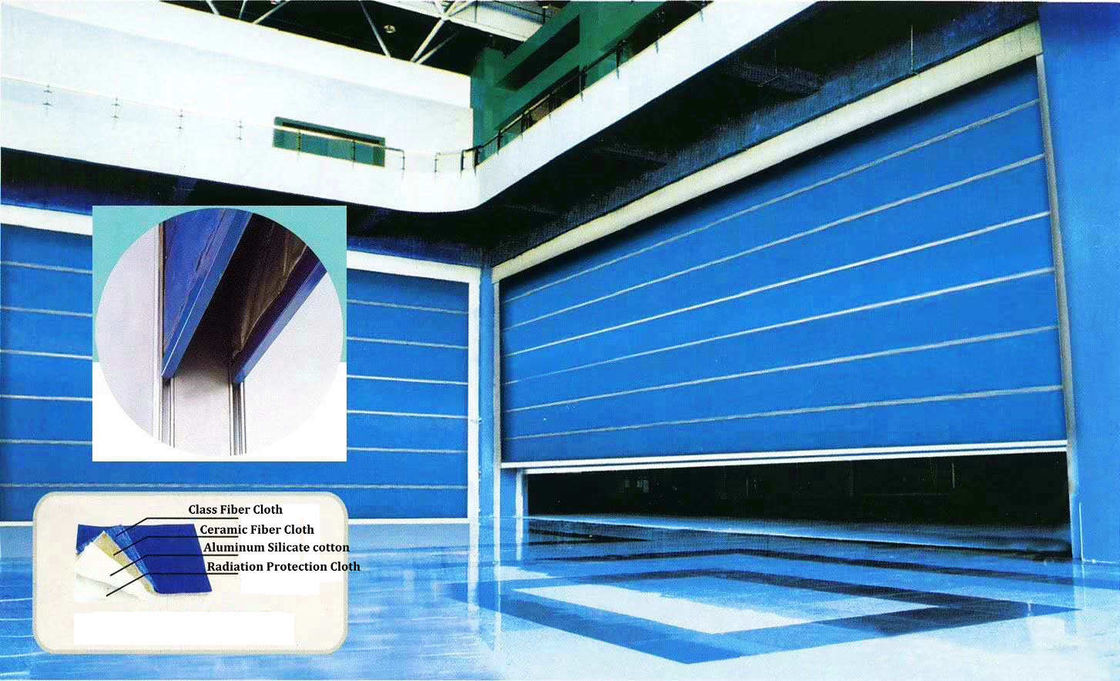

The curtain is made of four layers of fireproof material, which are glass fiber cloth, aluminum silicate cotton, ceramic fiber cloth and radiation protection cloth.
Moto & Controller:
It use the special fire motor,and the control box connect to the fire protection system of the building.Special production materials make it fire and smoke prevention.
Guid rail: The track adopts a 1.5mm thick galvanized steel rail, and the rail is internally provided with a smoke-proof sealing strip, which is heated and expanded to isolate smoke and heat.
Scroll shaft:The reel is 2.5mm thick, φ140mm galvanized steel pipe
The motor and controller are fireproof, It can be linked with a fire sensor or a fire bus.
|Place of Origin
||DongGuan of China
||Inorganic fabric+galvanized steel
||Bubble wrap+Plastic Foam+Strong Carton(Optional)
||7-15 days after S/C
||Western Union/T/T etc.
||Factories,Large building,Office buildings
||Soft texture,good curling performance,high tensile strength etc
Why Choose Us?
Customers satisfaction is our eternal goal. We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.
F A Q :
1,Are you trading company or manufacturer ?
A: We are factory.
2. What's the payment details?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
3. What's the delivery time?
For common order, about 15 days only.
4. What about the warranty for the doors?
We provide 12 months warranty for all doors and accessories.
5. Do you provide OEM Service?
Yes. OEM & ODM Service is ok for us.
6. What's the MOQ?
We accept 1 set as sample order.
7. How about the package?
Plywood case, suitable for sea freight or air freight, as your request.
