4000mm Width 16mm Tube Security Transparent Rolling Shutters

China Dongguan Hengtaichang Intelligent Door Control Technology Co., Ltd. certification
China Dongguan Hengtaichang Intelligent Door Control Technology Co., Ltd. certification
I'm Online Chat Now

4000mm Width 16mm Tube Security Transparent Rolling Shutters

4000mm Width 16mm Tube Security Transparent Rolling Shutters
4000mm Width 16mm Tube Security Transparent Rolling Shutters
video play

Large Image :  4000mm Width 16mm Tube Security Transparent Rolling Shutters

Product Details:
Place of Origin: China
Brand Name: Wuzuan
Model Number: TRSD-00013
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Packaging Details: Wood case(fumigation) or carton board or customized
Delivery Time: 7-15 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 300pcs per month
Detailed Product Description
Material: Transparent Plastic Frame Material: Stainless Steel Or Aluminum Alloy
Thickness Of PC: 2.2mm Accessories: Seal/Guide Rail/Slat/Motor
Color: Blue,Yellow,Red,Grey,White,Full-clear Or Customized Open Style: Automatic Or Manual
Frame Surface Treatmentment: Galvanized, Coating Paint, Or Special Requirement Size: Customized
Motor: External Or Tubular Internal Feature: Sturdy And Durable/Flexible/Convenient/Fashionable
Application: Mall, Shopping Centers,banks,shop Fronts,bar Tops,arcades And So On Surface Finishing: Finished
OEM/ODM: Acceptable Delivery Time: 7-15 After Sample Confirmation
Diameter Of Tube: 9mm,12mm,16mm Opening Way: Roll Up
PC Sheet Shape: Can Be Optional PC Color: Can Be Optional
MOQ: 1 Set Payment: Western Union/T/T/etc
Specification: Customized Position: Commercial
Transport Package: Plywood Case Or Cardboard, As Your Request. Origin: China
High Light:

16mm Tube Transparent Rolling Shutters


4000mm Width Transparent Rolling Shutters


4000mm Width clear roller door

Security Motorized Transparent Polycarbonate Slat Roller Shutter Door


1.Crystal rolling Door is a popular design for commercial building to offering top secruity together with the ultimate in style and strength.
2.The difference between this crystal roll door and the rest is “Cmpletely Cear But Solid”.
3.The cryatal roll door Let your after-hour display add dimension to your product range and take advantage of every marketing opportunity.

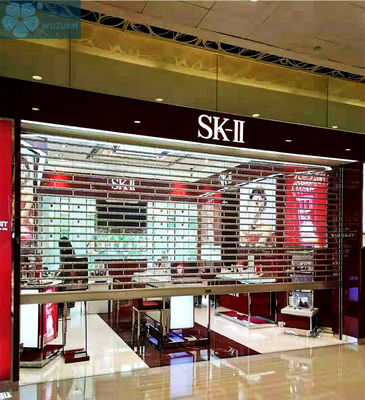

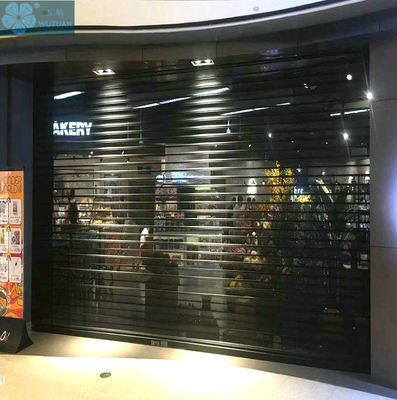

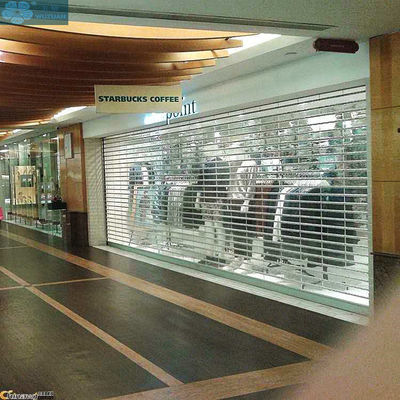

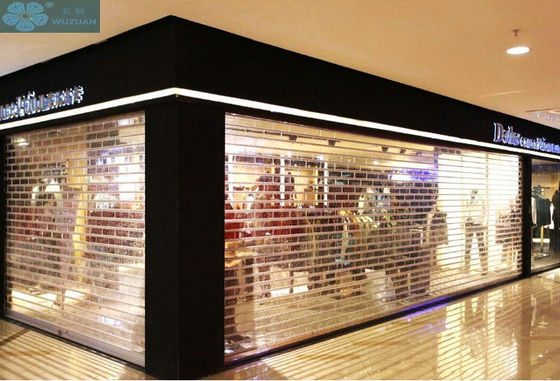

4.The crystal rolling door is suitable for any commercial applications including shopping centres,banks,shop fronts,bar tops,arcades and so on.


1) Crystal sheet;
2) Stainless steel central spindle;
3) Bottom millstone;
4) Noise suppression;
5) Scroll;
6) Shutter motor;
7) Remote control etc. With the advantage of standardized main part of the door, convenient assembling, tough and durable, novel, chic and elegant appearance, both practical and ornamental, integrating grating rolling door and spring glass door, PC Crystal Rolling Shutter Door is more and more used worldwide.
Product Introduction:
Character: Shutter sheet of PC Crystal Rolling Shutter Door is made of imported PC material. With crystal elegant appearance, tough and tensile structure, PC Crystal Rolling Shutter Door is hard to break through, keeping away burglar, water, dust and noise.
PC Crystal Rolling Shutter Door can be controlled manually, electrically or by remote control.


Character of material:
high impact strength, stable dimensions, transparent, nice dyeing property, electrical insulating property, corrosion resistance, abrasive resistance;
weak self-lubrication, with a tendency to stress cracking, weak intermiscibility with other resins.
Advantage and character:
Flame resistance:
the auto-ignition temperature of polycarbonate is 630 degree Celsius, inspected by China National Fireproof Construction Material Quality Supervision Inspection Center, the PC plate flame resistance is in accordance with B1 grad of GB (8624-1997), regarded as nonflammable construction material.
Chemical Corrosion Resistance:
Polycarbonate plate, hereafter as PC plate, is of grate character of chemical corrosion resistance, resistant against various kinds of organic acid, inorganic acid, weak acid, plant enzyme, fatty hydrocarbon and ethyl alcohol etc.Heat and cold resistance: great resistance against heat and cold, keeping stable physical characters from the temperature range of -30 to 120 degree Celsius.
Photochemical property:
with luminousness between 12% and 18%, polycarbonate is of high luminousness, in the spectral regions of visual light and near infrared ray, and uvio-resistant, anti-aging.With unio-resistant layer at the surface, polycarbonate plate is of good outdoor weatherability, keeping good optical property and physical character.
Impact resistance:
the impact resistance is 80 times of glass, and the solid plate 200 times of glass; keeping the product from breaking during traffic transportation.
The outstanding character is that, it doesn’t break like general glass, keeping people from being hurt.
Light weight: weight is only 1/12 to 1/15 of same volume glass, safe, not easy to break, easy to transport, assemble, to lighten weight of the contraction, simple. The product is suitable for public buildings, civil architectures, industrial architectures, bringing nice appearance.


Polycarbonate transparent roller shutter door date:

Item Unit Date
Transparent rooer door Material / Polycarbonate
Impact Strength J/M2 1400
Elongation at Break % 250
Transparency % 88
Bending Strength Mpa 78
Rockwell Hardness(HRR) / 60

Why Choose Us?

Customers satisfaction is our eternal goal. We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.

Over the years, our company has been working with the well-known manufacturers work closely with gated, has introduced the latest and most sophisticated production equipment of various volumes gate. The use of superior Quality raw materials and high-quality components, and adhere to the " excellence, precision production" product concept, to ensure the production of a variety of beautiful rolling door products Generous, easy operation, security, security, durability, quality assurance. We spirit of "honesty, quality first, customer first, service leader," the case Purpose, passion for the community to provide the safest customers the best a variety of roll gates, but also provide comprehensive maintenance service.


F A Q :

1,Are you trading company or manufacturer ?

A: We are factory.
2. What's the payment details?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
3. What's the delivery time?
For common order, about 15 days only.
4. What about the warranty for the doors?
We provide 12 months warranty for all doors and accessories.
5. Do you provide OEM Service?
Yes. OEM & ODM Service is ok for us.
6. What's the MOQ?
We accept 1 set as sample order.
7. How about the package?
Plywood case, suitable for sea freight or air freight, as your request.
