Dongguan Hengtaichang Intelligent Door Control Technology Co., Ltd.
Home ProductsSectional Overhead Garage Door

40mm Sectional Overhead Garage Door

China Dongguan Hengtaichang Intelligent Door Control Technology Co., Ltd. certification
China Dongguan Hengtaichang Intelligent Door Control Technology Co., Ltd. certification
I'm Online Chat Now

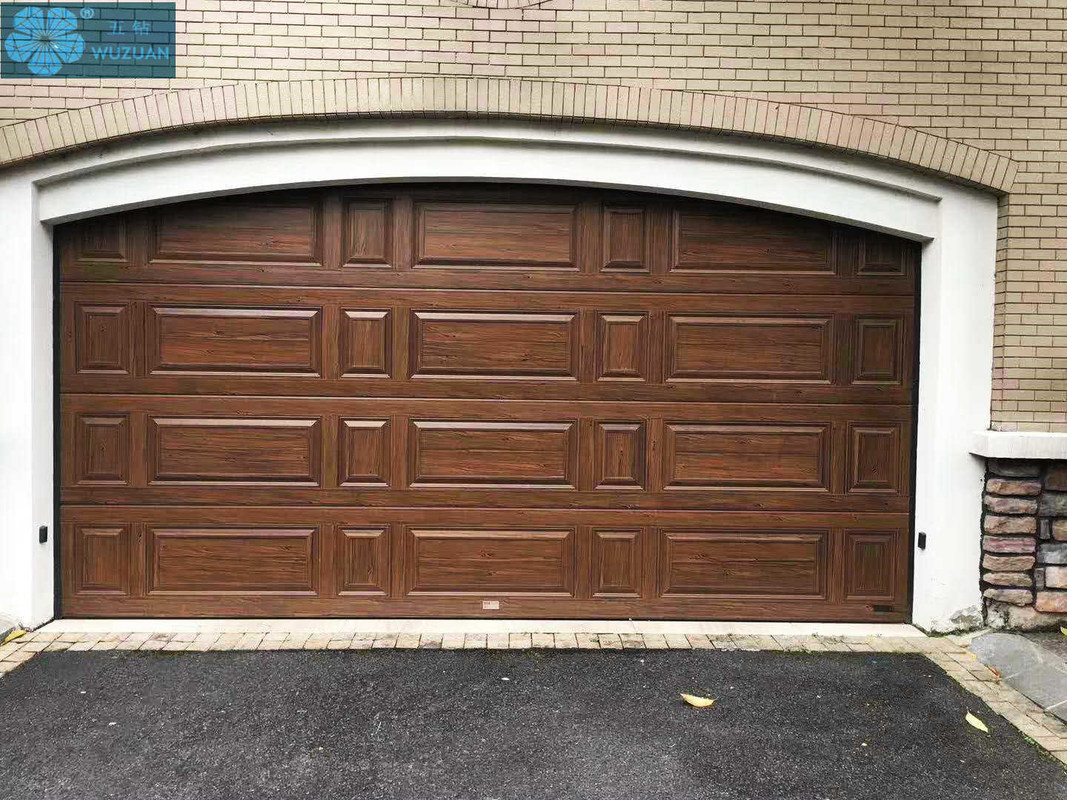

40mm Sectional Overhead Garage Door

40mm Sectional Overhead Garage Door
40mm Sectional Overhead Garage Door
video play

Large Image :  40mm Sectional Overhead Garage Door

Product Details:
Place of Origin: China
Brand Name: Wuzuan
Model Number: SOSGD-00012
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Packaging Details: wood case or strong paper carton
Delivery Time: 7-15days
Payment Terms: T/T, Western Union, MoneyGram
Detailed Product Description
Material: Aluminum Or Galvanized Steel Foaming Material: Polyurethane
Foaming Process: Automatically Color: White,Cream, Wooden Grain,Bronze Or Customized
Opening: Roll Up Opening Way: Electric,Manual,Remote Control
OEM: Acceptable Size: Customized
Thickness Of Aluminum: 40mm/Custom Width Of Panel: 500mm/Custom
Application: Residential/Hotel/Office Building/Shop/Villa/etc Feature: High Durability/Heat Preservation/Thermal Insulation
Position: Garage Protection Class: IP55
Door Panel Pattern: Linear Door Panel Design: Finger-Protection Design
Bracket Thickness: 3.0mm Surface Finishing: Finished
Panel Width: 430-550mm, Adjusted Max Length Of Panel: 12m
Height: 435mm, 485mm, 535mm Or Customized Max Width: Maximum 6500mm
Total Thickness: 38mm Guide Rail Thickness: 2.0mm
Tracks: Single Track Or Double Track Output Torque: 1000N
Export Markets: Global Transport Package: Plywood Case Or Cardboard+pallets, As Your Request.
Handware: With All Handware HS Code: 73083000
High Light:

IP55 Sectional Overhead Garage Door


40mm Sectional Overhead Garage Door


IP55 industrial sectional overhead door

Automatic Aluminum Electric Spectacular Durable Steel Insulated Panel Sliding Overhead Sectional Garage Door


For premium construction and maximum thermal efficiency, a insulated steel garage door is the ideal choice. This series of doors feature our sandwich construction of steel-polyurethane-steel as well as between-section seals with thermal breaks to reduce air infiltration. Durable garage doors that guard against wind and rain and add beauty, sophistication, and durability to your home. Up to lifetime limited warranty available.



Panels of different colors and styles:
40mm or 50mm thickness Pu foam insulated door panels available. There are white, silver grey, dark grey, green, brown, red, yellow, blue, golden oak, dark oak and other colors available. Line, flat, square, micrograin styles are available.
Finger protection and non finger protection door panels are optional. If the doors are big, Panels with outside reinforcement and inner reinforcement are optional.


Garage Door Parts:
Garage door parts include hinges, rollers, torsion springs, cables, drums, tracks and so on.
Side Hinge & Nylon Roller:
Adjustable side hinge, good quality Nylon roller.The pulley rod wraps plastic to make the operation noise-free
Stable bottom bracket:
For big doors, adjustable bottom bracket is fixed for easy cable adjustment.
Top and bottom Aluminum seals:
The Aluminum weather seals are fixed on the top and bottom panels in the factory to save your installation time.
Track and Track cover:
Track thickness: 1.5mm or 2.0mm
Track cover thickness: 2.0mm
Zinc layer :120g
Side seals fixed on track cover to protect the wall
Rear beam at end of the track:
Rear beam are available to fix at end of the horizontal track.
The motor guide rail can be fixed on the rear beam.


Emergency Lock:
The door can be opened by emergency lock if power off.
Windows of different styles:
Different kinds of windows are optional.


Product Description:

Product Garage Door
Brand ZTMY
Place of Origin China
Material Steel/Aluminium +PU
Size Custom
Color White/Gray/Black/Customize
Thickness of Door Plate 40mm/50mm/Custom
Width of Slat Custom
Density of PU 42kg/m³(Custom)
Opening Lift up
Opening Way Electric/Remote control/Button
OEM/ODM Acceptable
MOQ 1Set
Package Paper box+Plastic Foam+Strong Carton(Optional)
Delivery time 3-10 days after S/C
Payment Western Union/T/T
Port Guangzhou/Shenzhen/etc
Application Residential/Villa/Parking Place etc.
Feature Splendid/durable//strong


40mm Sectional Overhead Garage Door 0

40mm Sectional Overhead Garage Door 1

40mm Sectional Overhead Garage Door 2

Color can be optional:


40mm Sectional Overhead Garage Door 3

About Us


Established in 2006, HengTaichang Intelligent gate control technology co., LTD is a leading manufacturer of automatic doors. We are located in Dongguan as known as " factory of the world" , . It is very convenient to all over the world by air or sea.
HengTaichang Is a high-tech company that integrates development, design, production, installation, sales,service and after-sales as one of the professional manufacturers, Over the years, we have designed, developed and manufactured a wide range of automatic doors, such as high speed rolling curtain doors, Industrial sliding door, Rapid metal shutter door, rapid accumulation of doors, silent roller shutter door, commerce crystal folding door, Fire Proof & Blast Proof Door, Hard Rapid Turbo Roller Door, remote control sectional garage door, remote roller shutter window and so on.
F A Q :

1,Are you trading company or manufacturer ?

A: We are factory.
2. What's the payment details?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
3. What's the delivery time?
For common order, about 15 days only.
4. What about the warranty for the doors?
We provide 12 months warranty for all doors and accessories.
5. Do you provide OEM Service?
Yes. OEM & ODM Service is ok for us.
6. What's the MOQ?
We accept 1 set as sample order.
7. How about the package?
Plywood case, suitable for sea freight or air freight, as your request.
40mm Sectional Overhead Garage Door 4
