Product Details:
Payment & Shipping Terms:
|
| Material: | PVC Fabric | Door Frame Material: | Stainless Steel / Aluminum Alloy / Power Coated Steel |
|---|---|---|---|
| Color: | Blue, Black, WHITE, RED, Yellow, Orange, SKY BLUE, Light Grey Or Customized | Pecial Door Type: | Automatic Door |
| Open Style: | Rolling | Opening Speed: | 0.7~1.2m/S |
| Curtain Thickness: | 0.8mm/1.5mm | Opening Style: | Automatic & Manual |
| Operation Way: | Push Button / Sensor / Radar / Pull Switch | Opening Frequency: | 1000-1500times/Day |
| Opening Type: | Power Driven | Special Function: | Dust Proof, Security |
| Motor: | 1.German Sew 2.China Sej / Snma Or Customized | Motor Power: | 0.75-5.5kw |
| Standard Motor Position: | Left Or Right | Application: | Mall, Supermarket, Warehouse, Workshop |
| Type: | Entry Doors,Garage Doors,Security Doors,Sliding Doors,industrial Door | Size: | Customized Size, According To Clients' Specification |
| Wind Resistence: | 25m/S | Specification: | Maximun Size 6m*6m |
| Working Temperature: | -35 To 65 Celsius Degree | Installation Area: | Exterior Or Interior |
| Safety Class: | IP55 | Emergency Operation: | Available With Manual Crank |
| Operating Life: | 50,000 Cycles | Operation Switch: | Button Switch, Radar Sensor, Magnetic Loop |
| High Light: | 2mm steel High Speed Industrial Doors,2m/s High Speed Industrial Doors,2m/s security roller doors |
||

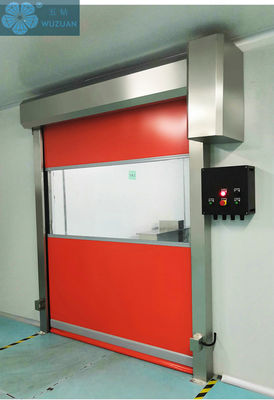

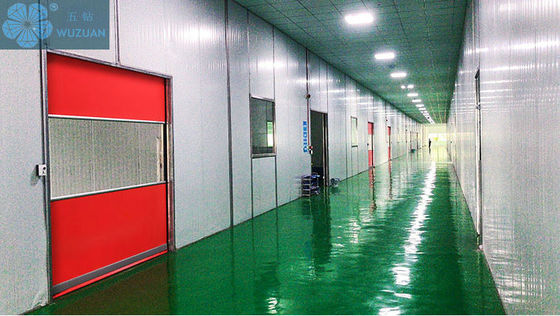

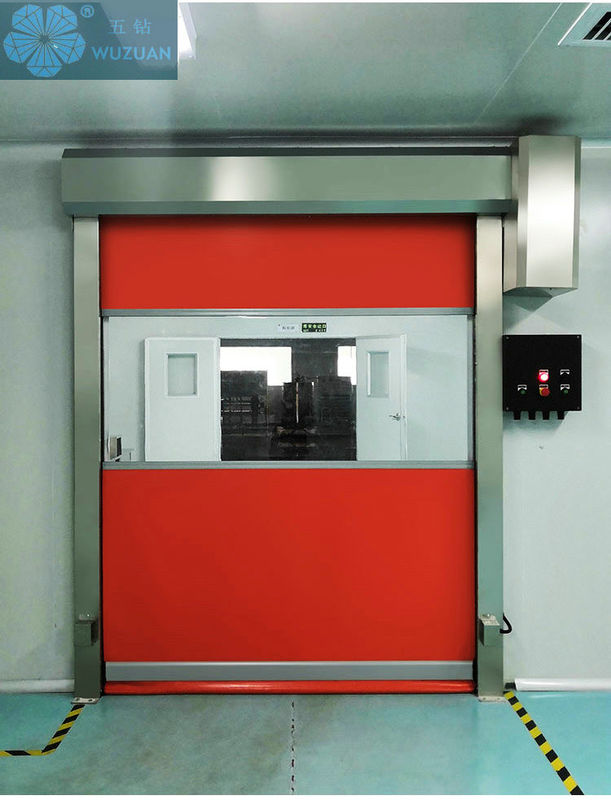

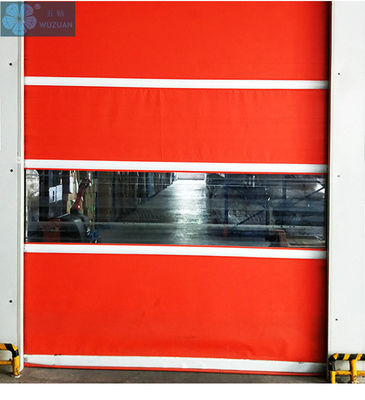

High speed PVC Roller shutter door, used in high-frequency logistics channel. The door curtain wind resistant
pole was formed by the wind resistant steel tube( wind resistant pole: it is on the request about the door
opening's wind pressure to deploy), strong wind resistant, suitable for large-scale external doors and in
request wind resistant's internal doors, sealing, vermins-proof and dust-proof, protecting the working environment.
Applications:
Indoor, outdoor which requests resistant the wind/ temperature .
Heavy industry, Light industry, food industry, electronics, pharmaceutical, warehousing, packaging, printing, chemical industry, automobile, manufacturing.
The Industries In high request in environmental health.
Features:
1. High speed opening and closing
The running speed can reach 2m/s, 10 times as traditional roller shutter door. This obviously improves passing efficiency through it and enhances overall output.
2. High frequency operation
The operation frequency can reach more than 1000 times per day without any faults. This meets need of heavy traffic in some areas.
3. High-level automation
Automatic radar or other devices can be equipped, realizing auto control of the oor. This enhances automation level and work efficiency.
4. Excellent safety performance
Dual protection design. Every door is equipped with safety photo sensor and proximity sensor, avoiding collision accidents and protecting passing human or vehicles
Features:
1. High speed opening and closing
The running speed can reach 2m/s, 10 times as traditional roller shutter door. This obviously improves passing efficiency through it and enhances overall output.
2. High frequency operation
The operation frequency can reach more than 1000 times per day without any faults. This meets need of heavy traffic in some areas.
3. High-level automation
Automatic radar or other devices can be equipped, realizing auto control of the oor. This enhances automation level and work efficiency.
4. Excellent safety performance
Dual protection design. Every door is equipped with safety photo sensor and proximity sensor, avoiding collision accidents and protecting passing human or vehicles.
Product Details:
| Control System | DFL PLC / Holip PLCand other components. | ||
| Dynamical Systems | Motor: SEW or Nord from Germany Factory.(China unit: Powever/SERVO system) | ||
| Most stable brake system or Advanced Servo System, 220V~380V/50 -60HZ | |||
| Power: 0.75kw ~ 3.0kw(According to the size of door) | |||
| Fast Speed Gate Construction | |||
| Framework | In 2mm thickness cold-roll steel sheet or on request in Stainless steel INOX201/304, Plaint color accordingly to your order | ||
| Rolling Drum | 2mm thickness steel/Galvanized rube with machined blacks at each side and incorporating high-speed bearing. | ||
| Cross Bar | Normal in aluminum rod for small doors. Additional with Steel pipe for large opening and high-wind application. | ||
| Color | Red/Yellow/Blue/Sky blue/Orange/Mesh white and yellow/White/Green/Black/Grey. | ||
| Transparent Window | Transparent pvc sheet 1.5mm thickness. Window sizes and loaction accordingly to your requirement. | ||
| Command System | Magnetic Loop/Radar Sensor/Rope switch/Remote Control/Finger printer/Bluetooth/Key card etc. | ||
| Safety System & Seal | |||
| Photocell Sensor | Installed ont he side track with emergency rebound opening when sensing obstacles. | ||
| Safety edge bottom | When the people or vehicle touch the bottom edge of closing doors, It bound up automaticlly. | ||
| Emergency stop protection | With emergency stop button on the main control board. | ||
| Seal | Seal brush are installed inside of guider rail. Besides there is trap heavier fabric on the bottom, Close to any uneven ground. | ||
| Technical Parameter | Power Supply: Single or Three phase 220V~260V.. Three phase 380V~460V. 50/60HZ. | ||
| Max Size: 10m width * 15m height | |||
| Opening & Colsing speed: 0.7~1.5m/S | |||
| Operation Frequency: 1000~1500 Cycles/Day | |||
| Wind load: 15m/S | |||
Why Choose Us?
Over the years, our company has been working with the well-known manufacturers work closely with gated, has introduced the latest and most sophisticated production equipment of various volumes gate. The use of superior Quality raw materials and high-quality components, and adhere to the " excellence, precision production" product concept, to ensure the production of a variety of beautiful rolling door products Generous, easy operation, security, security, durability, quality assurance. We spirit of "honesty, quality first, customer first, service leader," the case Purpose, passion for the community to provide the safest customers the best a variety of roll gates, but also provide comprehensive maintenance service.
Customers satisfaction is our eternal goal. We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.
