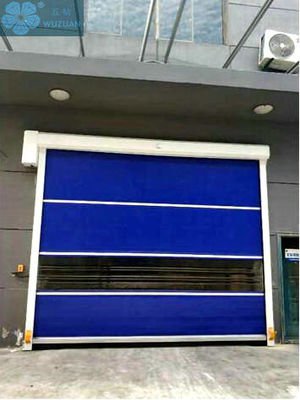

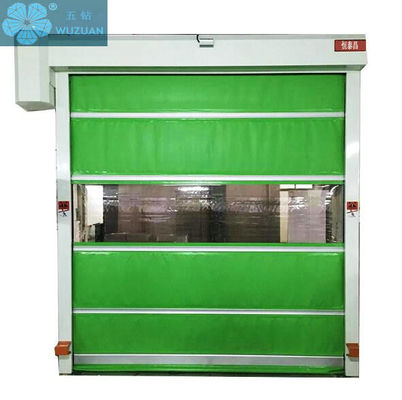

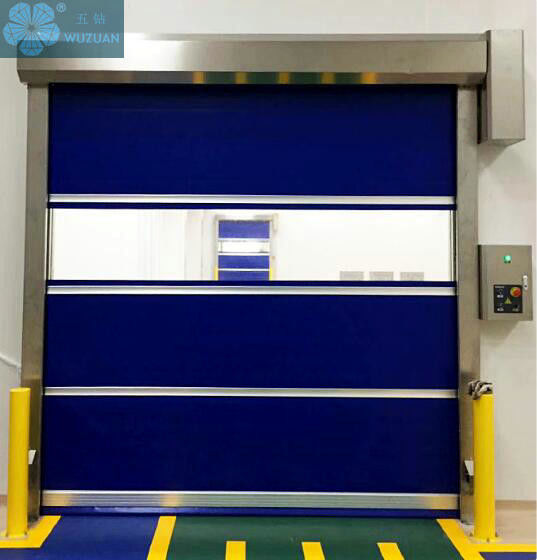

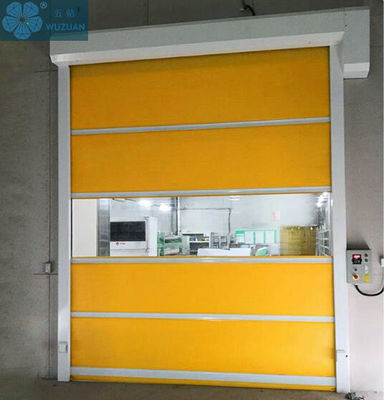

2000mm Width 0.9mm Curtain High Speed Rolling Doors

2000mm Width 0.9mm Curtain High Speed Rolling Doors
2000mm Width 0.9mm Curtain High Speed Rolling Doors
video play

Large Image :  2000mm Width 0.9mm Curtain High Speed Rolling Doors

Product Details:
Place of Origin: China
Brand Name: Wuzuan
Model Number: PHSD-0007
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Packaging Details: wood case or strong paper carton
Delivery Time: 7-15days
Payment Terms: L/C, Western Union, MoneyGram
Supply Ability: 300pcs per month
Detailed Product Description
Material: PVC Fabric Door Frame Material: Stainless Steel / Aluminum Alloy / Power Coated Steel
Color: Blue, Black, WHITE, RED, Yellow, Orange, SKY BLUE, Light Grey Or Customized Pecial Door Type: Automatic Door
Open Style: Rolling Opening Speed: 0.7~1.2m/S
Curtain Thickness: 0.8mm/1.5mm Opening Style: Automatic & Manual
Operation Way: Push Button / Sensor / Radar / Pull Switch Opening Frequency: 1000-1500times/Day
Opening Type: Power Driven Special Function: Dust Proof, Security
Motor: 1.German Sew 2.China Sej / Snma Or Customized Motor Power: 0.75-5.5kw
Standard Motor Position: Left Or Right Application: Mall, Supermarket, Warehouse, Workshop
Type: Entry Doors,Garage Doors,Security Doors,Sliding Doors,industrial Door Size: Customized Size, According To Clients' Specification
Wind Resistence: 25m/S Specification: Maximun Size 6m*6m
Working Temperature: -35 To 65 Celsius Degree Installation Area: Exterior Or Interior
Safety Class: IP55 Emergency Operation: Available With Manual Crank
Operating Life: 50,000 Cycles Operation Switch: Button Switch, Radar Sensor, Magnetic Loop
High Light:

0.9mm Curtain High Speed Rolling Doors


2000mm width High Speed Rolling Doors


2000mm width PVC rolling door

Rolling High Speed PVC Roller Shutter Door High Speed Rolling Door With Controller Loop Sensor


PVC Fast door is a kind of channel isolation door, used in printing, food, pharmaceutical and other factories, with good dustproof, odor-proof, quick opening, heat preservation, protection and other functions.
The door's opening way has the push buttom,motion sensor,induction loop,remote control,pull swith,infrared light curtain and so on.
the door curtain's color can choose red,yellow,orange,black,blue ,grey,transparent and custom other color.


Easy operation
Small installation space
2mm thick cold rolled steel sheets.
Aluminum Lath
High density ryan polyester fabric
transparent PVC
Main Features
Our company offer high speed PVC cartains.
Stock colors for choose: blue, yellow, red, orange, gray, white
Coil width: 1.5mm, coil length: 50m
Curtain thickness:0.9mm, curtain weight: 1100 grams/㎡


Technical Data

Parts Technical data
Application Apply to different areas such as Underground Garage channel,chemical, pharmaceutical, automotive, food processing factories.
Size Width: Min.1250mm~Max.6000mm
Height: Min.2000mm~Max.6000mm
Opening speed 0.8 M/S ~1.2M/S,adjustable
Closing speed 0.6M/S,adjustable
Curtain Made of 0.8 to 1.2mm thickness high density industrial fabric coating.There are white, silver grey, grey, blue, yellow,red colors available.
On the curtain, there are Aluminum wind proof bars
Opening mode Remote control, button, Sensor, Radar, Geomagnetic and so on.
Door Frame Made of zinc galvanized steel, surface finish is powder coated, avoid rust at least 10 years. Thickness is from 2mm. The cover box thickness is 1.5mm
Window PVC
Motor System SEJ, with PLC control system
Control system With LED screen. Fault code can be showed and Password can be set easily.
With power failure memory function
With limit self-repair system
The door can be opened manually if power off
Safety system Sensor.
Safety bottom. The door will stop and go upwards if meet any obstacle during closing.


About Us


Established in 2006, HengTaichang Intelligent gate control technology co., LTD is a leading manufacturer of automatic doors. We are located in Dongguan as known as " factory of the world" , . It is very convenient to all over the world by air or sea.
HengTaichang Is a high-tech company that integrates development, design, production, installation, sales,service and after-sales as one of the professional manufacturers, Over the years, we have designed, developed and manufactured a wide range of automatic doors, such as high speed rolling curtain doors, Industrial sliding door, Rapid metal shutter door, rapid accumulation of doors, silent roller shutter door, commerce crystal folding door, Fire Proof & Blast Proof Door, Hard Rapid Turbo Roller Door, remote control sectional garage door, remote roller shutter window and so on.



F A Q :

1,Are you trading company or manufacturer ?

A: We are factory.
2. What's the payment details?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
3. What's the delivery time?
For common order, about 15 days only.
4. What about the warranty for the doors?
We provide 12 months warranty for all doors and accessories.
5. Do you provide OEM Service?
Yes. OEM & ODM Service is ok for us.
6. What's the MOQ?
We accept 1 set as sample order.
7. How about the package?
Plywood case, suitable for sea freight or air freight, as your request.
