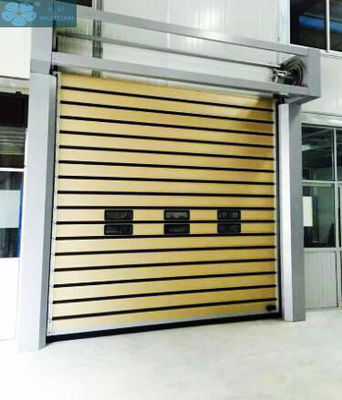

1.2m/S High Speed Spiral Door

1.2m/S High Speed Spiral Door
1.2m/S High Speed Spiral Door
video play

Large Image :  1.2m/S High Speed Spiral Door

Product Details:
Place of Origin: China
Brand Name: Wuzuan
Model Number: SD00026
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD1950-4850 per set
Packaging Details: wood case or strong paper carton
Delivery Time: 8 -15days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 300pcs per month
Detailed Product Description
Material: Galvanized Steel / Stainless Steel Color: Red, Blue, Green, Yellow, Orange, Gray, Black, White, Natural (customizable)
Opening Speed: 0.6m/s-1.2/s (adjustable) Applications: Garage, Supermarkets, Hypermarkets, Warehouses, Loading Docks, Platforms, Laboratories And Pavilions Etc. And Other Quick Passages.
Guide: Double Spiral Turbo Aluminum Rails, Door Rises When No Contact Between The Door And The Connecting Part. Door Frame: Enviromental Quality CNC Bending Galvanized Sheet Molding Thickness 2mm, External Appearance And Dustproof.
The Ways Of Operation: Radar, Geomagnetic Sensor, Bluetooth, Remote Control,manually Switch, Push Button. Wind Resistance: ≤ Grade 12
Filling Material: Polyurethane Foam Power Supply: 1-Phase 220V, Or 3-Phase 380V
Opening Speed: 2.5m/S Max Applicable Area: Both External And Internal
Surface Finishing: Finished Closing Speedt: 1.2m/S Max
Operation: Control Button, Remote Control Or Sensors HS Code: 853080000
High Light:

2000m height High Speed Spiral Door


1.2m/S High Speed Spiral Door


2000m height high speed door

Aluminum Alloy Material High Speed Security Door Spiral Rolling Shutter Fast Door


Spiral insulated industrial doors are new, technologically advanced industrial high speed doors designed to better separate different working areas, characterised by a different acoustic and thermal intensity or intended for different uses.The high product quality is based on aesthetics and high performance in terms of safety and thermal-acoustic insulation.
The spiral high speed doors are ideal both for internal use for the division of departments with different thermo-acoustic characteristics, and for external use ensuring security and weatherproof.

Fields of applications

Fields of applications:

– Civil use, such as garage doors
– refrigeration, requiring maximum thermal insulation and fast opening and closing operations.
– any type of industry that requires air flow between different environments (such as garages and multi-storey car parks), a problem that can be solved by high speed spiral door




1, Excellent quality, reliability and safety, as stated by our patents and certificates
2, Great versatility, flexibility and structural strength
3, Small footprint
4, Noiseless opening and closing system
5, High thermal conductivity
6, Wind resistance
7, Designed to solve different industrial logistics problems
8, No ceiling anchor, unlike traditional sectional doors
9, Simple design
10, No extraordinary maintenance required, just the ordinary maintenance required by the rules in force
11, Easy to install
12, Easy and fast handling operations (means, materials and people)
Motor :
High speed spiral rolling shutter door can be equipped with servo motor and three-phase asynchronous motor, and canprovide domestic or imported motor according to customer requirements.

The advantage of servo motors
1.Accuracy: realizes closed-loop control of position, speed and torque; overcomes the problem of stepping motor out of step
2.The speed: high-speed performance is good, the general rated speed can reach 2000 ~ 3000 rpm
3. Adaptability: It has strong anti-overload capability and can withstand three times the rated torque. It is especially suitable for occasions with transient load fluctuations and quick start.
4. Stable: It runs smoothly at low speed, and does not produce stepping operation similar to stepper motor when running at low speed. Suitable for occasions with high speed response requirement.
5. Timeliness: The dynamics of motor acceleration and deceleration are short, generally within tens of milliseconds.
6.Comfort: heat and noise are significantly reduced.
Detail Information:
Opening Speed 0.7 ~ 2m/s
Interior / Exterior Door Suitable
Material Aluminum Slat, Double Layer with PU Foaming Core
Max Width 7000mm
Min/Max H 1200mm / 7000mm
Door Curtain Thickness 40mm Total thickness
Drive Unit Electric / IP55
Safety Sensor Electric safety edge
Safety photovell
Control voltage 24V DC
Motor Brand SEW German
Servo System China
Control Brand Mitsubishi Japan
Servo China
Command System Remote control, Radar sensor, Floor sensor, Rope switch, Key cards etc
