Dongguan Hengtaichang Intelligent Door Control Technology Co., Ltd.
Home ProductsPVC Roller Shutter Doors

Automatic 1.2m/S 5m Width Security Shutter Doors

China Dongguan Hengtaichang Intelligent Door Control Technology Co., Ltd. certification
China Dongguan Hengtaichang Intelligent Door Control Technology Co., Ltd. certification
I'm Online Chat Now

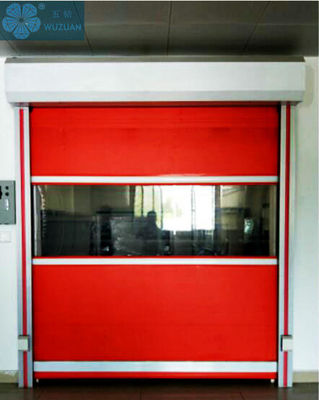

Automatic 1.2m/S 5m Width Security Shutter Doors

Automatic 1.2m/S 5m Width Security Shutter Doors
Automatic 1.2m/S 5m Width Security Shutter Doors
video play

Large Image :  Automatic 1.2m/S 5m Width Security Shutter Doors

Product Details:
Place of Origin: China
Brand Name: Wuzuan
Model Number: PHSD-0003
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Packaging Details: wood case or strong paper carton
Delivery Time: 7-15days
Payment Terms: L/C, Western Union, MoneyGram
Supply Ability: 300pcs per month
Detailed Product Description
Material: PVC Fabric Door Frame Material: Stainless Steel / Aluminum Alloy / Power Coated Steel
Color: Blue, Black, WHITE, RED, Yellow, Orange, SKY BLUE, Light Grey Or Customized Pecial Door Type: AUTOMATIC DOOR
Opening Speed: 0.7~1.2m/S Open Style: Rolling
Curtain Thickness: 0.8mm/1.5mm Opening Method: Automatic
Motor: 1.German Sew 2.China Sej / Snma Or Customized Motor Power: 0.75-5.5kw
Standard Motor Position: Left Or Right Application: Mall, Supermarket, Warehouse, Workshop
Open Style: Automatic & Manual Type: Entry Doors,Garage Doors,Security Doors,Sliding Doors,industrial Door
Size: Customized Size, According To Clients' Specification Opening Style: Automatic & Manual
Operation Way: Push Button / Sensor / Radar / Pull Switch Opening Frequency: 1000-1500times/Day
Opening Type: Power Driven Special Function: Dust Proof, Security,high Speed
Wind Resiste: 25m/S Specification: Maximun Size 6m*6m
Working Temperature: -35 To 65 Celsius Degree Installation Area: Exterior Or Interior
Emergency Operation: Available With Manual Crank Safety Class: IP55
Operating Life: 50,000 Cycles Operation Switch: Button Switch, Radar Sensor, Magnetic Loop
High Light:

1.2m/S Security Shutter Doors

,

5m width Security Shutter Doors

,

5m width metal roller shutter

Industrial Automatic PVC Fabric High Speed Performance Fast Acting Rapid Rise Overhead Quick Roll up or Roller Shutter Door for Warehouse Exterior or Interior


By drawing lessons from foreign advanced technology and integrating the advantages of domestic products in the same industry,
PVC High speed rolling door is basically one of the high-tech products independently developed.It has the functions of quick opening and closing, improving work efficiency,
saving energy, preventing mosquitoes, wind and dust, odor and lighting.It is specially designed and manufactured for the internal workshop,
the sanitary environment and the high frequency logistics channel.



What is the charactor of automatic high speed pvc door?

1)Easy cleaning for their stainless steel frame.
2)Less air consumption with double door frame. The inner frame is close to the door curtain and the rubber bottom has the best sealing charactar.
3)Less bacteria growth for the best sealing solution without brush in the frame.
4)More durable due to the stainless frame material especially for pharmacy , food industry.
5)More softer inner frame ensures less-wear.
6)Controlling box with the screen-display.


Fast door motor:

High frequency start and stop fast door motor, 380V or 220V  or 110V / 50HZ or 60HZ ,0.75KW / 1.1KW / 1.5KW

Servo control box:

Servo system control box, international electrical safety standard

Curtain wind strip:

T60 high-strength oxygen-resistant aluminum alloy wind-resistant strip, unique noise-reducing structure, can resist 8 winds

Title goes here:

The use of Baosteel's cold steel plate with a thickness of 2.0mm indicates that the use of outdoor special weather resistant imported plastic powder electrostatic spraying.

Pvc curtain:

PVC double-coated wear-resistant base fabric, thickness 0.9mm

Safety protection:
Photoelectric sensor. When there is a person or vehicle under the door, the door will stop closing and automatically rise. This can avoid accidental collisions.
Radar sensing:
When objects inside and outside the door enter the sensing area, the door automatically opens, and when objects leave the sensing area, the door automatically closes, and the sensing is sensitive and fast.
Encoder limit switch:
Multi-turn absolute encoder limit, clock-like principle design, ultra-high precision.

Main Features:
Using location Internal/External Door
Door curtain material 0.8 mm thick PVC with transparent PVC stripe
Door frame Standard galvanized steel(option: 304 stainless steel)
Door control system Servo control system
Self Trouble-Shooting Recognizing system
Door designing Designed for a long run and reasonable price
Door operation High frequency motor with converter
Safe Equipment Beep, Anti-wind Bar, Traffic Light, Wireless safety Edge
Motor location on both sides are ok
Safety equipments Standard light barriar
Door max size 5m(W)x5m(H)
Wind load max 11m/s
Opening speed 1.2m/s
Closing speed 0.6m/s
Option induction loop, radar, pull-cord, push button, remote control




Why Choose Us?

Over the years, our company has been working with the well-known manufacturers work closely with gated, has introduced the latest and most sophisticated production equipment of various volumes gate. The use of superior Quality raw materials and high-quality components, and adhere to the " excellence, precision production" product concept, to ensure the production of a variety of beautiful rolling door products Generous, easy operation, security, security, durability, quality assurance. We spirit of "honesty, quality first, customer first, service leader," the case Purpose, passion for the community to provide the safest customers the best a variety of roll gates, but also provide comprehensive maintenance service.

Customers satisfaction is our eternal goal. We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.





F A Q :


1,Are you trading company or manufacturer ?

A: We are factory.
2. What's the payment details?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
3. What's the delivery time?
For common order, about 15 days only.
4. What about the warranty for the doors?
We provide 12 months warranty for all doors and accessories.
5. Do you provide OEM Service?
Yes. OEM & ODM Service is ok for us.
6. What's the MOQ?
We accept 1 set as sample order.
7. How about the package?
Plywood case, suitable for sea freight or air freight, as your request.
