1600mm Height 15m/Min Stainless Steel Retractable Sliding Gate

China Dongguan Hengtaichang Intelligent Door Control Technology Co., Ltd. certification
China Dongguan Hengtaichang Intelligent Door Control Technology Co., Ltd. certification
I'm Online Chat Now

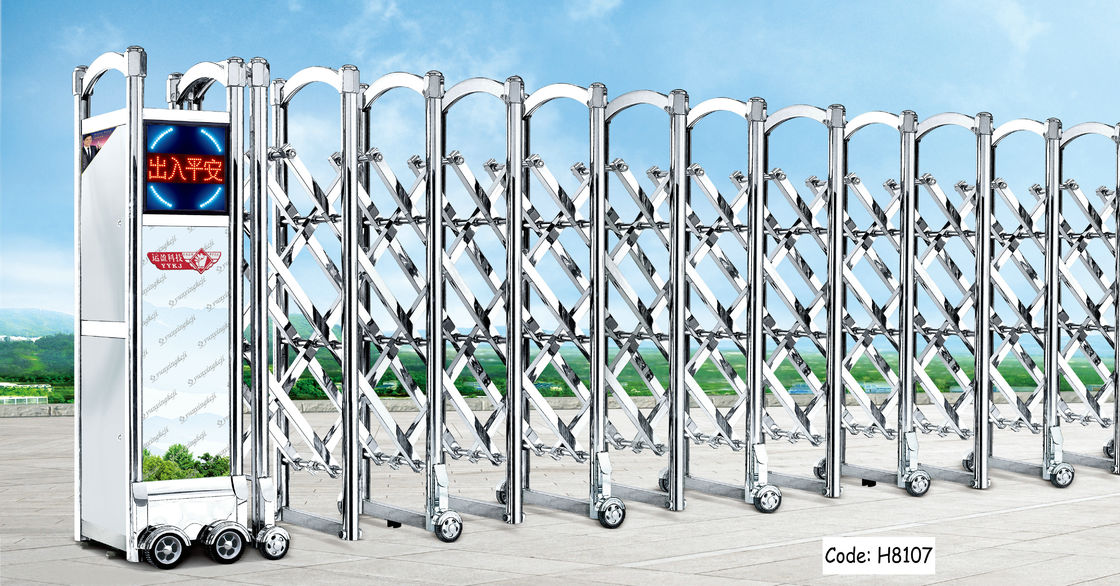

1600mm Height 15m/Min Stainless Steel Retractable Sliding Gate

1600mm Height 15m/Min Stainless Steel Retractable Sliding Gate
1600mm Height 15m/Min Stainless Steel Retractable Sliding Gate 1600mm Height 15m/Min Stainless Steel Retractable Sliding Gate

Large Image :  1600mm Height 15m/Min Stainless Steel Retractable Sliding Gate

Product Details:
Place of Origin: China
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Packaging Details: wood case
Delivery Time: 7-15days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 500pcs sets per month
Detailed Product Description
Material: Stainless Steel Color: Natural Or Customized
Open Style: Retractable Opening Pattern: Automatic
Surface Treatment: Polished Gate Height: 1.6m / Customized
LED Screen: Customized Your Logo / Words Alarm Lighting: Optional
Gate Motor: Track Motor Or Trackless Motor Application: Hotel, Villa, Apartment, Office, Building, Hostial, School,sports Venues,mall,supermarket,warehouse,Workshop,Park,Countyard
High Light:

15m/Min Retractable Sliding Gate

,

1600mm Height Retractable Sliding Gate

,

1600mm Height automatic retractable gate

Exquisite Stainless Steel Industrial Telescopic Door



1600mm Height 15m/Min Stainless Steel Retractable Sliding Gate 0



Gate Height 1600mm (Customized Height)
Gate Width 680mm
Wheel Base 600mm (center-center)
Appearance Three column linkage system net shape structure
Surface Treatment 8K Polished Finishing
Power Voltage AC220V±20% 50Hz; AC110V±10% 60Hz
Moving Speed 15-19m/min
Remote Control Distance ≤50m
Verticle Pillars Material 25 x 50 x 0.6mm
Cross Parts Material 44 x 34 x 0.5mm
Working Temperature: -30--+70°C
LED display Input rolling words, and Static state display. With date & time available
Widely useful for Hotel, villa, Apartment, Office, Building, Hostial, school,sports venues,mall,supermarket,warehouse,Workshop,Park,Countyard



1.Motor Overheating Protection: The motor will automatically power off and enter protection status when the

temperature reaches some degree, and it will work normally again after the temperature turn low.



2.Speed Clutch: When the power cut off, only use the key rotating 180 degree then the clutch will keep

apart, and now the gate can be manually opened.



3. Infrared Anti-Collision Device: If there is pedestrian or vehicle during closing process, the gate will automatically stop 30 or

40cm away to avoid collision.



4. Anti-Climb Alarm: If there is anyone climbing over it, it will alarm automatically.(Optional)



5. Remote Control; Easy operation of opening gate and distance is less than 50m.



6. Drive and Driven Wheel: With die-casting Al-alloy material for drive and driven wheel and imported rubber to make the system of wear resistance, noise

free and long service life.



7.Machine Head: The professional motor of automatic gate and thickening base board increase its weight and

traction. The four wheel drive and chain driven make the system buffering and smooth start and stop. The

head is also double sealed in whole to prevent dust and humidity to prolong its life.



8. Gate Material is with high strength polished stainless steel, with strong quality in hardness,

anti-rust and anti-collision.



9.Gate vice part material is high strength Al-alloy and the hole is punching pressed by professional ironware mould with PA wear sets, everyone of which

also includes stainless steel pad to avoid friction or noise. Door-Axis core material is φ16*1.0mm pure stainless steel with black plastic tube outside to make it beautiful but

practical.



10. All plastic spare parts are imported to ensure its long term durability (with over 10 years used life).



11.There are fixed 8 digits display LED screen or rolling LED screen with 500 digits available for choice

( standard for 8 digits LED screen)


1600mm Height 15m/Min Stainless Steel Retractable Sliding Gate 1

1600mm Height 15m/Min Stainless Steel Retractable Sliding Gate 2



1600mm Height 15m/Min Stainless Steel Retractable Sliding Gate 3

1600mm Height 15m/Min Stainless Steel Retractable Sliding Gate 4



1600mm Height 15m/Min Stainless Steel Retractable Sliding Gate 5
