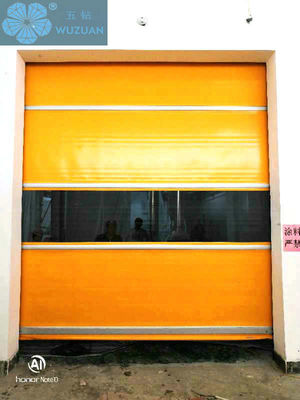

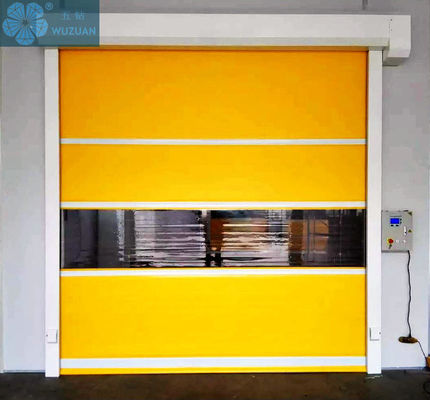

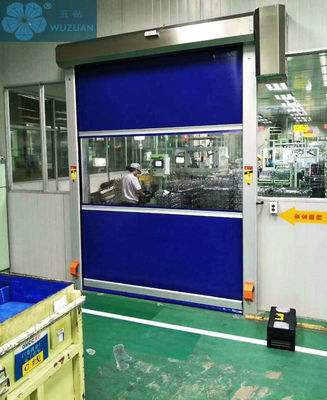

Remote Control 1.5KW 95mm Bottom Bar Steel Security Shutters

China Dongguan Hengtaichang Intelligent Door Control Technology Co., Ltd. certification
China Dongguan Hengtaichang Intelligent Door Control Technology Co., Ltd. certification
I'm Online Chat Now

Remote Control 1.5KW 95mm Bottom Bar Steel Security Shutters

large.img.alt
large.img.alt
video play

Large Image :  Remote Control 1.5KW 95mm Bottom Bar Steel Security Shutters

Product Details:
Place of Origin: China
Brand Name: Wuzuan
Model Number: PHSD-00014
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Packaging Details: wood case or strong paper carton
Delivery Time: 7-15days
Payment Terms: L/C, Western Union, MoneyGram
Supply Ability: 300pcs per month
Detailed Product Description
Material: PVC Fabric Door Frame Material: Stainless Steel / Aluminum Alloy / Power Coated Steel
Color: Blue, Black, WHITE, RED, Yellow, Orange, SKY BLUE, Light Grey Or Customized Pecial Door Type: Automatic Door
Open Style: Rolling Opening Speed: 0.7~1.2m/S
Curtain Thickness: 0.8mm/1.5mm Opening Style: Automatic & Manual
Operation Way: Push Button / Sensor / Radar / Pull Switch Opening Frequency: 1000-1500times/Day
Opening Type: Power Driven Special Function: Dust Proof, Security
Motor: 1.German Sew 2.China Sej / Snma Or Customized Motor Power: 0.75-5.5kw
Standard Motor Position: Left Or Right Application: Mall, Supermarket, Warehouse, Workshop
Type: Entry Doors,Garage Doors,Security Doors,Sliding Doors,industrial Door Size: Customized Size, According To Clients' Specification
Wind Resistence: 25m/S Specification: Maximun Size 6m*6m
Working Temperature: -35 To 65 Celsius Degree Installation Area: Exterior Or Interior
Safety Class: IP55 Emergency Operation: Available With Manual Crank
Operating Life: 50,000 Cycles Operation Switch: Button Switch, Radar Sensor, Magnetic Loop
High Light:

1.5KW Steel Security Shutters

,

95mm Bottom bar Steel Security Shutters

,

95mm Bottom bar speed shutter door

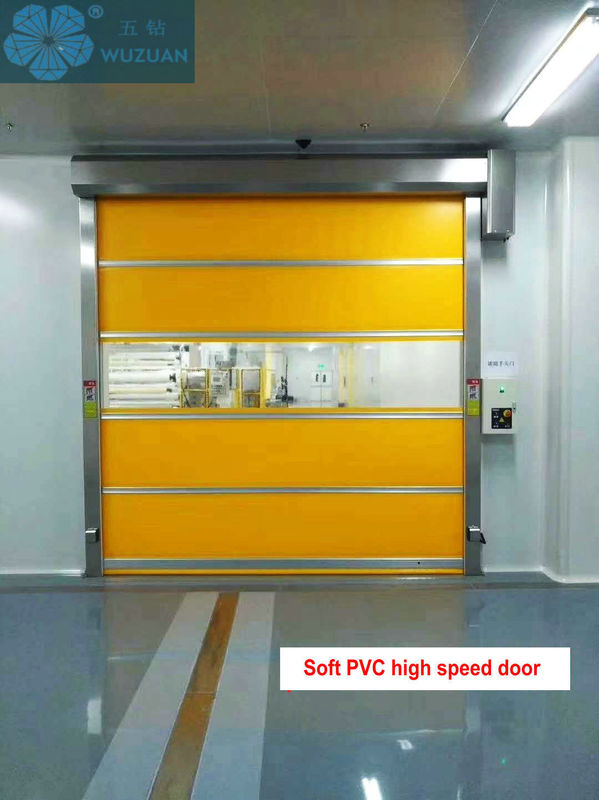

Variety of Colors PVC Remote Control Automatic Industrial High Speed PVC Rolling Shutter Doors



High speed shutter door, also called fast soft door,which is a barrier door with rapid rise and fall.And its main function is quickly isolation, thus to ensure the air quality of the workshop without dust. High speed shutter door has the functions of heat preservation, cold preservation, insect-proof, windproof, dust proof, sound insulation, fire proof, anti odour, day lighting and so on. It is widely used in food, chemistry, textile, electronics, supermarket, freezing, logistics, storage and other places. It can meet the need of high performance logistics and clean place, saving energy for shutting down automatically. What’s more, it can improve working efficiency, create better working environment and so on.



Features:
1. High intensity fire insulation, sound insulation, spray the surface corrosion.
2. Install tamper device, effectively protect your property.
3. Bearing pulleys easy adjustment to ensure smooth lifting process without noise
4. Double security guards, fall protection + anti-fracture "
5. Using frequency: 2000 times a day
6. Convenient to operate
7. Visible window available



Detail information:



Rapid PVC Door Grey,Yellow grid,Purple,Green,Light green,Black,Perforated Yellow grid,White,Blue,White grid,Sky Blue,Yellow,Orange,Red

Color curtain:0.8mmthickness. Transparent curtain:1.2mm.

Function:insect prevention

Reinforce girder
Aluminum alloy 45mm width.
Function:reinforce the curtain and wind resistant

Bottom bar
Aluminum alloy 95mm width
Function:reinforce the crutain to keep the door opening without a hitch

Radar sensor
The place on the cover box. Can detect 3 meters area!
Function: detect the moving thing and open the door.
For the place which has more people through.

Photocell sensor
Function:It's stop the door when the door is closing and someone through the door.
Drive System High speed door motor: Germany brand(SEW)and Our own brand Hofic.
Germany SEW motor(380V/220V 50Hz 0.75KW,1.5KW,2.2kw.) Our own brand Hofic(380V/220V 50Hz 0.75KW,1.5KW,2.2KW)
Control System Control box:Include control system+PLC+transducer+encoder+airbag system.
Brand:Japan Mitsubishi and Our own Hofic
Function: all the control system are inside in it.
Cover Box Material: Stainless steel201#or304#
To avoid corrosive thing corrode the roll and dustproof
Opening Way Radar sensor+push button for People through

Magnetic loop+push button for forklift through


About Us



Established in 2006, HengTaichang Intelligent gate control technology co., LTD is a leading manufacturer of automatic doors. We are located in Dongguan as known as " factory of the world" , . It is very convenient to all over the world by air or sea.

HengTaichang Is a high-tech company that integrates development, design, production, installation, sales,service and after-sales as one of the professional manufacturers, Over the years, we have designed, developed and manufactured a wide range of automatic doors, such as high speed rolling curtain doors, Industrial sliding door, Rapid metal shutter door, rapid accumulation of doors, silent roller shutter door, commerce crystal folding door, Fire Proof & Blast Proof Door, Hard Rapid Turbo Roller Door, remote control sectional garage door, remote roller shutter window and so on.





F A Q :


1,Are you trading company or manufacturer ?

A: We are factory.
2. What's the payment details?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
3. What's the delivery time?
For common order, about 15 days only.
4. What about the warranty for the doors?
We provide 12 months warranty for all doors and accessories.
5. Do you provide OEM Service?
Yes. OEM & ODM Service is ok for us.
6. What's the MOQ?
We accept 1 set as sample order.
7. How about the package?
Plywood case, suitable for sea freight or air freight, as your request.
